GPON device ZTE OLT

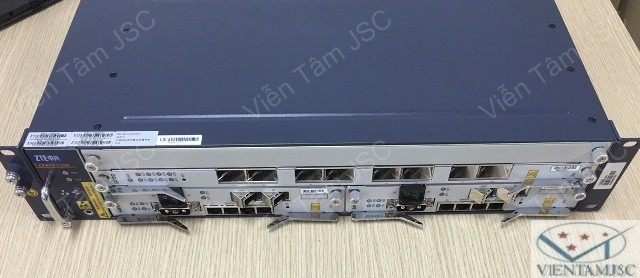

ZTE ZXA10 C320, a small size, full-service optical access convergent platform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

• Unified platform for GPON,XG-PON1 and P2P
• Small size and compact design, flexible network and fast deployment
• 2U frame with 2 service slots, compatible with ZXA10 C300 line cards
• Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
• Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
• High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ UAPS/STP/ERPS for uplink
• Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
• Support DC input redundancy
• Support AC power supply
• Support 1:1 protection for PON interfaces
• Support 1:1 protection for SW (core card) card
• Support 1588V2 and Synchronous Ethernet
• Support embedded OTDR in SFP

• System Architecture
  • Capacity
    • GPON up to 32 ports
    • Uplink interfaces up to 4 *GE (Optical )+2*GE(Electronic) or 2*10GE(Optical )+2*GE(Optical ) +2*GE(Electronic)
  • Chassis Configuration (19”)
    • Total 5 slots
    • 2 slots for universal line cards
    • 2 slots for switch& control cards
    • 1 slot for fan module
  • Subscriber Card Density
    • GPON card: 8/16 ports per card
    • XG-PON1 card: 8 ports per card
    • P2Pcard: 24/48 ports per card
  • Uplink interface card
    • 1*10GE optical port ( Configurable 1*GE optical port)
    • 1*GE optical port
    • 1*10 M/100 M/1000 M electrical Ethernet port
  • Common interfaces
    • 1*environment detecting interface
    • 1*management interface
    • 1*maintenance serial interface
• PON Features
  • GPON compliant with ITU G.984.x
  • P2P compliant with ITU G.985/G.986
  • XG-PON1 compliant with ITU G.987.x and G.988
  • Support 1:128 optical split ratio for xPON
  • Support OLS (Optical Laser Supervising )
  • Max logical reach: 60km
  • Max physical reach: 20km
  • Max link difference: 20km
  • High-efficient DBA: NSR-DBA,SR-DBA
  • Synchronous Ethernet
  • GPON Transceiver power: Class B+ or class C+
  • XG PON1 Transceiver power: Class N1 and N2a
  • Type B and type C optical uplink protection
  • Support FEC
  • Support AES128
  • Support SCB
  • GPON MCM(Multi-Copy Multicast)
  • Support 1550nm for third party CATV broadcasting
• L2/L3 Features
  • 4K VLAN
  •  1:1/N:1 VLAN
  •  802.1ad, SVLAN, Selective QinQ, VLAN stacking
  •  Line-rate forwarding
  •  STP/RSTP/MSTP compliant to IEEE 802.1d/802.1w/802.1s
  •  UAPS/EAPS/LACP protection
  • Link aggregation IEEE 802.3ad
  • L3 routing:
    • 12K IPv4 routing forwarding entries
    • IPv4 and IPv6 statistic routing
  • Multicast – IPTV
    • 1K Multicast groups
    • IGMP Snooping and proxy (v1/v2/3)
    • MLD V1/ V2，snooping/proxy
    • MVLAN: 256
    • Channel Access Control (CAC),
    • Preview (PRV) and Call Detail Record (CDR) for IPTV
    • Less than 50ms channel zapping delay
  • QoS
    • 8 queues per port
    •  Queue & scheduling mechanism: SP, WRR, SP+WRR
    • IPv4 DSCP Diffserv
    • Stream classification, rate limiting, shaping and priority setting
    • Traffic statistics
    • WRED and triple color
    • SLA: CIR, PIR, EIR
• Security
  • L2- L4 ACL
  • IP and MAC source guard
  • Resistance against DOS attacks
  • MAC/IP anti-spoofing (MAC binding, IP binding, DHCP snooping)
  • Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression
  • MAC address number limit based on VLAN or GEM-port
  •  Port mirroring
  • User port identification such as PPPOE+ and DHCP Option 82
• O&M
  • Operator security, Multi-privileged operator, SSH, FTP/TFTP, ACL
  •  Management protocol and interface: CLI, Telnet ,SNMP V1/V2C/V3, MIBII
  •  Remote firmware download and upgrade
  •  Environment detecting, control and alarm
• Environment
  • Operating temperature: --40°C ~65°C
  •  Operating humidity: 5% ~ 95%
  • Air pressure: 70 kPa - 106 kPa
• Power Supply
  • DC: -48V+/-20%，-60V+/-20%;
  • AC: 100V~240V
• Dimensions
  • 86.1mm (H) * 482.6mm (W) * 270mm (D) (19 inch shelf)
  • 2200 mm (H) x 600 mm (W) x 300 mm ((D) (Rack)
  • 1035 mm(H) x 770 mm(W) x 460 mm(D) (Outdoor Cabinet)
