Overview

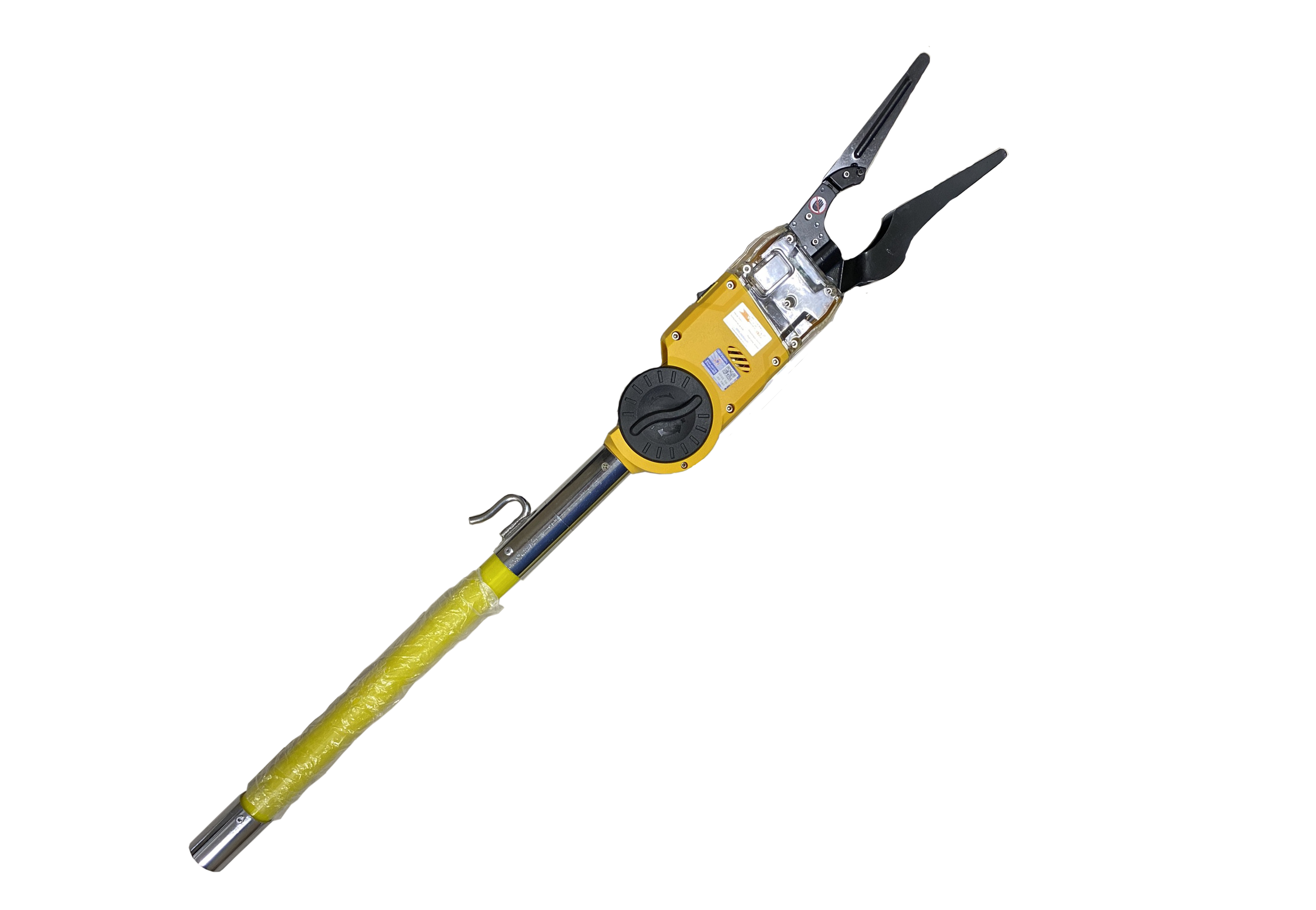

Automatic cable bundling device VT-42CSM is used for wire workers when needing to tie cables without having to climb up high by strapping the remote control. This tool can automatically complete all the steps of cable strapping and can be widely used in the field of communication engineering, working at height, to replace traditional manual strapping cables.
Feature
- Automatic cable bundling device VT-42CSM is used to tie cables, compact overhead cables without having to climb dangerously.
- The device includes the following parts: container, connecting rod, body, cutter, full function remote, steel coil, adapter charger, battery and remote mount.
- The connecting rod has a length of 0.92m/pipe, made of fiberglass reinforced eboxy, with 10kV insulation.
- The full-function remote can adjust the number of turns, the tightness of the loop and display the number of loops wrapped.
Specifications
|
Model
|
VT-42CSM
|
|
Fastening range:
|
8-58mm
|
|
Weight:
|
9 KGS
|
|
Steel wire diameter:
|
0.85mm
|
|
Knot length:
|
700-750mm
|
|
Number of knots:
|
1500 knots
|
|
Voltage:
|
12.8V
|
|
Knotted time:
|
0.8s
|
|
Charging time:
|
1.5 h
|
|
Battery capacity:
|
Battery capacity: 6600 mah .fully charged works more than 1500 times,tied about 3 km.
|
|
Insulated connecting rod:
|
It can insulate up to 10 KV voltage, it is composed of fiberglass reinforced epoxy resin pipe. Length is 0.92 m per tube
|
|
Steel coil:
|
Length 110m, diameter 0.8mm, limited to one time 700-750mm once in about 2km.
|
|
Remote control:
|
20m distance, high wall penetration effect.
|
Product Documentation
User manual:
Please contact us for more detailed information.
Hotline: 0913.532.536 - 0913.620.622
Email: info@vientam.vn
