Overview

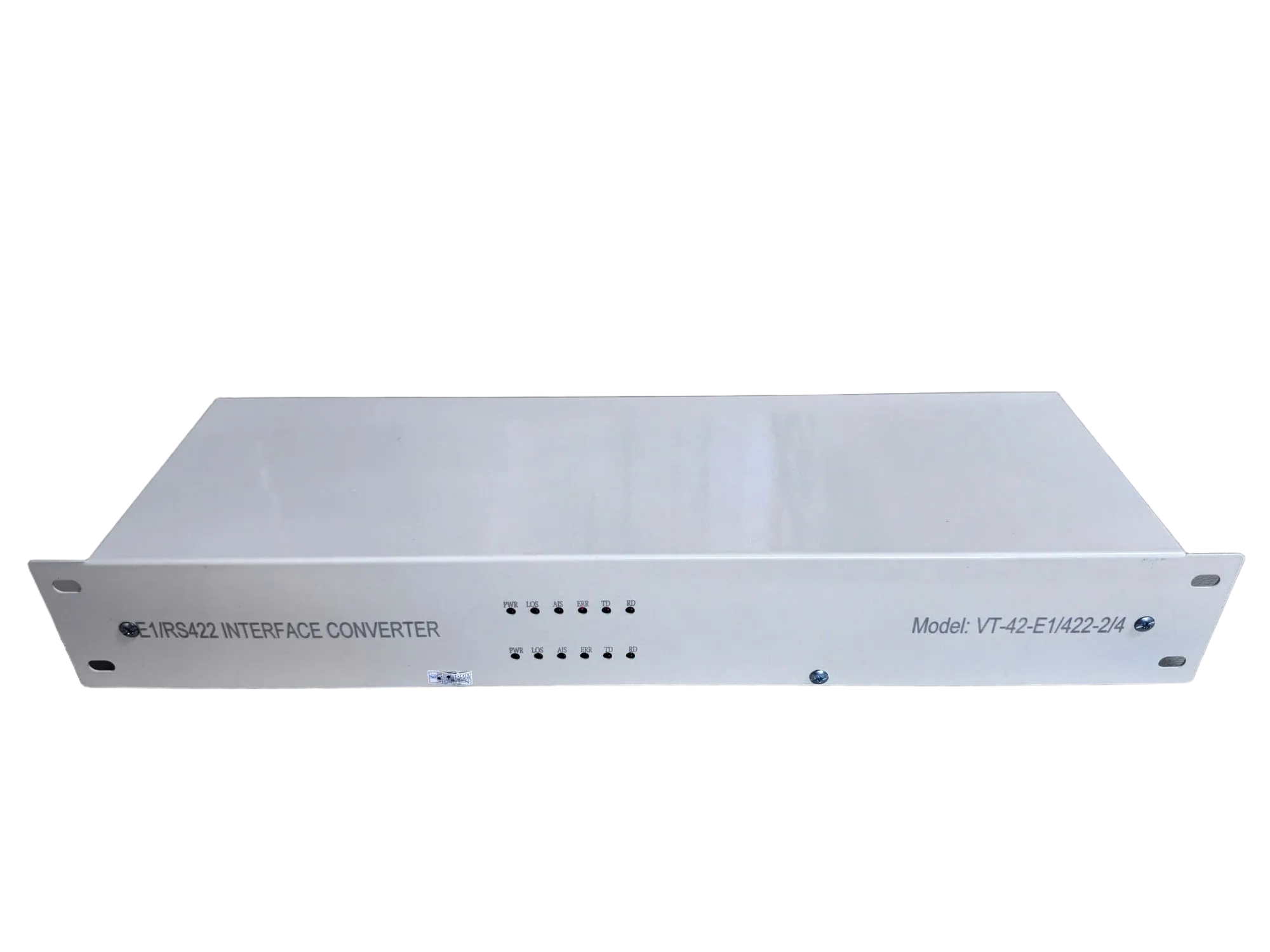

The E1/RS422 interface converter is a dedicated converter that connects and converts bidirectional signals between RS422 serial port and E1 interface. With a data transmission rate of 2.048 Mbps, the device ensures high performance and stability during transmission.
Feature
- Support 4 RS422 serial port and 2 E1 port
- Support signal indication of E1 port data, E1 port loss of synchronism and upstream alarm
- Support optional clock: internal clock, external clock, recovery receiving clock
- Support E1 port loopback
- wo optional power supplies: 220VAC or -48VDC
- Support -25～ 70℃ wide operating temperature range
Specifications
| E1 port |
- Interface Protocol Standard: Complies with ITU-T G.703 recommendation
- Output Jitter Transfer: Complies with ITU-T G.735
- Input Jitter Tolerance: Complies with ITU-T G.823
- Line Rate: Bidirectional 2.048 Mbps synchronized data
- Transmission Distance: 2 km
- Clock Recovery Accuracy: ±50 ppm
- Interface Code Pattern: HDB3
- Frame Format: Unframed
- CRC Check: No
- Clock Frequency: 2.048 MHz
- Interface Connection: BNC, RJ45
- Interface Impedance: 75Ω unbalanced (BNC) and 120Ω balanced (RJ45)
- Interface Protection: 1500V Electromagnetic isolation
|
| RS422 port |
- Standard: EIA RS422
- Transmission Rate: 0 – 115200 bps
- Line Code: NRZ
- Interface Type: DB25 Female (comes with a DB25 male to DB9 female cord)
- Interface Protection: 600W surge protection, 15KV electrostatic protection
|
Signal Indicators
|
- Power indicator
- E1 loss-of-synchronization alarm indicator
- E1 link full-code alarm indicator
- E1 link interference alarm indicator
- Data receiving from G.703 network indicator
- Data sending to G.703 network indicator
|
| Power Supply & Operating Environment |
- Power Supply: 220VAC or -48VDC
- Power Consumption: 2.00W
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% - 95% (non-condensing)
|
| Physical Characteristics |
- Case: metal
- Dimensions (W x H x D): 440mm × 140mm × 70mm
- Installation: Desktop or 19-inch rack
- Weight: 2kg
|
| Certifications |
CE, FCC, RoHS |
