Fast Connector 8802 SC-APC

Overview

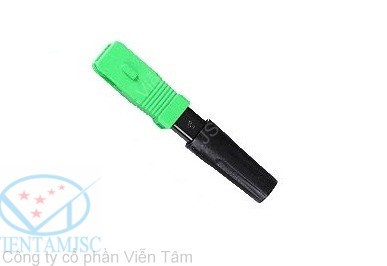

Fast Connector 8802 SC-APC

Connector Size: 9.3 x 0.3 x 57.4 mm

Color: Green black

Material: Zirconia Ceramic

Suitable fiber diameter: 125 µm

Suitable fiber optic housing diameter: 250 µm hoặc 900 µm

Average insertion loss(IL): < 0.3 dB

Hotline: 0913.532.536 - 0913.620.622

Email: info@vientam.vn

Specifications

Fiber diameter 125 µm
Yarn sheath diameter 250 µm or 900 µm
Average insertion loss (IL) ≤ 0.3 dB
Average reflection loss(RL) ≥ 55 dB
FRP cable sheath holding force [2.0 x 3.0 mm] ≥ 40 N
Materials for making the main joint Engineering thermoplastic with aluminum alloy composition
Working temperature -40 to +85 °C
Loss due to temperature change Loss variation 0.2 dB, temperature from -40 to +80 °C
Loss due to plug change 500 times Change attenuation 0.2 dB, ensure insertion loss IL 0.5 dB
Reusability ≤10 times, with correct technique
Size 9.3 x 0.3 x 57.4 mm
Material / Color Zircronia ceramic/Green black
