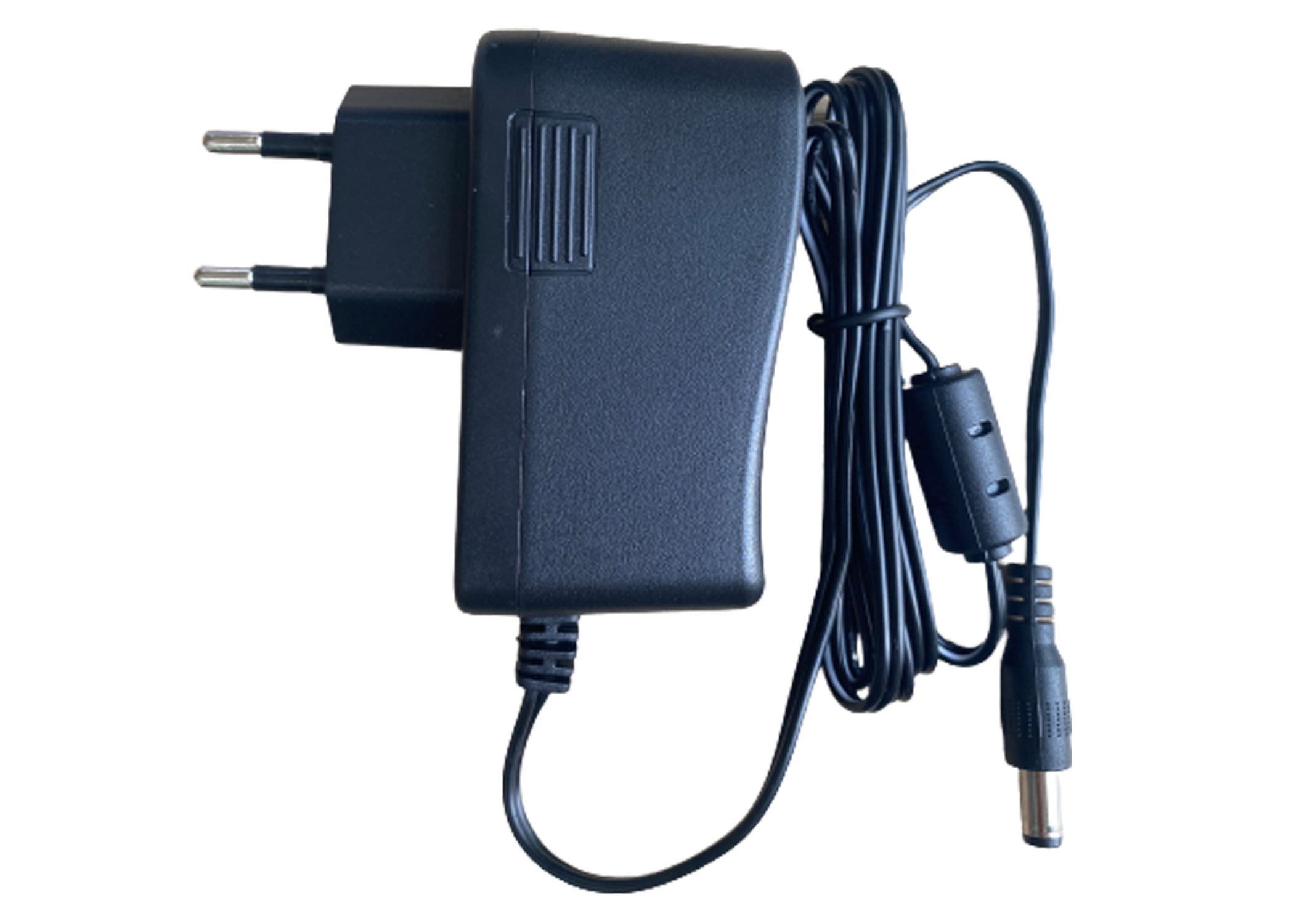

VTA-1215A-G Power Supply Adapter

Feature

Ensure power supply for equipment to operate stably when providing 24/7 service
Make sure not to affect the device when there is a power outage or continuous on and off
With input overvoltage protection ≥3KVA@8µs/20µs (MOV)
The output overvoltage protection threshold of the Adapter is in the range from 120% to 150%
Output over-current and short-circuit protection: The adapter will stop working when operating in over-current, short-circuit protection mode and work again when the output is no longer over-current or short-circuited
Nominal current of the adapter: is the value of the adapter's current stable operation when the output load current reaches ≥250% of the average load current of the device when fully serviced
Insulation between input (AC) and output (DC): ≥ 1.5kV, leakage current < 0.25mA: (at least 3s withstand test)
Insulation Resistance: min 100MΩ(Input to Output, DC 500V)
Standards: EN61000-4-4, EN61000-4-5, IEC60950.

Model	VTA-1215A-G
Technology	Switching
Rated Power	18W
Efficiency	≥ 92%
AC Input
Input Voltage Range	90 ~ 264 VAC (rated voltage 100 to 240VAC)
Frequency Range	40 ~ 80Hz (rated frequency 50/60Hz)
Power In (AC) Plug	2 pins or 3 pins, round or flat pins
Input overvoltage protection	≥ 3KVA@8µs/20µs (MOV)
Input current limit	≤ 500mA
Inrush Current	Max 30A
DC Output
Output voltage	12V DC ( Nominal DC Voltage )
Output current	1.5A ( Nominal DC Current )
Voltage Tolerance Limit	±5%
Overvoltage when power off	≤110% output voltage
Output overvoltage protection threshold	120% -> 150%
Overcurrent withstand capacity	≥ 150% of rated load current
Output jack DC	Round pins 5.5x2.1x10
DC Power Cable	Length 1m ~ 1.8m (1.0m, 1.2m, 1.5m, 1.8m), default 1.5m
DC Power Cable	Flexible double wire, copper conductor crosssection suitable for rated power (≤6A/mm2)
Output ripple voltage	≤ 120mV p-p
Environmental Performances
Operating temperature	-10ºC to 70ºC
Storage temperature	-20ºC to 80ºC
Operating and storage humidity	≤ 95% non-condensing
