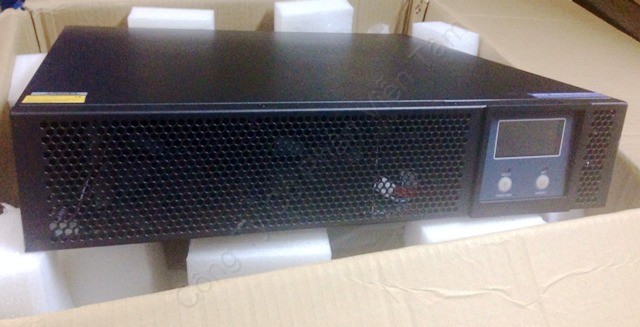

Inverter

MODEL

LI10N-H/INV.

LI20N-H/INV.

LI30N-H/INV.

Capacity VA/ Watts

1000V/800W

2000V/1600W

3000V/2400W

DC Input

Input Voltage

48Vdc

Input Current

25A

50A

75A

Turn-off Voltage

40～60V（No-load），38.5～60V（Full-load）

Turn-on Voltage

40～60V

Reflected noise

Reflected Relative Wide Band Noise Current＜10%

Reflected Relative Psophometrically Weighted Noise Current＜1%

AC Input

Bypass Voltage

220Vac

Input Current

4.5A

9A

13.6A

Frequency

46～54Hz

AC Output

Output Voltage

220Vac

Output Current

3.6A

7.2A

10.8A

Frequency

50Hz

Waveform

Sine-wave

THD

≤3%（Linear-Load）

Output Power Factor

0.8

Efficiency

80%

Transfer Time

AC-DC

≤10ms

DC-AC

≤4ms

DC Start

Yes

Protection

Over Load

＞125% for 10min,＞150% for 10s,＞170% for 200ms

Short Circuit

Circuit protection, no output for 0ms,restart inverter after circuit removal, output Voltage recover

Battery Abnormal

Shutdown protection(or transfer to bypass)

Over Temperature

＞90℃,transfer to bypass

Output Abnormal

Inverter auto lock(or transfer to bypass)

Rj45

Network/FAX/MODE surge protection

Auto re-start

Yes

Software start/shut down

Yes

Crest Factor

≥3 ∶1

Display

LCD

Input/output voltage, output frequency, battery capacity, load, temperature

Voice/LED

Mains abnormal, battery voltage over/low,over load, inverter fault

Alarm

Mute

Manual

Noise

At 1m

＜50dB

Dimension
/Weight

Dimention(W×L×H）mm

430×450×88mm/2U

Weight （kg）

12.5

14.5

15.5

Environment

Temperature

-15～45℃

Humidity

＜95% non-condensing

Altitude

＜1000m no derating, ＞1000m derate 1% per100m

Storage Temperature

-15～45℃

Interface

Type

Graphical interface, true RS-232 communication port

Function

Inverter/Mains status, mains abnormal, Battery low, Remote shut down, Menu operation

Optional

SNMP, USB/EPO,RS485/ Dry contact

Safty Standard

CE、IEC 62040-1
