Overview

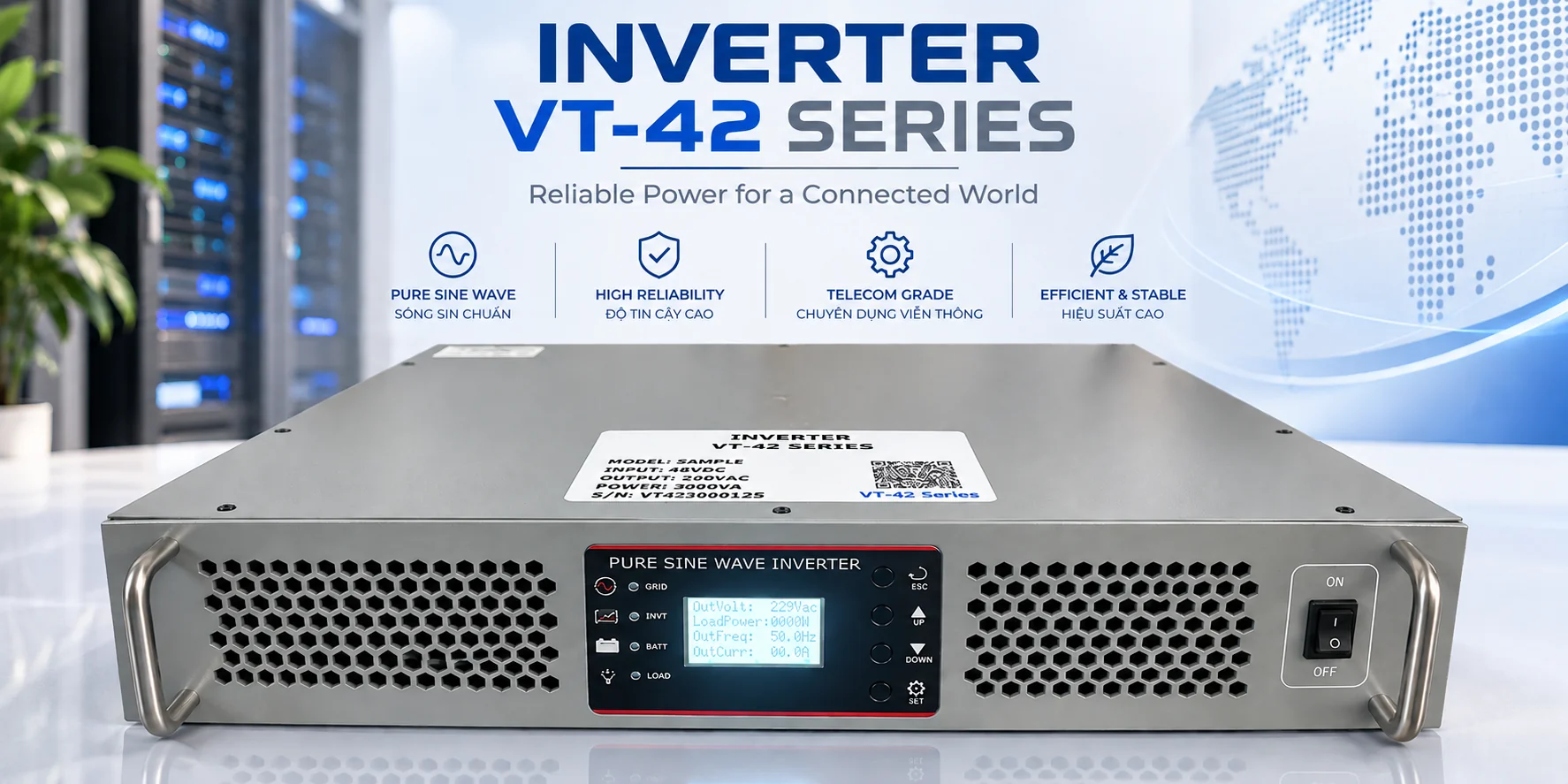

The VT-42-INV Series is a DC-to-AC inverter designed for telecommunication power systems, providing a stable pure sine wave AC output. The unit features a 19-inch, 2U rack-mount design, making it suitable for telecom racks, power cabinets and backup power systems.
The series includes VT-42-INV2000 and VT-42-INV3000 models for different AC load requirements. An integrated ATS (Automatic Transfer Switch) provides automatic source transfer between utility AC and inverter power, improving power availability for critical loads.
Feature
- Designed specifically for telecommunication applications.
- Converts 48VDC input to AC output.
- High-quality pure sine wave output.
- Integrated ATS – Automatic Transfer Switch.
- Unity power factor.
- Up to 91% efficiency.
- Supports 150% overload for up to 8 seconds.
- LCD display for real-time status monitoring and configuration.
- RS485 communication interface.
- ARM-based control design.
- AC surge protection and AC input over-voltage protection.
- Low noise level, up to 55 dBA.
- Wide operating temperature range from -20°C to +59°C.
- Optional 10A battery charging function.
Specifications
|
Specification
|
VT-42-INV2000
|
VT-42-INV3000
|
|
Rated Power
|
2000VA
|
3000VA
|
|
Rated Input Voltage
|
48VDC
|
48VDC
|
|
Input Voltage Range
|
40–60VDC
|
40–60VDC
|
|
Low Voltage Warning Threshold
|
42VDC
|
42VDC
|
|
Input Protection
|
Reverse Polarity Protection
|
Reverse Polarity Protection
|
|
Psophometric Voltage Noise
|
≤1.0mV, according to ITU-T O.41
|
≤1.0mV, according to ITU-T O.41
|
|
Broadband Noise
|
<1.0mV / <20mVrms
|
<1.0mV / <20mVrms
|
|
Output Voltage
|
220/230/240VAC ±5%
|
220/230/240VAC ±5%
|
|
Output Frequency
|
50/60Hz ±0.1Hz
|
50/60Hz ±0.1Hz
|
|
Over-voltage Threshold
|
276VAC
|
276VAC
|
|
Low Voltage Threshold
|
176VAC
|
176VAC
|
|
Continuous Power
|
1600W
|
2400W
|
|
Surge Power
|
3200W
|
4800W
|
|
Output Waveform
|
Pure Sine Wave
|
Pure Sine Wave
|
|
THD
|
≤5%
|
≤5%
|
|
Efficiency
|
90%
|
91%
|
|
No-load Current
|
<0.65A
|
<0.8A
|
|
Transfer Time
|
5ms / 7ms
|
5ms / 7ms
|
|
Dimensions
|
88.8 × 330 × 440mm
|
88.8 × 330 × 440mm
|
|
Dimensions with Charger Module
|
88.8 × 372 × 440mm
|
88.8 × 372 × 440mm
|
|
Weight
|
6kg
|
7.5kg
|
|
Current Limitation
|
Electronic protection against overload & short circuit
|
Electronic protection against overload & short circuit
|
|
AC Insulation
|
2121VDC / 1 min
|
2121VDC / 1 min
|
|
AC-DC Insulation
|
4242VDC / 1 min
|
4242VDC / 1 min
|
|
Surge Protection
|
EN61000-4-5, ANSI/IEEE C62.41, STD 587-1980
|
EN61000-4-5, ANSI/IEEE C62.41, STD 587-1980
|
|
Dynamic Response
|
±10%, IEC 62040-3 Class 1
|
±10%, IEC 62040-3 Class 1
|
|
ATS
|
Integrated
|
Integrated
|
|
Charging Function
|
Optional
|
Optional
|
|
Charging Current
|
Configurable as required
|
Configurable as required
|
|
Operating Temperature
|
-20°C to +59°C
|
-20°C to +59°C
|
|
Storage Temperature
|
-30°C to +80°C
|
-30°C to +80°C
|
|
Operating Humidity
|
0–95% RH, non-condensing
|
0–95% RH, non-condensing
|
|
Cooling Method
|
Forced Fan Cooling
|
Forced Fan Cooling
|
|
Installation Altitude
|
≤1500m
|
≤1500m
|
|
Noise Level
|
≤55 dBA
|
≤55 dBA
|
|
Communication Interface
|
RS485
|
RS485
|
|
Standards
|
EN 60950-1, UL 60950-1, CE, RoHS, EN300 386:2001 Class B
|
EN 60950-1, UL 60950-1, CE, RoHS, EN300 386:2001 Class B
|
