Optical Pen (VFL) 10km- GTS-10

Bút soi quang (VFL) 10km

Introduction:

           Optical fiber optic pen is used for scanning optical cables, quickly checking for fiber faults with red light. The pen has a compact design with a solid aluminum frame, the handle is roughened with an anti-slip surface, and the optical power is up to 10mW.

Characteristics :

• Works with 2 modes: Continuous light and slow flashing
• Connection standard: FC, SC, ST
• Compact design like a pen makes it easy to use and carry when going to build fiber optic cables
• Product use stable, low power consumption
• Materials using super durable Nano technology

Function:

• Determine fiber optic cable break point, bend position, fiber dead zone test error.

Application:

• Used in telecommunications, CATV engineering and optical system maintenance.

• Maximum testable length: 10km
• Output wavelength: 650nm
• Luminous power: 10mW
• Supports standard 2.5mm connectors such as FC,SC,ST
• Test mode: continuous light, flashing
• Uses 2 AA batteries
• Shell material: Powder coated aluminum alloy
• The aluminum surface is smooth and anti-slip
• Use temperature: 0 to +55 degrees Celsius
• Storage temperature: -10 to +70 degrees Celsius
• Weight : 170Gram

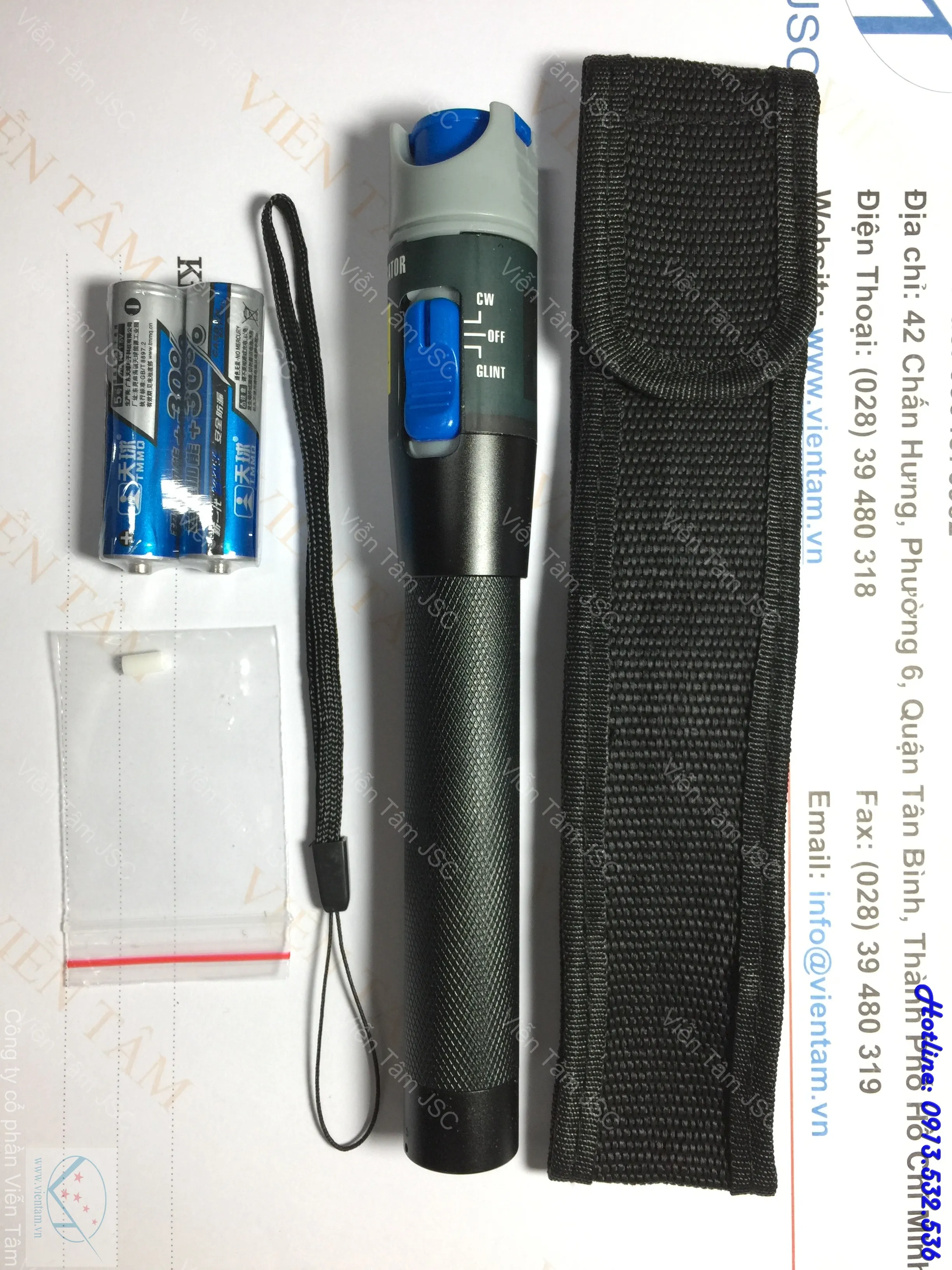

• Accessories included: porcelain lining, 2 AA batteries, strap and carrying bag.

Please contact us for more detailed information.
