Overview

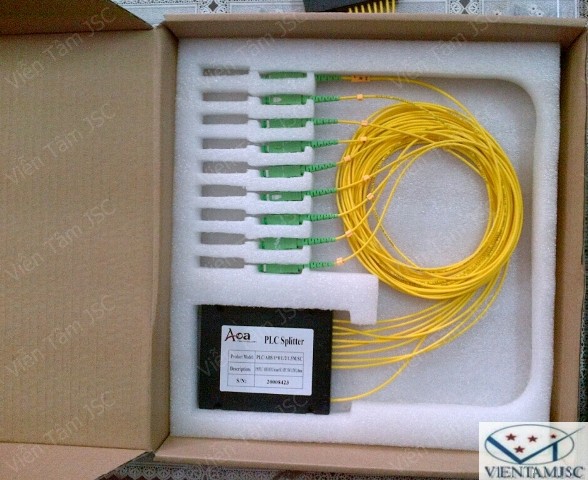

ITEM: 1*8 ABS Box PLC Splitter
MODEL: PLC/ABS/1x8

Feature

Features

Compact design
Low insertion loss and low PDL
High reliability
High channel counts
Wide wavelength range
Large operatiing temperature range
Customized packaging and configuration

Application

FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Other applications in fiber optic systems

Specifications

Parameter

Parameters	Specifications
Channel Number	1x8
Operating Wavelength(nm)	1260-1650
Insertion Loss (dB)	≤10.9
Loss Uniformity (dB)	≤0.8
Polarization Dependent Loss (dB)	≤0.3
Return Loss (dB)	≥50
Directivity (dB)	≥55
Package Dimension(mm)	100×80×10
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

Product Documentation

Please contact us for more detailed information.
