Overview

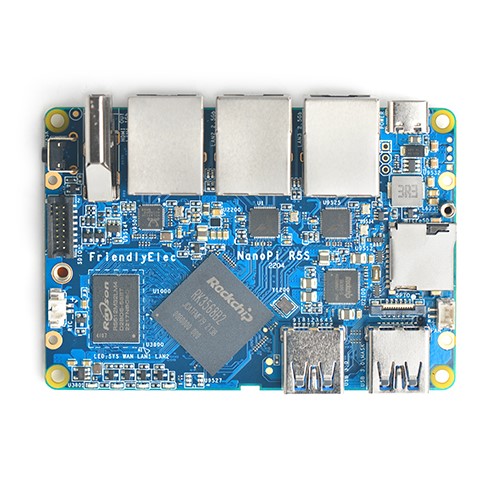

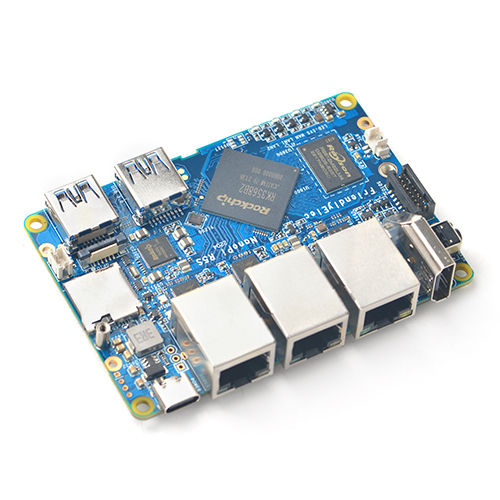

NanoPi R5S is a powerful single-board board (SBC) developed by FriendlyELEC, suitable for applications such as routers, gateways, mini NAS or IoT devices.
Feature
- High Network Performance: With 2 2.5Gbps Ethernet ports and 1 Gigabit port, the device is suitable for applications requiring high bandwidth such as NAS or high-end routers.
- High-speed storage support: M.2 M-Key slot allows NVMe SSD connection, increasing data retrieval speed.
- Expandability: Supports Wi-Fi 6 connection via M.2 module or USB Wi-Fi.
Specifications
| SoC |
Rockchip RK3568B2 |
| CPU |
Quad-core ARM Cortex-A55 CPU, up to 2.0GHz |
| VPU |
4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU |
Support 0.8T |
| RAM |
2GB/4GB LPDDR4X |
| Flash |
8GB/16GB/32GB eMMC |

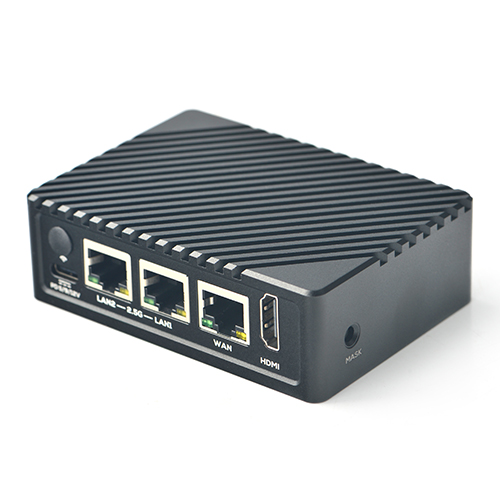

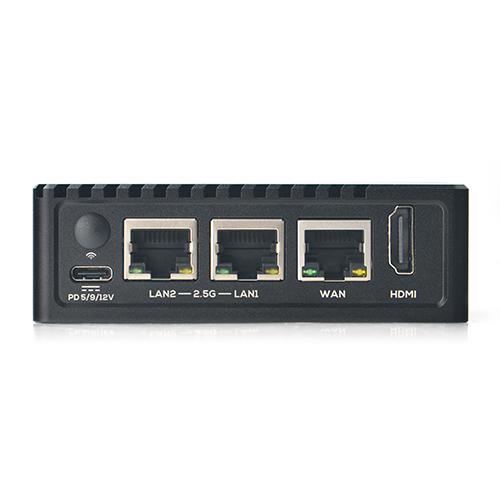

| Ethernet |
one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet |
| USB |
two USB 3.2 Gen 1 Type-A ports |
| HDMI |
- support HDMI1.4 and HDMI2.0 operation
- support up to 10 bits Deep Color modes
- support up to 1080p@120Hz and 4096x2304@60Hz
- support 3-D video formats
|
| PCIe |

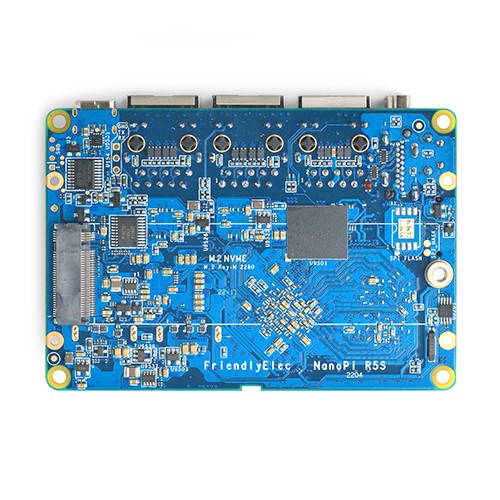

M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc |
| microSD |
support UHS-I |
| GPIO |
- 12-pin 0.5mm FPC connector
- up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
|
| SD/MMC/SDIO/I2S |
- 2x8-pin 1.27mm connector
- Compatible with SDIO3.0 protocol
- Compatible with SD3.0, MMC ver4.51
- 4bits data bus widths
- 1x I2S with 2x SDO and 3x SDI
|
| Debug |
one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| LEDs |

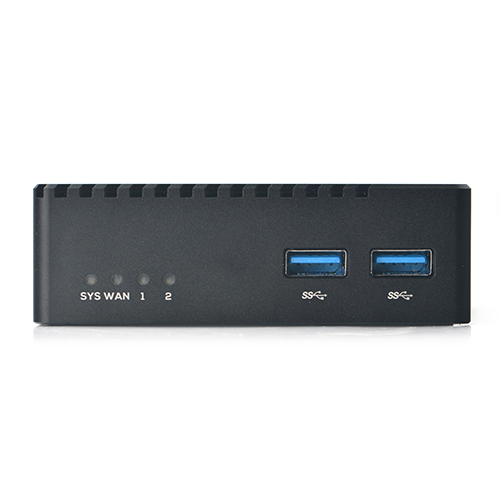

4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2) |
| Others |
- 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
- MASK button for eMMC update
- one 5V Fan connector
|
| Power supply |
USB-C, support PD, 5V/9V/12V input |
| PCB |
8 Layer, 62x90x1.6mm |
| Ambient Operating Temperature |
0℃ to 70℃ |
