Overview

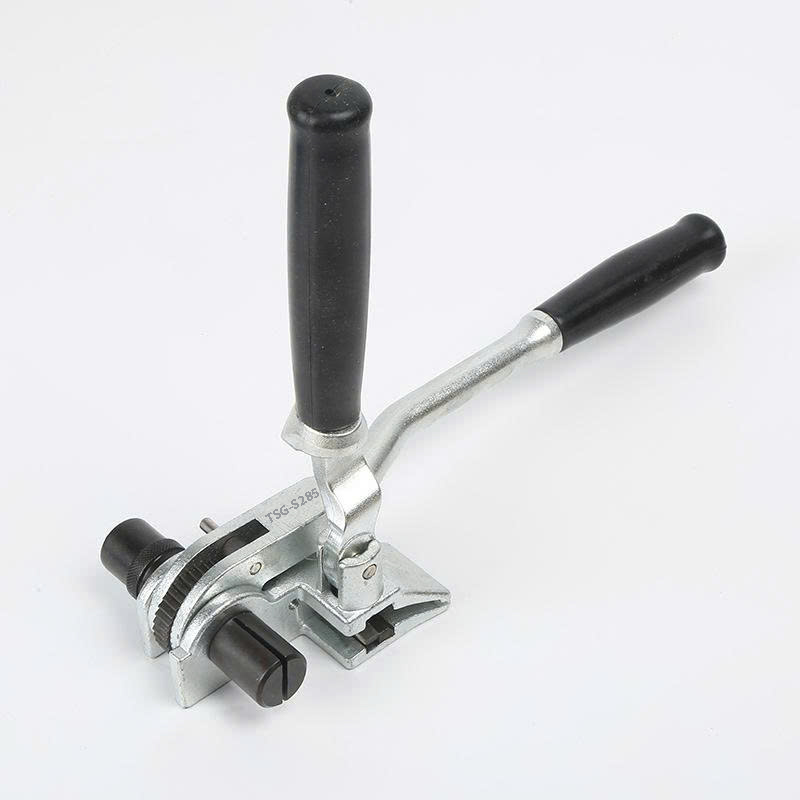

The TSG-S285 Steel Banding Tool is a professional mechanical tool designed for tensioning and securing stainless steel or galvanized steel bands. Its gear-driven mechanism provides strong and stable tensioning force for secure fastening on poles and metal structures.
The tool is suitable for telecommunication, electrical installation, outdoor equipment mounting and industrial applications, including mounting fiber optic distribution boxes, cameras, wireless equipment and cable accessories.
Feature
- Heavy-duty alloy steel construction with anti-rust coating.
- Gear-driven tensioning mechanism for high tension force.
- Compatible with steel bands from 6–20 mm wide.
- Supports stainless steel bands 201 / 304 / 316.
- Compatible with band thicknesses of 0.3–0.7 mm.
- Ergonomic dual-handle design for convenient operation.
- Anti-slip tensioning mechanism.
- Corrosion-resistant construction for outdoor applications.
- Manual lever operation with no external power required.
Specifications
| Specification |
Value |
| Model |
TSG-S285 |
| Tool Type |
Steel Banding Tensioner |
| Body Material |
Alloy Steel, Anti-rust Coating |
| Applicable Band |
Stainless Steel Band 201 / 304 / 316 |
| Band Width |
6–20 mm |
| Band Thickness |
0.3–0.7 mm |
| Operation Mechanism |
Gear-driven Tension System |
| Operation Method |
Manual Lever Tensioning |
| Application Environment |
Outdoor / Industrial |
