Overview

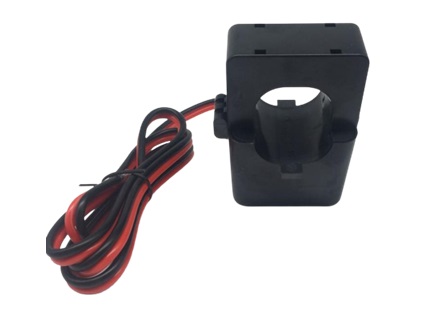

ZHT36KH switching transformer is small in size, high in accuracy and good in consistency. It is used for current measurement, monitoring and protection of AC motor, railway engineering, air compressor, etc
Feature
- Strong environmental resistance
- High accuracy and good consistency
- Flexible installation mode and wide linear range
- Clamp current transformer, easy to install in existing electrical cabinet systems without removing busbars and power cables.
- Used for power measurement and monitoring solutions to save power.
Specifications
|
ZHT36KH Electrical Sensor
|
|
Parameter
|
Data indicators
|
Company
|
|
Rated input current
|
150
|
A
|
|
Rated output current
|
5
|
A
|
|
Power factor
|
COS φ 0.8
|
|
|
Accuracy class
|
1
|
Grade
|
|
Isolation withstand voltage
|
2000
|
V/min
|
|
Linear range
|
0-150
|
A
|
|
Working temperature
|
-35 oC ~ +75oC
|
oC
|
|
Storage temperature
|
-40 oC ~ +80 oC
|
oC
|
|
Use frequency range
|
50Hz - 60Hz
|
Hz
|
|
Relative humidity
|
≤90 No condensation
|
|
|
Installation method
|
Installation mode: primary through core input and secondary lead output
|
|
|
Shell material
|
Engineering plastics, flame retardant
|
|
Product Documentation
Please contact us for more detailed information.
