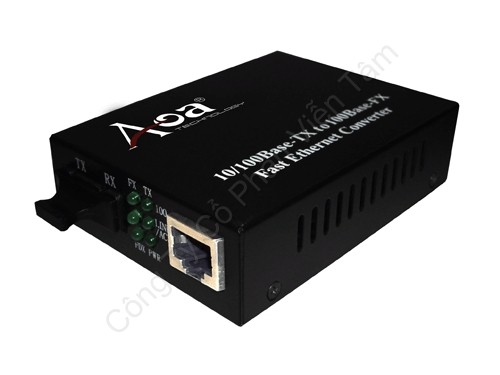

Overview
Application
10/100Mbps fast optical Ethernet long-distance transmitting network
Feature
Features
10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
full-duplex and half-duplex auto-sensed
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Supporting Link Failure Alert (LFA) with optional dip-switch(unique)
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch(unique)
Supporting the transmission of extra-long packets up to1600 bytes
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat, stable performance and long lifetime
Ethernet 10/100Base-TX(RJ45) port , MDI/MDI-X Auto Negotiation function
Support Link Loss Return (LLR), Link Failure Pass (LFP)
Hot-Plug and wall, can be stalled into rack (AOR-14)
Support EPROM function
Use 0.25-um technology
Use WDM technology for SM, single fiber
Specifications
Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100Mbps |
| Standard |
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength |
Mulitmode:850/1310nm; Single-mode:1310/1550nm (Option) |
| Transmission distance |
multi-mode: 2 km; single-mode:20~120km; Cat-5 twisted pairs: 100m |
| UPT-Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs |
| Fiber Port |
One SC/ST/FC MM: SC/ST (50, 62.5/125μm); SM: SC/FC (9/125μm) |
| Conversion means |
Media conversion, store-and-forward/cut-through |
| MAC address table |
1K |
| Buffer space |
1Mbit |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| Delay |
Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER |
<10-9 |
| MTBF |
100,000 hours |
| LED indicator |
PWR (power supply); FX LINK/ACT (optical link/action) FDX (FX full duplex), TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs), FX 100 (100M transmission rate of optical fiber) |
| Power supply |
Working power: DC5V 1A
AC Power supply: 95V~ AC265V
DC power supply: DC-36~72V 0.5A |
| Power consumption |
<3W |
| Operating temperature |
-10~55ºC |
| Operating humidity |
5%~95% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 95% non-condensing |
| Dimensions |
External: 94mmx71mm*26mm Internal: 140mmx110mmx30mm |
Order Information
| Model No. |
Wavelength |
FX Port |
TX Port |
Fiber model |
Distance |
| AOM-1100-M02 |
850/1310nm |
SC/ST/FC |
RJ-45 |
MM, Dual-fiber |
2km |
| AOM-1100-S20 |
1310nm FP |
SC/ST/FC |
RJ-45 |
SM, Dual -fiber |
20km |
| AOM-1100-S40 |
1310nm FP |
SC/ST/FC |
RJ-45 |
SM, Dual-fiber |
40km |
| AOM-1100-S60 |
1310nm FP |
SC/ST/FC |
RJ-45 |
SM, Dual-fiber |
60km |
| AOM-1100-S80 |
1550nm DFB |
SC/ST/FC |
RJ-45 |
SM, Dual-fiber |
80km |
| AOM-1100-S100 |
1550nm DFB |
SC/ST/FC |
RJ-45 |
SM, Dual-fiber |
100km |
| AOM-1100-A20 |
TX1310/RX1550nm FP |
SC/ST/FC |
RJ-45 |
SM, Single-fiber |
20km |
| AOM-1100-B20 |
RX1310/RX1550nm FP |
SC/ST/FC |
RJ-45 |
SM, Single-fiber |
20km |
| AOM-1100-A40 |
TX1310/RX1550nm FP |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
40km |
| AOM-1100-B40 |
RX1310/TX1550nm FP |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
40km |
| AOM-1100-A60 |
TX1310/RX1550nm DFB |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
60km |
| AOM-1100-B60 |
RX1310/TX1550nm DFB |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
60km |
| AOM-1100-A80 |
TX1310/RX1550nm DFB |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
80km |
| AOM-1100-B80 |
RX1310/TX1550nm DFB |
SC/ST/FC |
RJ-45 |
SM ,Single-fiber |
80km |
