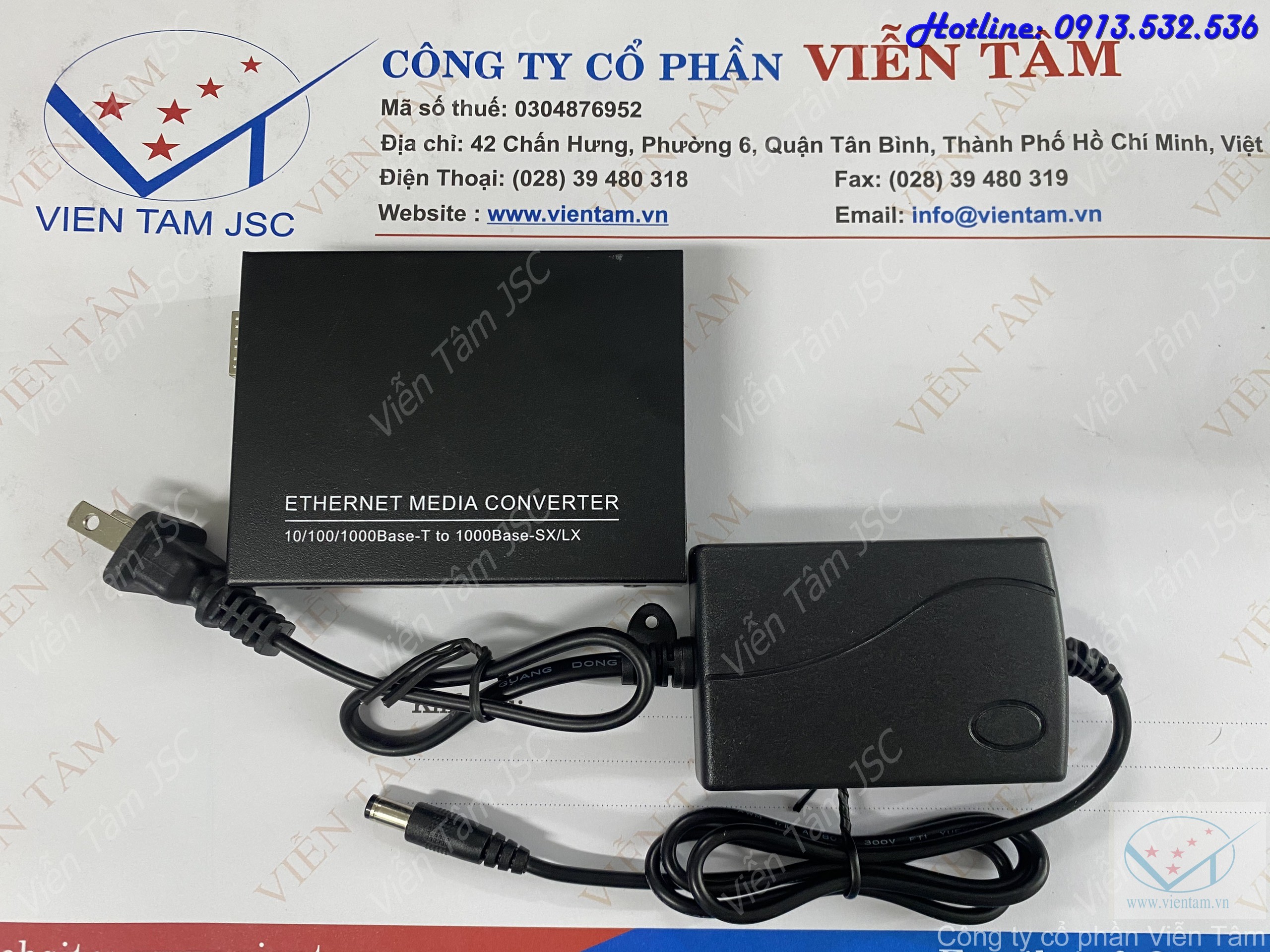

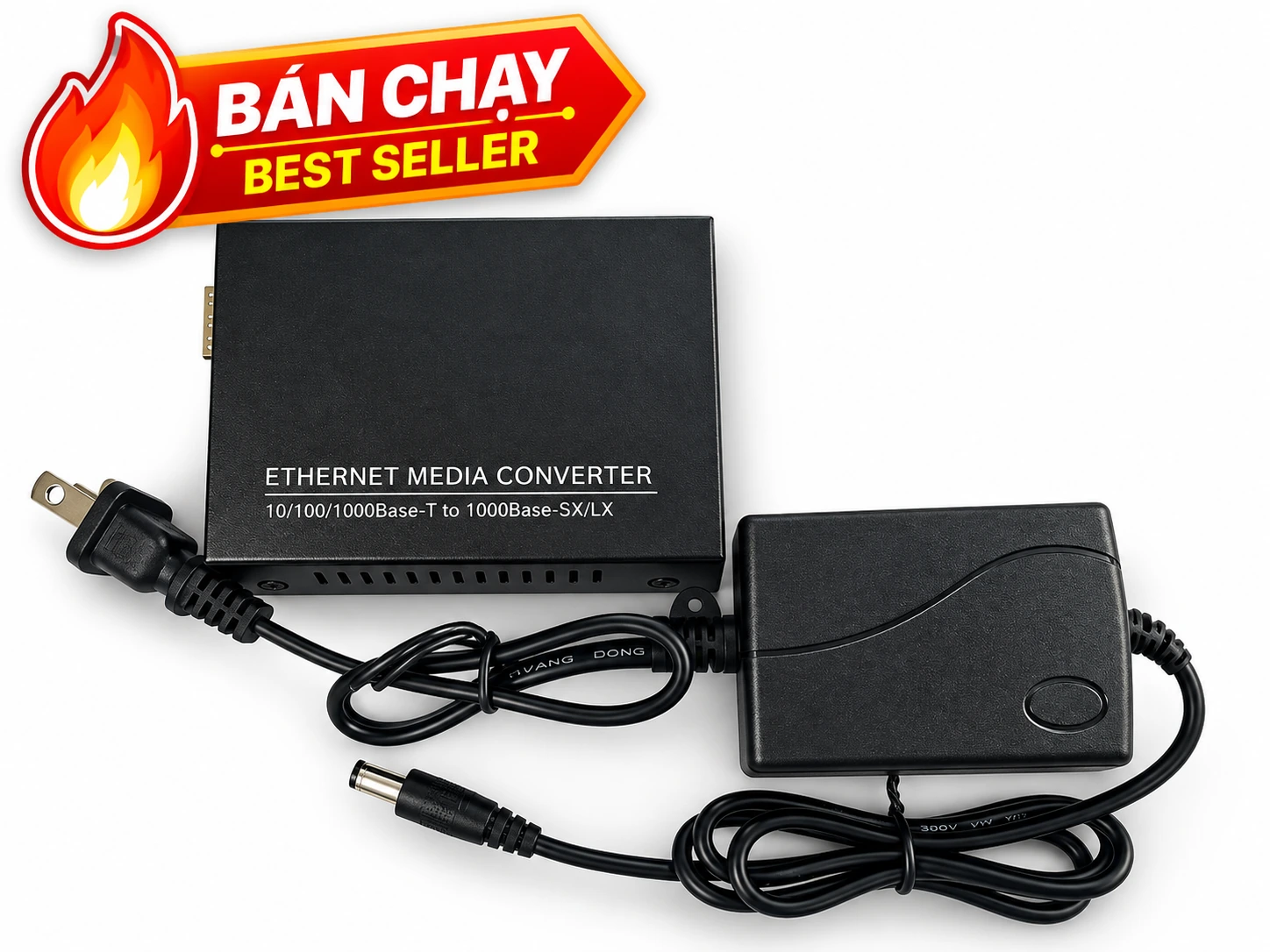

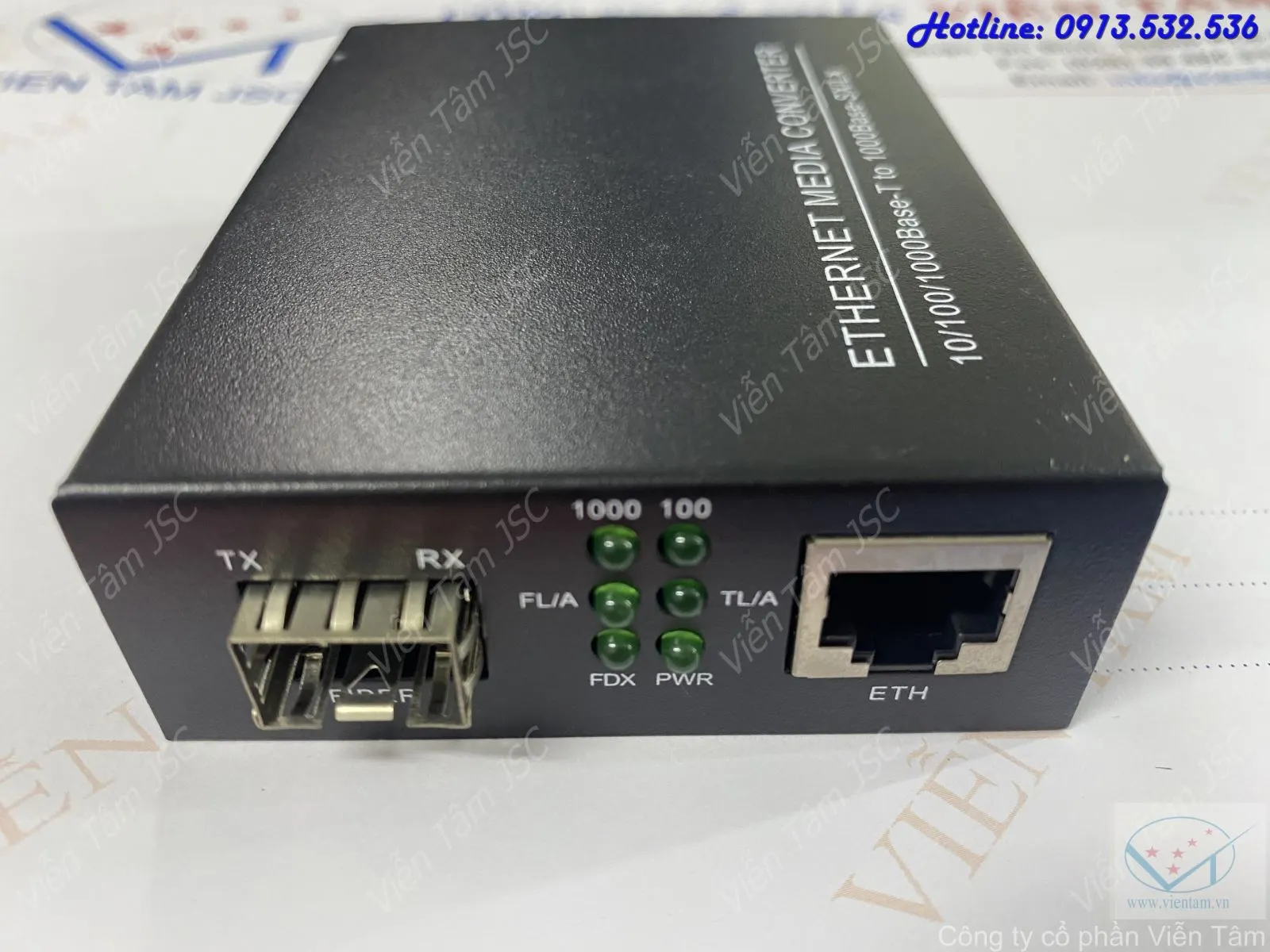

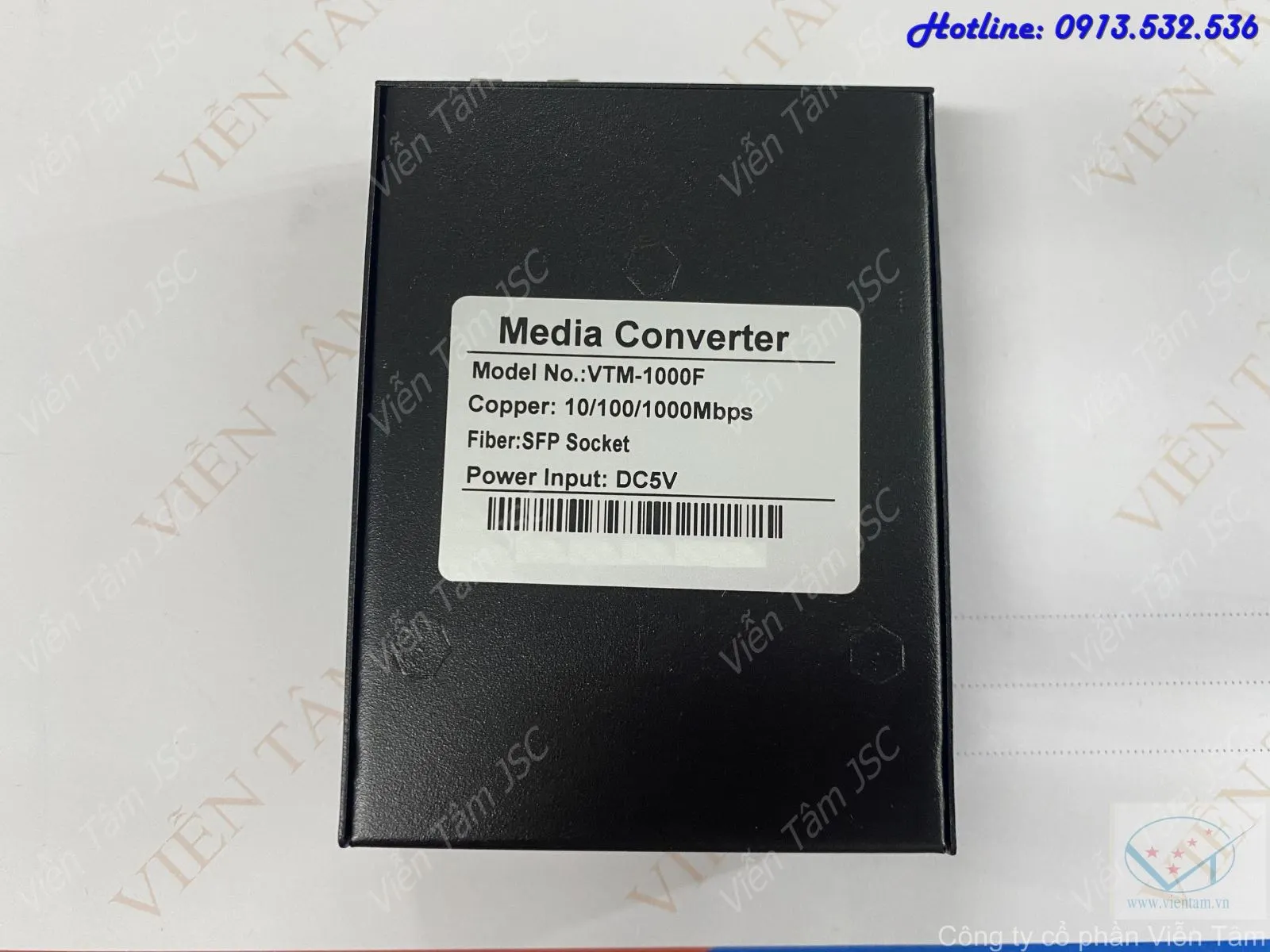

Media converter VTM-1000F

Media converter VTM-1000F

Main features:

- Conforms to IEEE802.3Z / AB 1000 Base - T / SX / LX standard
- Back pressure flow control for full duplex IEEE802.3 X and half duplex.
- Automatic identification of MDI / MDI - X cross line.
- Conforms to safety code of FCC and 15 CLASS A, CE.

Technical parameters:

• Standard Protocol: IEEE802.3ZIAB 1000Base - T / SX / LX standard
  - Transfer rate: Electric interface: 10/100 / 1000Mbps
                             Optical interface: 1.25Gbps
  - Connectors: 1x UTP RJ - 45 connector 1x SC / ST
                           connector or SFP Slot
  - Operation mode: full duplex mode or half duplex mode
  - Power supply parameter: External: AC 100-250V or DC36-60V
                                               Internal: 5V, 1A
  - Operating temperature: -10-55 ° C
  - Relative humidity: 5% -90%
  - Twisted Pair cable: Cat5 UTP cable
  - Fiber cable: Multi - mode: 50/125, 62.5 / 125
                          Single mode: 8.3 / 125, 8.7 / 125, 9/125 or 10 /  125 um
  -  Outside dimensions: External power supply: 71mm x 94mm x 26mm
                                         Built - in power supply: 110mm x 140mm x 30mm

Please contact us for more detailed information.
