Overview

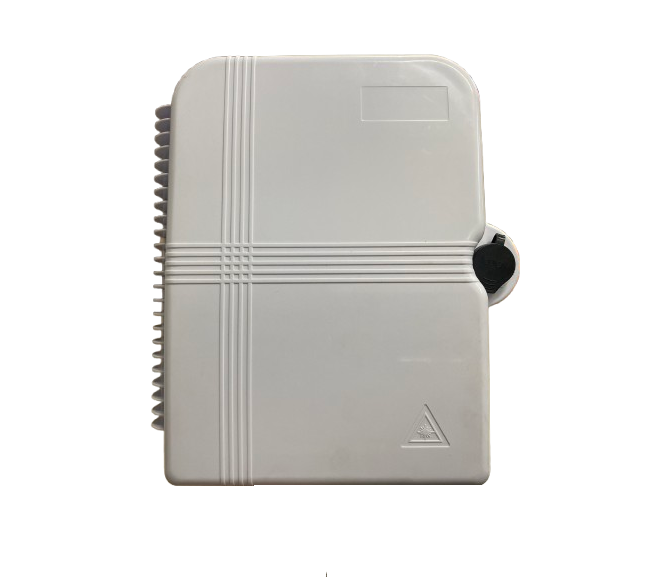

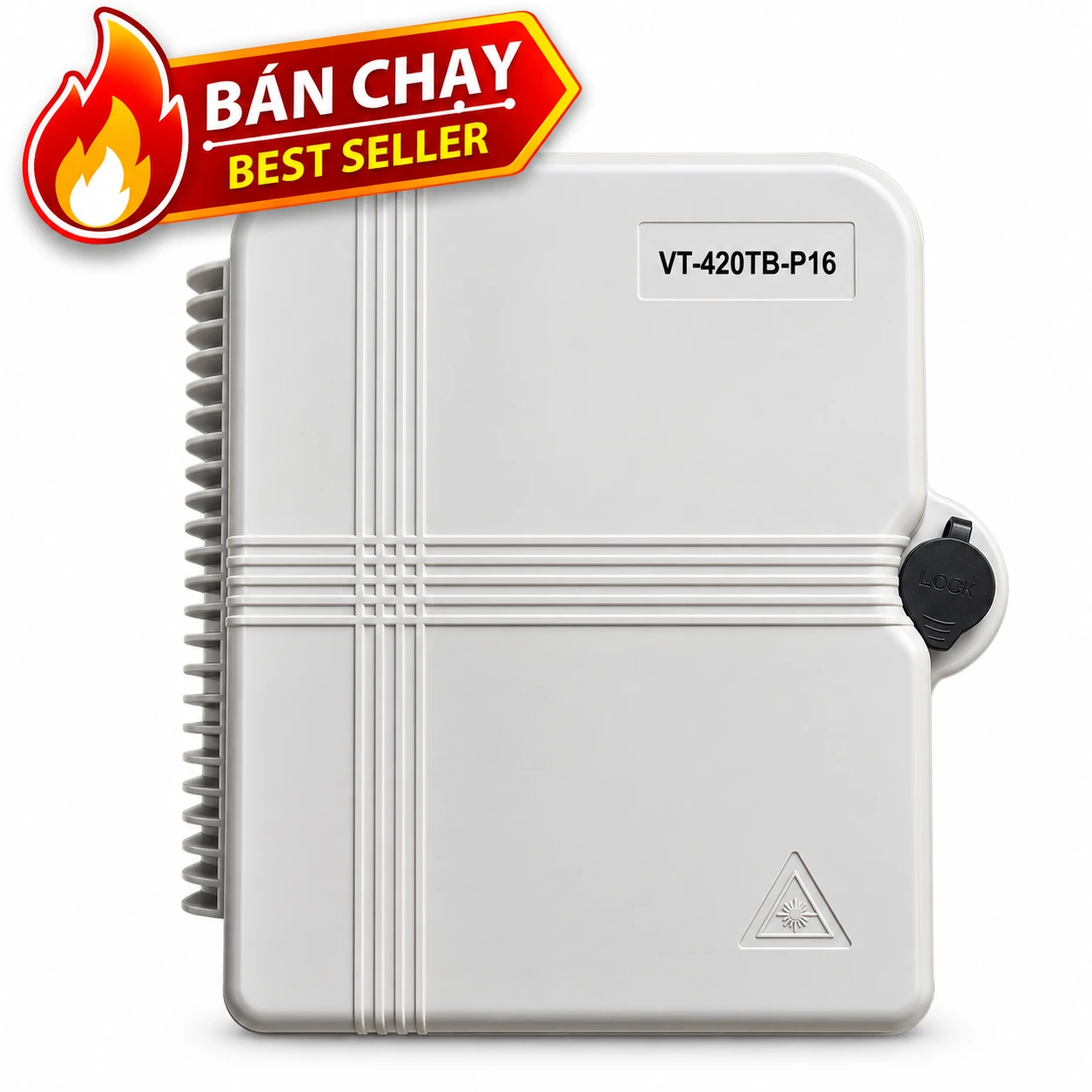

VT–42OTB-P16/24 OTB plastic cabinet is an important device in the optical cable network system, used to connect, protect and manage optical fibers in the transmission network. It acts as a termination point for optical cables, where optical fibers are connected and distributed to other devices.
VT–42OTB-P16/24 is suitable for optical cable splitting/splicing. Reasonable design for optical fiber arrangement and its bending radius is greater than 30mm.
Feature
- Industrial standard user interface, made of ABS plastic
- Can accommodate 1x4, 1x8, 1x16, 2x4, 2x8 & 2x16 PLC steel tube splitter
- Rainproof, outdoor use
- Can load 24 LC, FC, ST, SC…. converters
- Wall mount and pole mount application
- 2 cable entry ports, cable can enter without cutting
- 24 output ports for FTTH drop cable.
Applications:
- FTTH (Fiber to the Home) Network
- FTTB (Fiber to the Building) Network
- Data Centers
- Telecommunication Networks
- MAN (Metropolitan Area Network) Network
- Security and Surveillance Systems
- Cable TV Systems
- Power Grids
- Subway and Railway Systems
- Transmission Networks in Industrial Parks
- Transportation Infrastructure
Specifications
- Model: VT–42OTB-P16/24
- Maximum capacity: 24 optical fibers
- Dimensions: 274.3x313.4x114.1mm
- Default configuration: 1x16 splitter (16FO) or 9 SC/APC converters (8FO).
