Overview

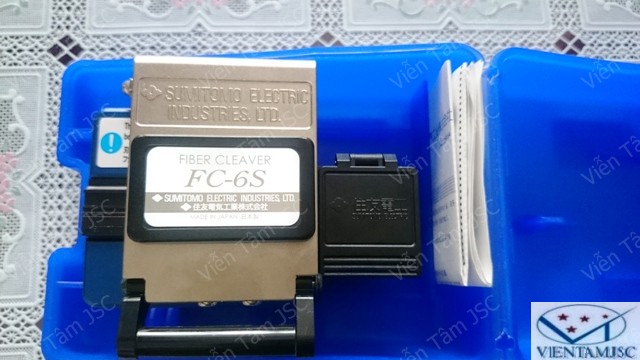

The Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest Sumitomo cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.
.JPG)
.JPG)
.JPG)
.jpg)
.jpg)
Specifications
| Model |
FC-6S |
| Applicable Fiber |
Fiber diameter |
125um |
| Fiber count/size |
Single fiber (0.25 & 0.9mm) and up to 12-fiber ribbon |
| Cleave length |
10mm |
| Typical cleave angle |
0.5º |
| Dimensions / Weight |
62(W) x 76(D) x 63(H) / 430g (FC-6M/FC-6S) 100(W) x 81(D) x 63(H)mm/480g (FC-6M-C/FC-6S-C) |
| Blade life |
36,000fibers (1,000fibers x 12 edge positions x 3-step edge height) |
| Option |
Adapter for single fiber : AP-FC6M (Standard installation with the FC-6S/FC-6S-C) Offcut collector: CU-FC6 (Standard installation with the FC-6M-C/FC-6S-C Balde replacement: FCP-20BL |
