Overview

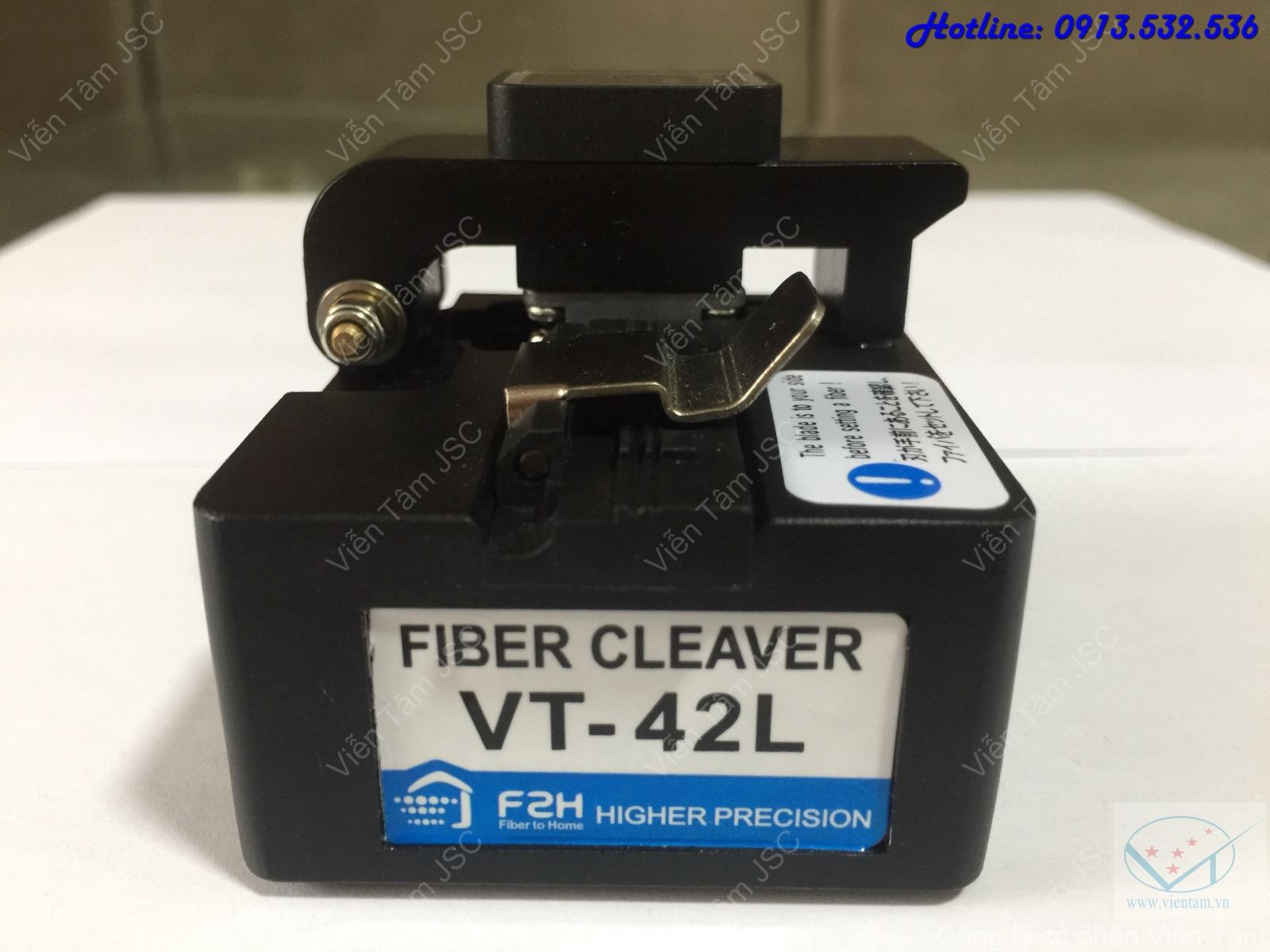

VT-42L High Precision Fiber Cleaver
.jpg)
.jpg)
.jpg)
Feature
Applicable to coating fiber diameter of 250um & 3.0mm
Applicable up to 12-fiber cleaving
fibers blade life (3 height x 12 positions)
Compact body & light weight
Specifications
|
Applicable fibers
|
Silica optical fiber
|
|
Bare fiber diameter
|
125um
|
|
Coating diameters
|
0.25~3.0mm
|
|
Cleaving angle
|
0.5 degrees with single fiber
|
|
Cleaving length
|
250um:9~16mm;3.0mm:10~16mm
|
|
Blade positions
|
3 height and 12 rotating positions
|
|
Blade life
|
36,000 fibers (1,000 fibers x 3 height x 12 positions)
|
|
Dimensions(mm)
|
57.8W*60.5D*51.5H
|
|
Weight
|
315g
|
Product Documentation
Please contact us for more detailed information.
