Overview

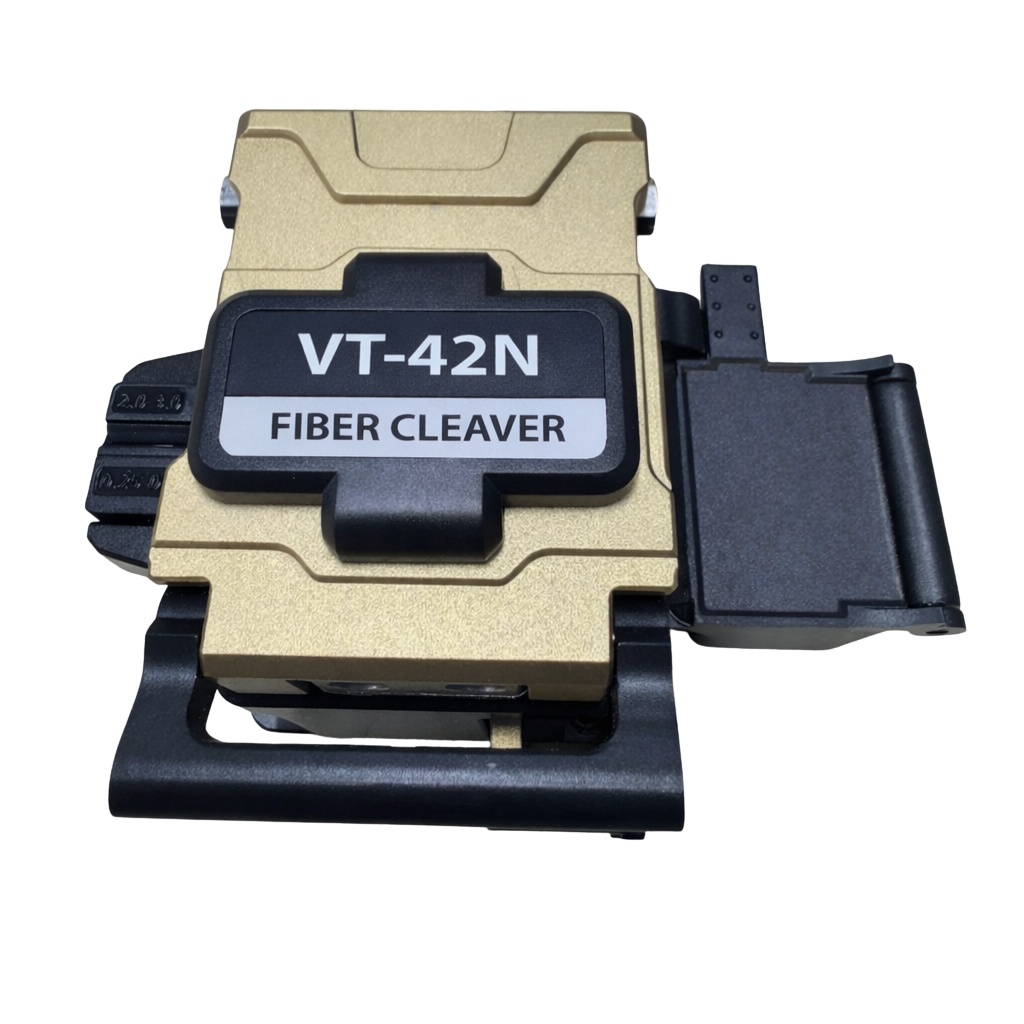

VT-42N High Precision Fiber Cleaver
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.JPG)
.JPG)
Feature
Applicable to coating fiber diameter of 0.25 ~3.0mm
Applicable up to 16-fiber cleaving fibers blade life (3 height x 16 positions)
Compact body & light weight
Specifications
|
Applicable fibers
|
Silica optical fiber
|
|
Bare fiber diameter
|
125um
|
|
Coating diameters
|
0.25 ~3.0mm
|
|
Cleaving angle
|
0.5 degrees with single fiber
|
|
Cleaving length
|
0.25mm:9~16mm; 3.0mm:10~16mm
|
|
Blade positions
|
3 height and 16 rotating positions
|
|
Blade life
|
48,000 fibers (1,000 fibers x 3 height x 16 positions)
|
|
Dimensions(mm)
|
57.8W*60.5D*51.5H
|
|
Weight
|
315g
|
Product Documentation
Please contact us for more detailed information.
