Overview

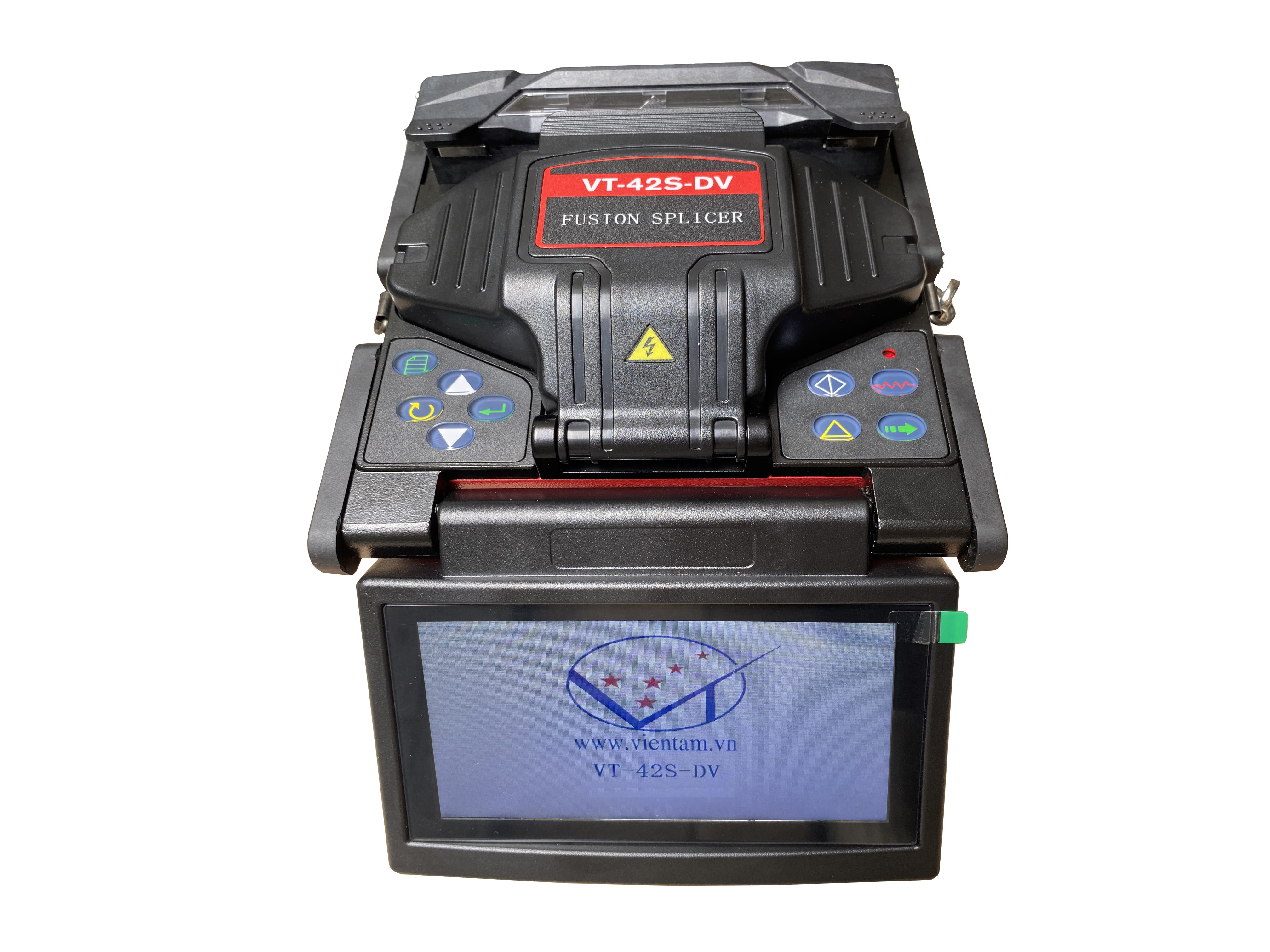

VT-42S-DV is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. The innovative transit case and work tray provide multiple options for the best utilization of available work space. VT-42S-DV splicers are suitable for core alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together. The bare fiber area is protected either by recoating or with a splice protector. A splice protector is a heat shrinkable tube with a strength membrane and less loss.
Feature
- Fast splicing and heating time: ~7 second splicing and ~13 second heating
- GPU processors help increase performance and reduce power consumption
- Powerful battery and Top Quality electrode: up to more 250 times of continuous splice and heat and more 5500 times life span electrode
- Terminal solder and subscriber optical cable (drop cable)
- Equipped with double VGroove for more precise setting operation
- Fully Automatic Operation
- 5000m altitude ensures Splice Quality
- SYSTEM TEST ensures the best working condition
- 3 inch high resolution color screen, anti-reflective
- Pause function, convenient for scientific research
- Store more 10.000 groups of splice results
- USB&DC interface
- More 400 Magnifications of X and Y
- Display fiber in each X, Y axis; or both X and Y at the same time
- Four motors Core-Alignment PAS technology
- Anti-shock, dust proof and waterproof.
Specifications
|
Model
|
VT-42S-DV
|
|
Dimension
|
122mm（L） *122mm（W） *130mm（H）
|
|
Weight
|
~1.85kg(Include battery)
|
|
Languages
|
English, Vietnamese,...
|
|
Number of Fiber
|
Single
|
|
Applicable Fibers
|
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T
G.653) / NZDS(ITU-T G.655)
|
|
Compatible Fiber / Cable
|
SM, MM, DS, NZDS, G655, G657 and others
|
|
Cleaved Length
|
Diameter: 0.1~3.0 mm / Cleave Length: 5~16 mm
|
|
Cladding Diameter
|
80~150 μm
|
|
Splicing Mode
|
100 splice modes
|
|
Heating Mode
|
10 heating modes
|
|
Typical Splice Loss
|
SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB /
G.657: 0.02dB(ITU-T Standard)
|
|
Return Loss
|
≥60dB
|
|
Splicing Time
|
~7 sec
|
|
Estimated Splice Loss
|
Available
|
|
Protection Sleeve Length
|
20~60 mm
|
|
Heating Time
|
Typical heating time: ~13 sec
|
|
Results Storage
|
More 10.000 results
|
|
Tension Test
|
2.0N
|
|
Operating Condition
|
Operating Altitude: 0~5000m above sea level, 0~95%
relative humidity, -10~50°C, Max Wind 15m/s
|
|
Storage Condition
|
0~95% relative humidity, -40~80°C
|
|
Display
|
4.3” Color High Resolution Display
|
|
Fiber View & Magnification
|
X, Y, XY, X/Y : more 400 Magnification
|
|
Power Supply
|
6500mAh Internal Li-Battery , 15V DC adaptor, DC 10÷15 VDC
|
|
No. of Splice / Heating with
Battery
|
Typical more 250 times (Splice+Heat)
|
|
Operating Methods
|
Button
|
|
Calibration
|
Arc calibration by doing ARC Test
|
|
Electrode Life
|
More 5500 arcs
|
|
Terminal
|
USB
|
Product Documentation
Please contact us for more detailed information.
Hotline: 0913.532.536 - 0913.620.622
Email: info@vientam.vn
