Overview

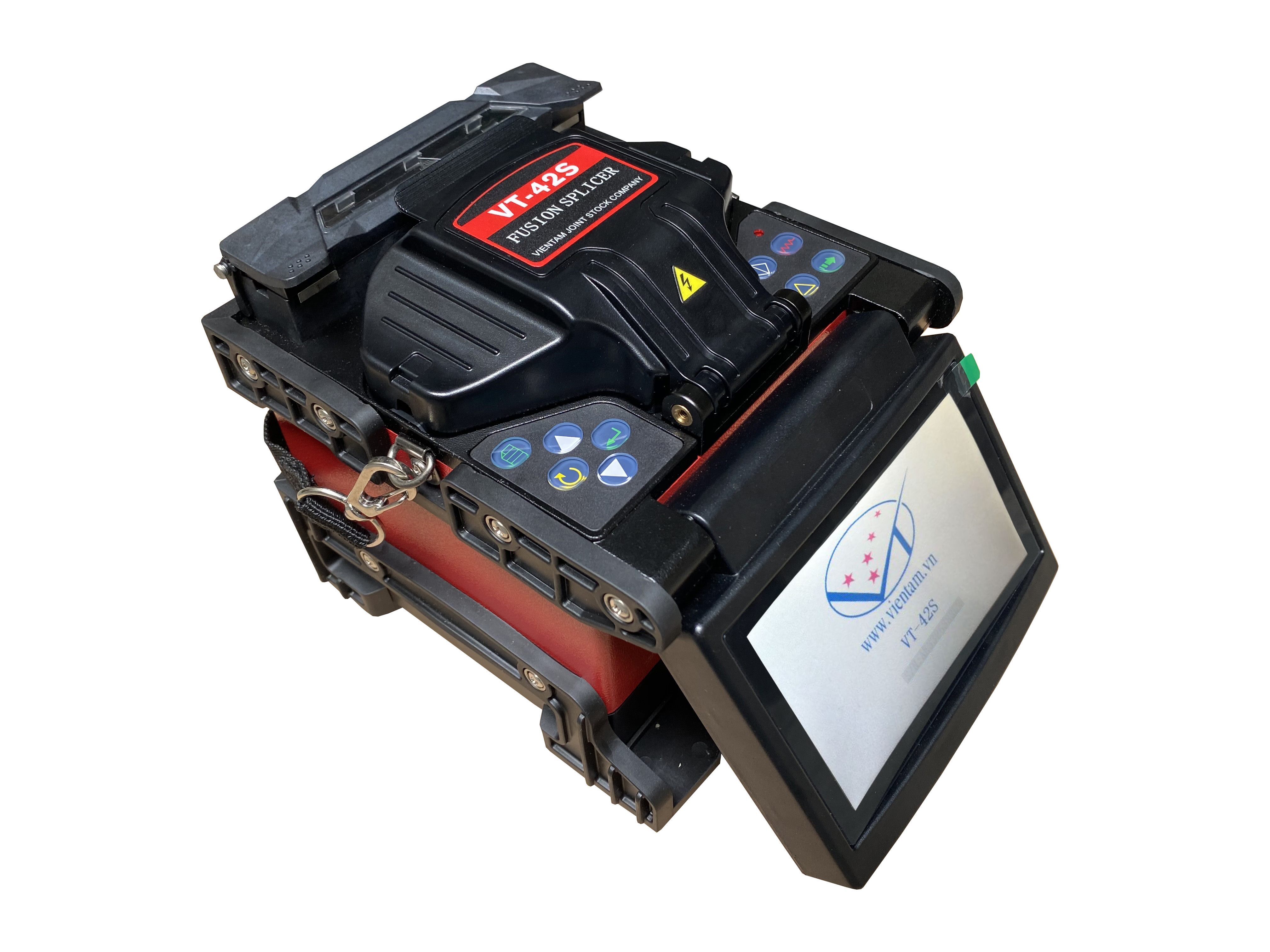

VT-42S is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. VT-42S is capable of ensuring high-quality splicing even in the most unfavorable environment conditions. VT-42S splicers are suitable for core alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x/y plane, then are fused together. The bare fiber area is protected either by recoating or with a splice protector. A splice protector is a heat shrinkable tube with a strength membrane and less loss.
Feature
- Industry-Standard Chips World fast splicing and heating time: ~7 second splicing and ~13 second heating
- GPU processors help increase performance and reduce power consumption
- Newly-designed carry case: easy carry and can be as work plate
- Powerful battery and Top Quality electrode: up to more 250 times of continuous splice and heat and more 5500 times life span electrode

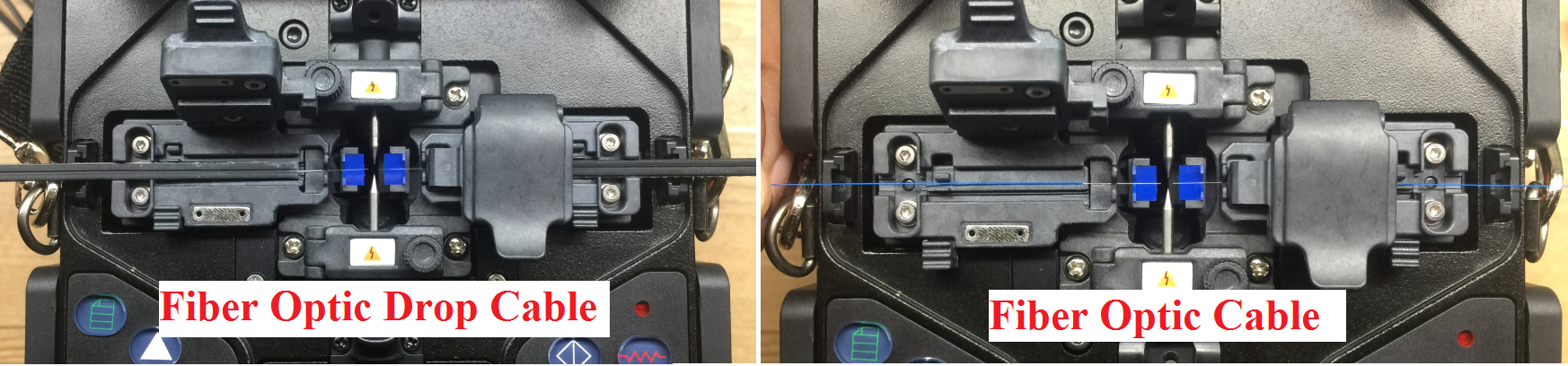

- Neat and light design, integrated with 2-mode circuit holder, convenient when using conventional
- Terminal solder and subscriber optical cable (drop cable)
- Equipped with double VGroove for more precise setting operation
- Fully Automatic Operation
- 6000m altitude ensures Splice Quality
- SYSTEM TEST ensures the best working condition
- 3 inch high resolution color screen, anti-reflective
- Pause function, convenient for scientific research
- Store more 12.000 groups of splice results
- USB&DC interface
- More 450 Magnifications of X and Y
- Display fiber in each X, Y axis; or both X and Y at the same time
- Four motors Core-Alignment PAS technology
- Anti-shock, dust proof and waterproof.
Specifications
Model
|
VT-42S
|
Dimension
|
122mm(L) *122mm(W) *130mm(H)
|
Weight
|
~1.98kg(Include battery)
|
Languages
|
English, Vietnamese,...
|
Number of Fiber
|
Single
|
Applicable Fibers
|
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
|
Compatible Fiber / Cable
|
SM, MM, DS, NZDS, G655, G657 and others
|
Cleaved Length
|
Diameter: 0.1~1 mm / Cleave Length: 5~16 mm
|
Cladding Diameter
|
80~150 μm
|
Splicing Mode
|
100 splice modes
|
Heating Mode
|
10 heating modes
|
Typical Splice Loss
|
SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)
|
Return Loss
|
≥60dB
|
Splicing Time
|
~7 sec
|
Estimated Splice Loss
|
Available
|
Protection Sleeve Length
|
20~60 mm
|
Heating Time
|
Typical heating time: ~13 sec
|
Results Storage
|
More 12.000 results
|
Tension Test
|
2.0N
|
Operating Condition
|
Operating Altitude: 0~6000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s
|
Storage Condition
|
0~95% relative humidity, -40~80°C
|
Display
|
4.3” Color High Resolution Display
|
Fiber View & Magnification
|
X, Y, XY, X/Y : more 450 Magnification
|
Power Supply
|
6500mAh Internal Li-Battery , 15V DC adaptor, DC 10÷15 VDC
|
No. of Splice / Heating with Battery
|
Typical more 250 times (Splice+Heat)
|
Operating Methods
|
Button
|
Calibration
|
Arc calibration by doing ARC Test
|
Electrode Life
|
More 5500 arcs
|
Terminal
|
USB
|
Weight and Dimensions:
Height: 122 mm
Width: 122 mm
Depth: 130 mm
Weight: ~1.98 kg with battery
Package:
|
Package
|
Fusion Splicer VT-42S
|
Item No: VT00001
|
6500mAh Internal Li-Battery VT-42SB
|
Item No: VT00002
|
High Precision Cleaver VT-42SC
|
Item No: VT00003
|
Adaptor VT-42SA
|
Item No: VT00004
|
Cooling Tray
|
Item No: VT00005
|
Tool Tray
|
Item No: VT00006
|
Cleaning V-Groove tool
|
Item No: VT00007
|
User Guide
|
Item No: VT00008
|
Drop cable stripper
|
Item No: VT00009
|
VT-42OPC-C Mini Power Meter
|
Item No: VT00010
|
Carying Case + Strap
|
Item No: VT00011
|
Heat shrink + ODF 1FO (for subscriber cable):
