Overview

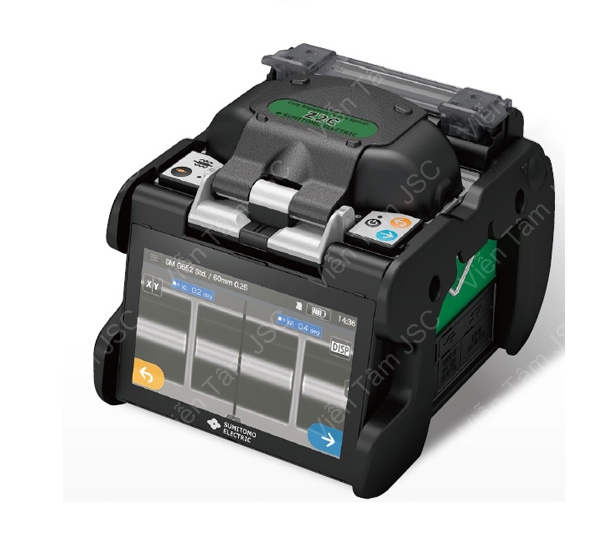

Sumitomo Z2C Fusion Splicer is an upgraded version of the Z1C fiber optic welder using core alignment technology, improved splicing speed down to 6 seconds and heating down to 15 seconds, large battery capacity allows welding and Simultaneous heating of more than 300 joints.
Feature
- Compact and Lightweight with only 2.0 kg weight including battery.
- Ultra fast splicing (6 sec.)
- Ultra fast heating (15 sec.)
- Dust-free, water resistant and shock-proof.
- Touch-screen operation
- Remote support via internet
- Upgrades software via internet
Specifications
| Model |
Z2C |
| Size |
128x154x130mm / 2.0kg Battery included |
| Welding technology |
Active Core Alignment |
| Type of yarn used |
SM (G.652 & G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656)and Erbium-doped fiber |
| Number of welding threads at the same time |
Single (01 yarn) |
| Cutting length |
8 to 16 mm |
| Welding program |
300 modes (40 auto, 260 user programs) |
| Heating Program |
100 modes (23 auto, 77 user-installed programs) |
| Storage |
10,000 welds, 200 images |
| Welding time |
6s |
| Heating time |
15s |
| Weld loss |
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Reflective attenuation |
> 60dB |
| Tension force |
1.96 ~ 2.09 N |
| Display |
Color LCD touch screen 5 inch |
| Magnify Camera |
X/Y: 350X, X or Y 350X |
| Connect |
USB 2.0 type B |
| Electrode life |
6.000 times |
| Electricity supply |
AC100/240V, 50/60Hz, DC Input 10 to 15V |
| Battery capacity |
6400mAh for 300 soldering + heating |
Package Contents:
- Welding body Z2c
- Sumitomo FC-6S . Fiber Optic Cutter
- Optical fiber stripping pliers
- Alcohol bottle
- Battery BU-16 Li-on 6,400mAh
- Power adapter ADC-16 , 100-240V, 50/60hz
- ER-10 spare pair of arc-discharge welding needles with electrode life up to 6000 times
- CC-82 . hard-wearing case
- Welding machine carrying strap
- Optical welding machine user manual
Product Documentation
Sumitomo Z2C datasheet
Please contact us for more detailed information.
