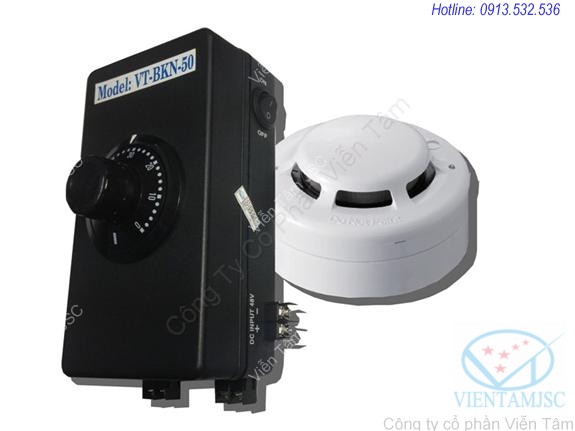

Versatile heat-smoke alarm device VT-BKN-50
.jpg)
Introduction:
VT-BKN-50 is designed to combine the features of Smoke alarms and Heat detectors to bring superior features to fire alarm systems.
The device is made of high quality materials, with perfect contact. VT-BKN-50 Smoke and Heat detectors are designed to be installed in
environments with high temperatures, or temperature variations such as Telecommunication station house, mobile network BTS station,
Hotel, Bank, Company, Private house...
For more detailed information, you can contact at:
Hotline: 0913.532.536 - 0913.620.622
Email: info@vientam.vn
Feature
Specifications
Smoke alarm specifications :
| - Product model: |
VT-BKN-50 |
| - Power voltage level: |
12 ~ 30V DC |
| - Current StandBy: |
35μA |
| - Current alarm @24V DC 470Ω: |
40mA |
| - Sensitivity setting: |
Follow EN54 |
| - Environment temperature: |
-10°C ~ +55°C |
| - Material: |
Flame Retardant Plastic |
| - Size: |
102mm(Dia.) x 49mm(H) |
| - Weight: |
265g |
| - Color: |
White - Black |
Specifications of heat alarm :
| - Product model: |
VT-BKN-50 |
| - Temperature threshold: |
MIN -0°C - MAX 50°C |
| - Maximum allowable temperature of probe: |
120°C |
| - Contact voltage/current: |
20A/250VAC, 10A/380VAC |
| - Weight: |
180g |
| - Size: |
160x85x55mm |
| - Color: |
Black |
Effective warning area :
|
Height Building
|
Space area
|
|
- Under 4m
|
150M2
|
|
- 4m ~ 20m
|
75 M2
|
*Note: Product specifications and models are subject to change without notice.
