Overview

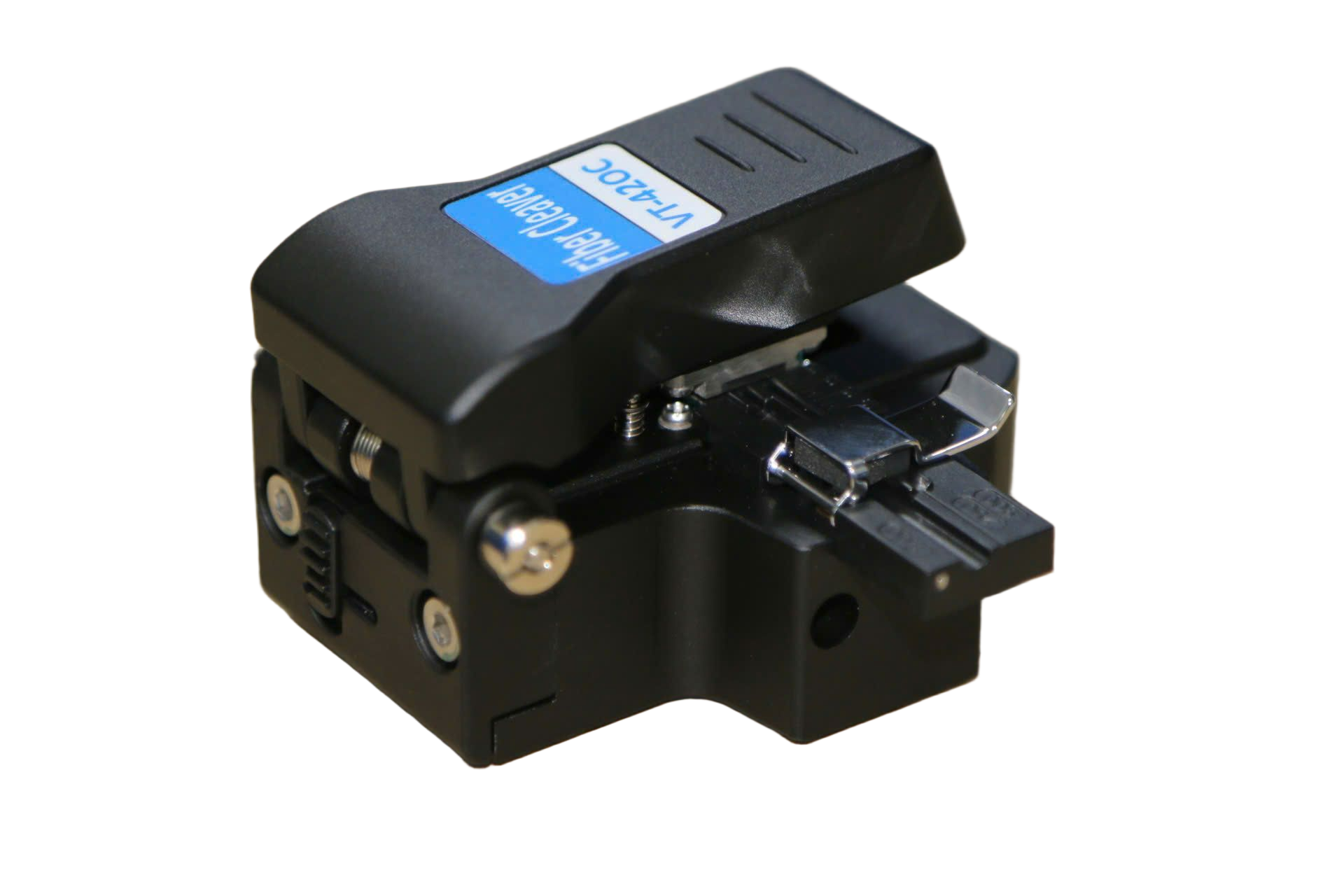

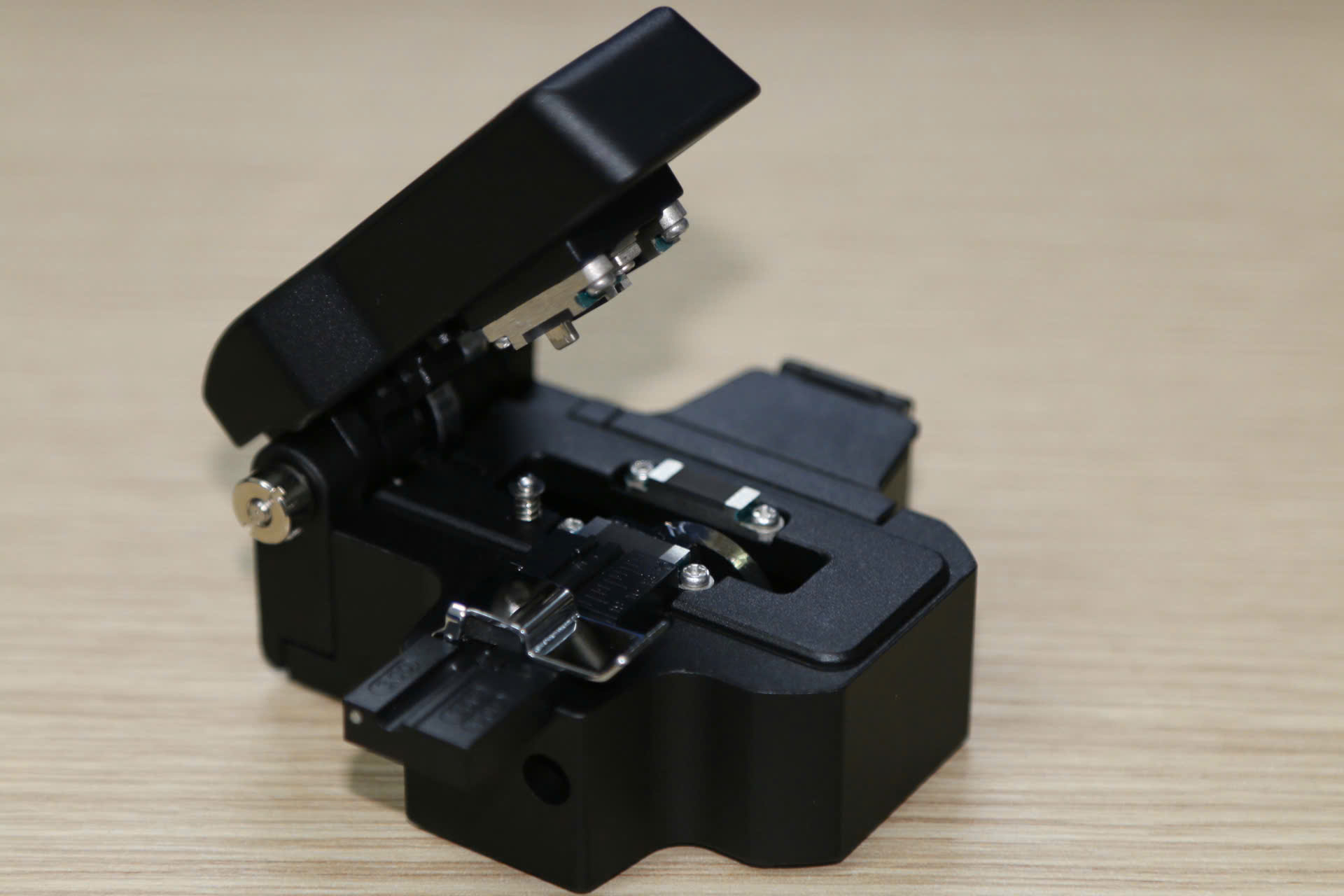

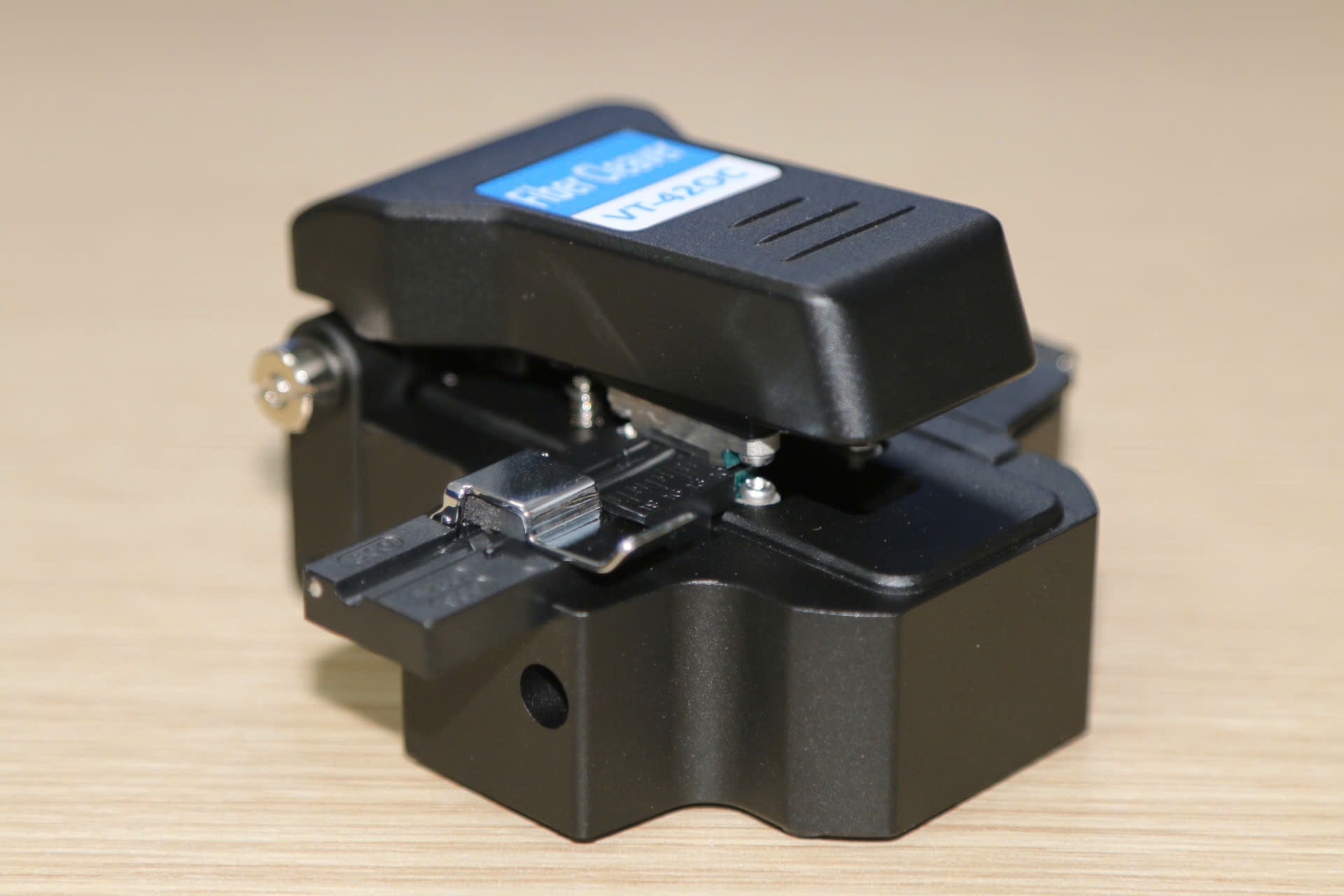

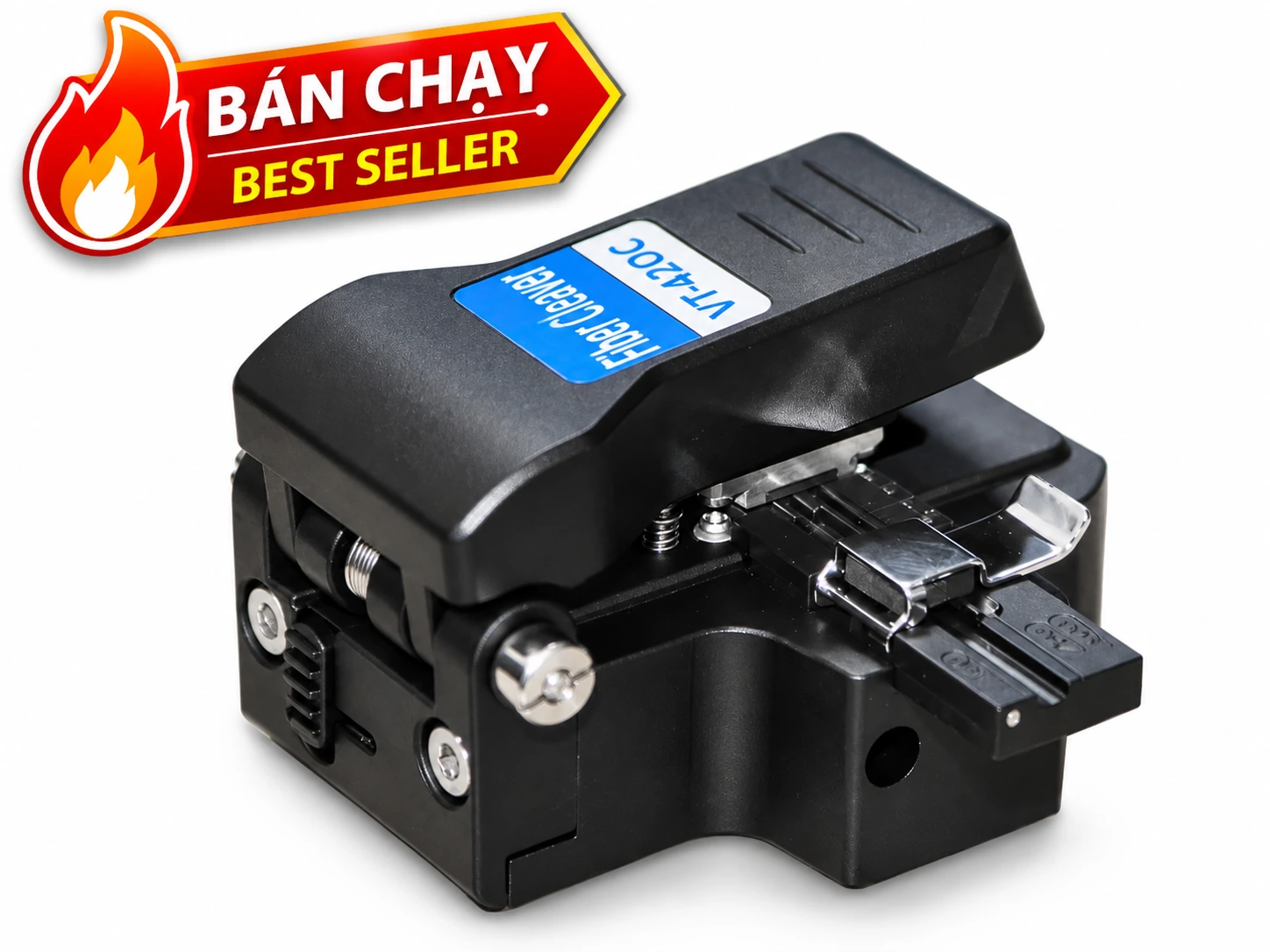

The VT-42OC fiber cleaver is meticulously designed to provide maximum convenience for users. No sliding action is required during operation, and the device completes fiber cutting in a single step. When blade rotation is needed, it can be performed quickly with just one simple action. Constructed from durable alloy materials, the VT-42OC features a compact, lightweight design and can be easily operated with one hand—making it an ideal companion for outdoor applications.
Feature
- Compatibility: Supports optical fibers from 250 μm to 3.0 mm.
- Blade Material: Uses high-hardness tungsten steel blades with excellent wear resistance and ultra-long lifespan.
- Clamp: Equipped with silicone pressure pads for secure and precise fiber fixing.
- Fiber Collection: Integrated large-capacity fiber collection box ensures safety and hygiene during operation.
- Design Features: Robust alloy frame combined with high-quality sliding rails.
Specifications
|
Model
|
VT-42OC
|
|
Fiber Type
|
SM/ MM
|
|
Operating Mechanism
|
One step
|
|
Bare Fiber Diameter
|
125μm
|
|
Cutting Length
|
10~20mm
|
|
Blade Life
|
50.000 cleaves
|
|
Weight
|
≈235g
|
|
Size
|
87(W) x 74(D) x 49(H)mm
|
|
Cleaved Angle
|
<0.5°
|
|
Operating Conditions
|
Temperature: -10~50°C / Humidity: 0~95%RH
(Non-condensing)
|
|
Storage Conditions
|
Temperature: -40~80°C / Humidity: 0~95%RH
(Non-condensing)
|
Product Documentation
Please contact us for further details...
