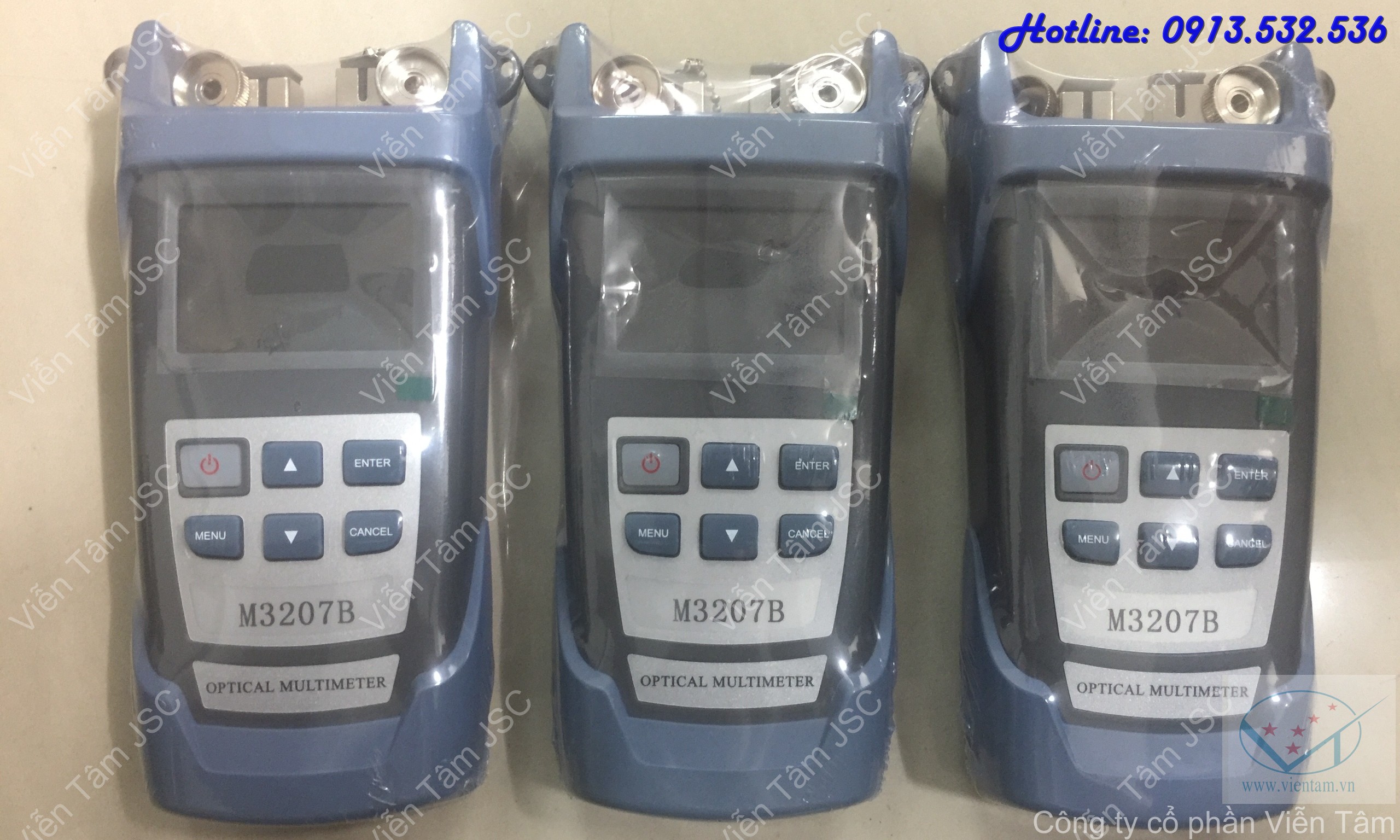

Optical power meter M3207B

Optical power meter M3207B is a cheap but high quality and accurate optical power meter. The machine is equipped with the VFL feature, which is the most prominent in the line of optical power meters in the same segment. It can be said that the M3207B is a cheap optical power meter worth buying today.

• The machine is integrated with VFL technology with extremely high luminous ability, helping to support optical inspection of cables with a route length of up to 10km.
• Measure optical power with high accuracy.
• Use a large capacity Lithium rechargeable battery.
• M3207B has a 2.4 inch LCD display screen.
• Control panel design easy to use, flexible
• The machine automatically updates the time / date / month and displays it on the screen.
• The machine has an additional feature of storing information about fiber optic test results.
• The meter M3207B has an SC adapter for connection to other meters.
• The machine has a convenient compact design, has good dust resistance, increases the durability of the machine.
• The device also comes with a shockproof carrying bag

• Model : M3207B
• Made in : China
• Measuring range(dBm) : -70~+10 or -50~+26
• Stability (dB) : +0.2(5%)
• Display accuracy (dB) : 0,01
• Measuring wavelength (nm) : 850,980,1300,1310,1490,1550,1625
• Laser source: Wattage10mw
• Screen : LCD 2.4TFT
• Charge : Lithium ion 1100mAh
• Battery life: >15 hours continuously
• Operating temperature : -10 ~ 60 ℃
• Storage temperature : -25 ℃ ~ 70 ℃
• Size : 190 * 100 * 48
• Weight : 280g
