Overview

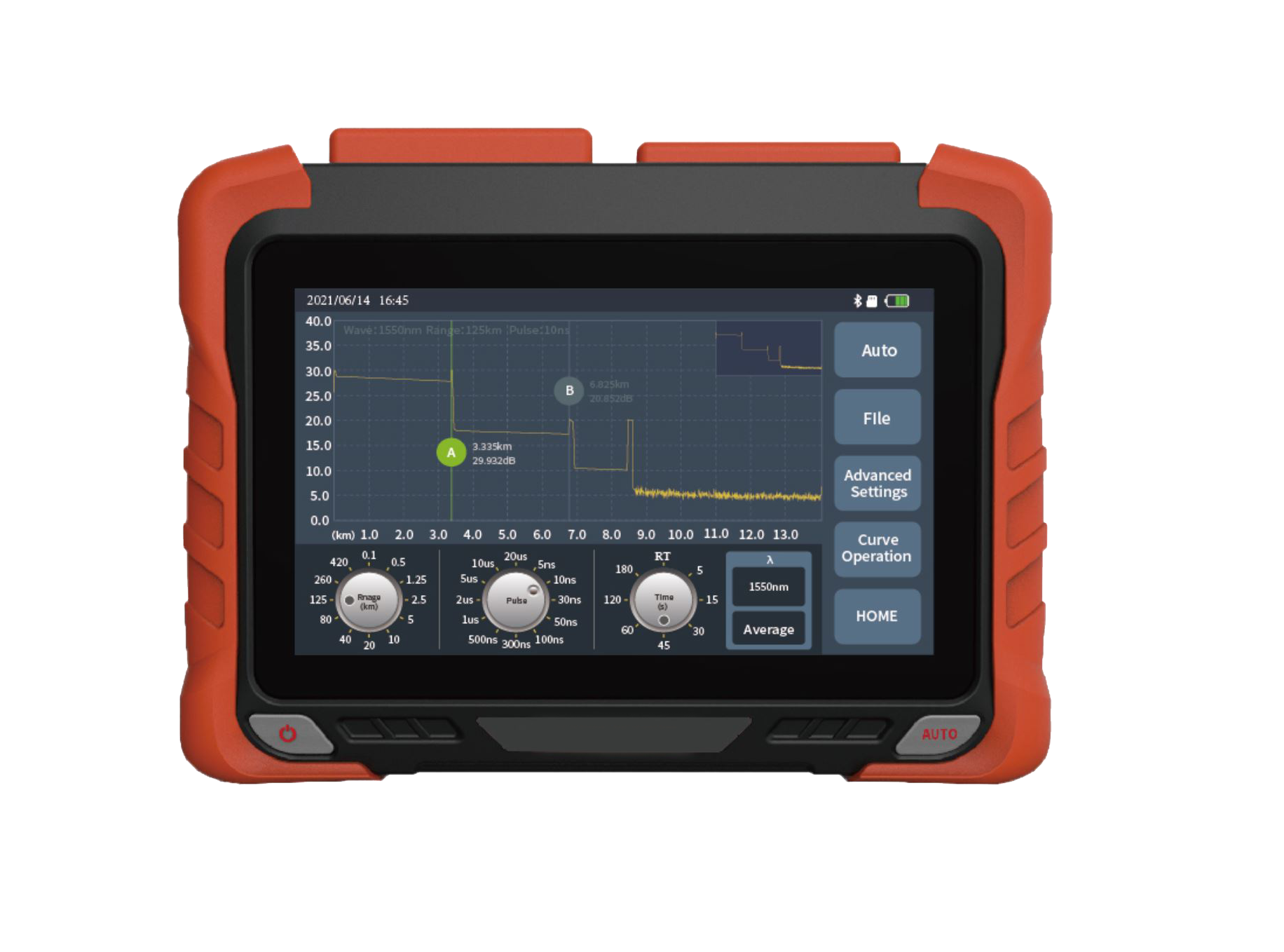

VT-42MP-PON OTDR adopt 7 inch capacitance touch screen, which integrates 9 modules. With excellent intelligent hardware design, the accuracy of short fiber test and automatic test is higher. It can test 1:64 splitter. It is equipped with rich Ethernet test (Ping/PPOE, etc), support APP control.
VT-42MP-PON OTDR is used to test the optical fiber length, loss and connection quality, and used in the engineering construction, link maintenance test, They are mainly used in urban trunk, bone trunk network and metropolitan area network.
Feature
- 0.5m Event Dead Zone
- Support SM/MM/SM+MM test
- Online detection, effective APD active protection
- Support fast charging protocol and power bank
- Ethernet test, supporting Ethernet Remote Test
- PON network online test
- Maximum dynamic range 45dB
- Mobile APP wireless operation
- Integrate OTDR/VFL/LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/ Remote test/File management.
Specifications
|
OTDR
|
|
Model
|
VT - 42MP - PON
|
|
Fiber Type
|
G.652
|
|
Wavelength
|
1310nm/1550nm±20nm
1625nm±15nm (Filtered)
|
|
Filter
|
High pass>1595nm
Isolation>40dB
(1270nm~1585nm)
|
|
Dynamic Range
|
43dB/41dB/41dB
|
|
Event Blind Zone
|
0.5m
|
|
ATT Blind Zone
|
3m
|
|
PON Blind Zone
|
28m
|
|
Test Range
|
100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km
|
|
Pulse Width
|
3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1000ns/ 2000ns/3000ns/5000ns/8000ns/10000ns/20000ns
|
|
Ranging accuracy
|
± ( 0.75m + Sample interval + 0.005% x Test distance )
|
|
Distance unit
|
Km, m, mi, kft (m displayed for short distances)
|
|
Loss accuracy
|
± 0.03dB / dB
|
|
Sampling Points
|
≥256k
|
|
Sampling resolution
|
≤5cm
|
|
Display span
|
0 ~ 40dB
|
|
Display resolution
|
≤ 1cm
|
|
Reflection accuracy
|
± 2dB
|
|
Loss Resolution
|
±0.001dB
|
|
Loss Threshold
|
0.01dB
|
|
Refractive index
|
1.0 ~ 2.0 , in steps of 0.0001 (IOR Setting)
|
|
Cursor resolution in
approx
|
± 0,01dB
|
|
Display resolution is
approx
|
± 0,01dB
|
|
Sampling resolution in
approx
|
± 0,01dB
|
|
Threshold
|
-11 to -99 dB in 1 dB step
|
|
File format
|
SOR Standard file format
|
|
Loss Analysis
|
4 - point method / 5 - point method
|
|
Laser Safety Level
|
Class II
|
|
Data Storage
|
Internal storage: 2GB, 220.000 curves ; External storage: 64GB
|
|
Connector
|
SC/APC of UPC ( Interchangeable FC , ST )
|
|
Refresh Rate
|
4Hz ( Typ . )
|
|
Data Interface
|
USB-A , Type-C port, RJ45 LAN 10M/100Mbit/s
|
|
OPM
|
|
Wavelength range
|
800nm ~ 1700nm
|
|
Connector
|
Universal FC / SC / ST
|
|
Test scope
|
-50dBm ~+ 26dBm / -70dBm ~+ 6dBm
|
|
Uncertainty
|
± 5 %
|
|
Calibration wavelength
|
850nm /980nm /1300nm /1310nm /1490nm /1550nm /1625nm /1650nm
|
|
LS
|
|
Laser Type
|
FP-LD
|
|
Wavelength
|
Consistent with OTDR output wavelength
|
|
Output power
|
≥ -5dBm
|
|
Mode
|
CW/270Hz/1Hz/2Hz
|
|
Stability
|
CW , £ 0.5dB / 15min ( Test after 15 minutes of boot - up preheating )
|
|
Connector
|
SC/APC of UPC ( Interchangeable FC , ST )
|
|
VFL
|
|
Wavelength
|
650nm ±20nm
|
|
Output Power
|
≥ 10mW
|
|
Mode
|
CW / 1Hz / 2Hz
|
|
Laser SafetyLevel
|
Class III
|
|
Distance
|
≥10km
|
|
Connector
|
FC / SC / ST
|
|
Others
|
|
Display
|
7 inch Color LCD + Touch Screen Resolution: 800x480
|
|
Software updates
|
Via PC or USB
|
|
Power Supply
|
Type-C Adapter : Input : 100V ~ 240V , 50 / 60Hz
Output : 5V/3A, 9V/2A, 12V/1.5A ,
Lithium - Battery : 3.7V, 10680mAh
|
|
Operating Temperature
|
-100C ~ + 500C
|
|
Storage Temperature
|
-400C ~ + 700C
|
|
Relative Humidity
|
0 ~ 95 % Non Condensing
|
|
Weight
|
≤ 1.2kg
|
|
Size
|
215mm x 160mm x 50mm
|
