Overview

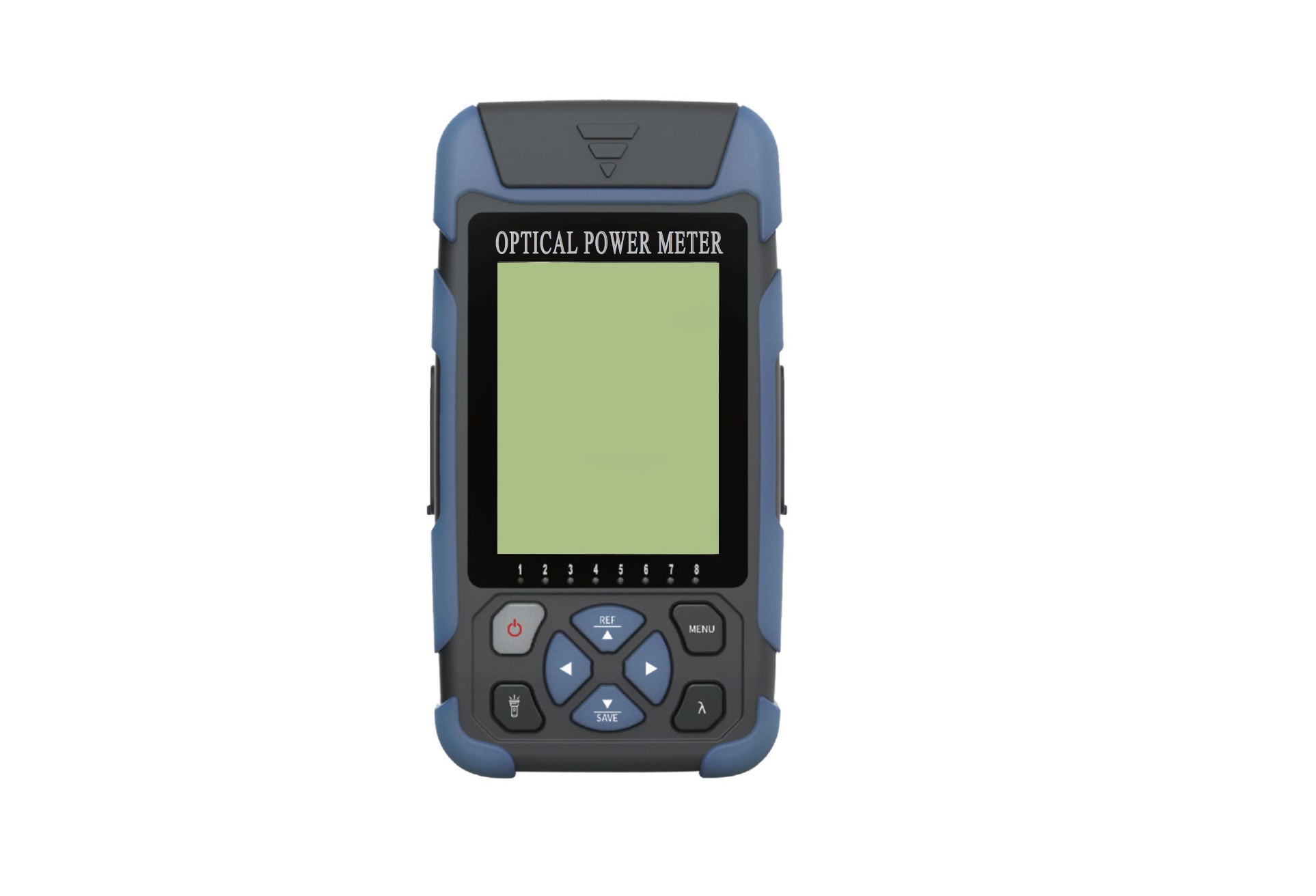

VT–42PPM-XG optical power meter can measure the power value of uplink and downlink signals of GPON/EPON and XGPON/XGSPON networks, including 1270nm/1310nm uplink signal power. 1490nm/1577nm downlink signal power is measured by split wave. At the same time, it integrates other functions such as: VFL optical inspection, cable sequencing, length and RJ45 cable tracking. VT–42PPM-XG can measure all PON signals and can also measure each wavelength separately, which is an ideal choice for PON network engineering, construction and maintenance. By setting different thresholds corresponding to different wavelengths, the PON power meter has a "PASS/FAIL" fiber certification detection function to ensure that service providers improve system performance life by verifying network connections, so that engineering contractors have high-level critical certification tools to provide customers with reliable network projects.
Feature
- Support GPON\EPON\XGPON\XGSPON signal simultaneous measurement
- Power division measurement of 1270/1310nm uplink signal
- Power division measurement of 1490/1577nm downlink signal
- PASS/FAIL threshold setting and calibration wavelength
- Support VFL optical inspection/RJ45 cable sequence/RJ45 cable tracking/RJ45 cable length
- Data can be saved and viewed, support up to 1200 results
- Easy to use: highly intuitive interface and 2.8 inch color LCD screen
- Robust and rugged: IP54 design for dust and water resistance for high durability
- Automatic shutdown can be set.
Specifications
|
v 10G PON OPM
|
|
Model
|
VT-42PPM-XG
|
|
Wavelength
|
1270nm±10nm | 1310nm±10nm | 1490nm±10nm | 1577nm±10nm
|
|
Measuring range
|
-35~+10dBm | -35~+10dBm | -40~+12dBm | -40~+25dBm
|
|
Isolation
|
>50dB
|
|
Uncertainty
|
≤0.5dB
|
|
Insertion loss
|
≤1.5dB
|
|
Detector type
|
InGaAs
|
|
Display Resolution
|
0.01dB
|
|
Fiber type
|
SM 9/125µm
|
|
Connector
|
SC/APC
|
|
v VFL
|
|
Wavelength
|
650nm±20nm
|
|
Output Power
|
≥10mW
|
|
Mode
|
CW/1Hz/2Hz
|
|
Laser SafetyLevel
|
Class III
|
|
Connector
|
FC/SC/ST
|
|
Distance
|
≥10km
|
|
v Measure Rj45 Network Cables
|
|
Distance
|
≤300m
|
|
Distance unit
|
m/ft
|
|
Cable sequence
|
Yes
|
|
Cable tracking
|
Yes (optional)
|
|
v Others
|
|
Display
|
2.8inch LCD color, 320*480px
|
|
External storage
|
1200
|
|
Data Interface
|
Type-C
|
|
Power supply
|
Adapter: 5V DC - 2A
|
|
Polymer Li-Battery: 3.7V, 1550mAh
|
|
Battery life
|
Measuring time ~14h ; Standby ~22h;
|
|
Operating temperature
|
-10℃ ~ + 50℃
|
|
Storage temperature
|
-40 ℃ ~ + 70℃
|
|
Relative humidity
|
0 ~ 95%, non-condensing
|
|
Size
|
140mm × 32mm × 73mm
|
|
Weight
|
255g
|
