Overview

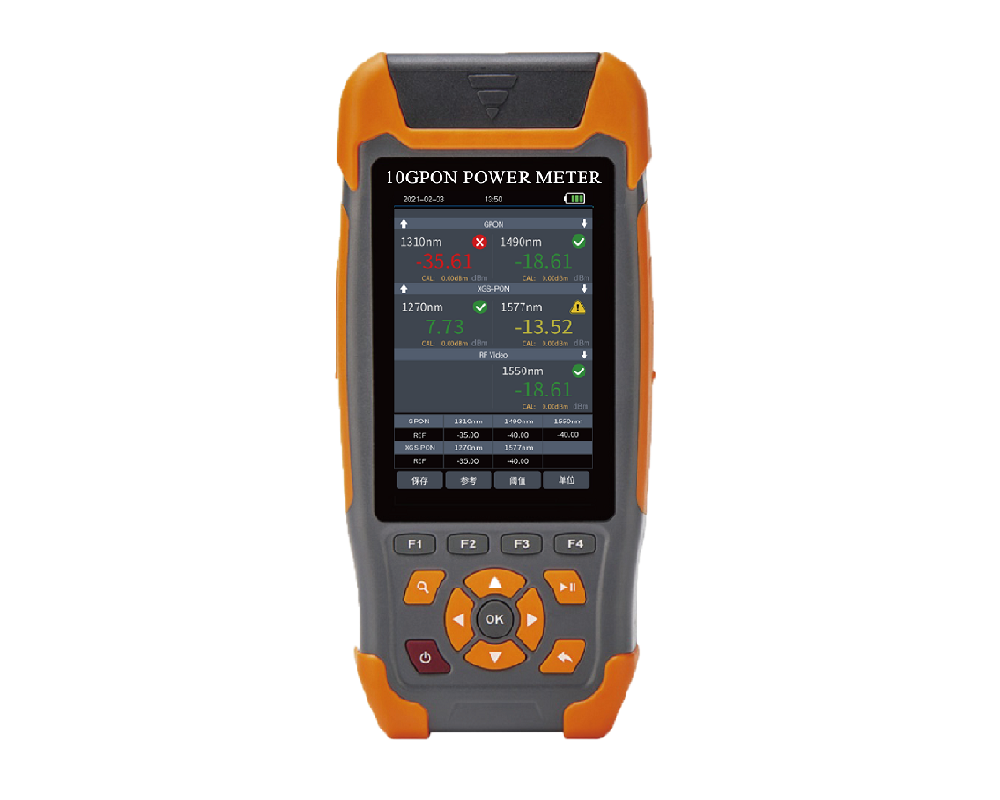

VT-42OPM 10G PON Optical Power Meter can measure the power of GPON/EPON and XGPON/XGSPON network uplink and downlink signals, including uplink 1270nm/1310nm signal, and downlink 1490nm/1550nm/1577nm signal. It integrates 5 functions, such as VFL, RJ45 Cable sequence, length and tracking test. It can simultaneously test and judge the optical power value of voice, data and video signals. It can measure all PON signals, and can also measure each wavelength separately. It is an ideal choice for PON network engineering, construction and maintenance. As a new generation of intelligent hand-held instrument, PON power meter has the function of "Pass/Fail" optical fiber authentication detection by setting different thresholds corresponding to different wavelengths, which ensures that service providers can improve the system performance life by verifying network connectivity. So engineering contractors have high-level key authentication tools to provide customers with reliable network engineering.
Feature
- Support simultaneous measurement of GPON/EPON/XGPON/XGSPON/RF signals
- Measure the power division of downlink signals at 1490/1550/1577nm
- Measure the power division of uplink 1270/1310nm cluster signals
- Support synchronous testing of voice, data and video test signals on PON architecture
- The device can set PASS/FAIL threshold and calibration wavelength
- Data can be saved and viewed, supporting up to 1200 results
- Easy to use: highly intuitive interface and 3.5inch color LCD screen
- Robust and rugged: IP54 design for dust and water resistance for high durability
- Integrated broadband power measurement mode and VFL
Specifications
|
10G PON OPM
|
|
Model
|
VT-42OPM 10G PON
|
|
Wavelength
|
1270nm±10nm | 1310nm±10nm | 1490nm±10nm | 1550nm±10nm | 1577nm±10nm
|
|
Measuring range
|
-35~+10dBm | -35~+10dBm | -40~+12dBm | -40~+25dBm | -40~+12dBm
|
|
Isolation
|
>50dB
|
|
Uncertainty
|
≤0.5dB
|
|
Insertion loss
|
≤1.5dB
|
|
Detector type
|
InGaAs
|
|
Display Resolution
|
0.01dB
|
|
Fiber type
|
SM 9/125µm
|
|
Connector
|
SC/APC
|
|
VFL
|
|
Wavelength
|
650nm ±20nm
|
|
Output Power
|
≥ 10mW
|
|
Mode
|
CW / 1Hz / 2Hz
|
|
Laser SafetyLevel
|
Class III
|
|
Distance
|
≥10km
|
|
Connector
|
FC / SC / ST
|
|
Measure Rj45 Network Cables
|
|
Distance
|
≤300m
|
|
Distance unit
|
m/ft
|
|
Cable sequence
|
Yes
|
|
Cable tracking
|
Yes
|
|
Others
|
|
Display
|
3.5inch LCD color, 320*480px
|
|
External storage
|
1200
|
|
Data Interface
|
Micro USB
|
|
Power supply
|
Adapter: 5V DC - 2A.
|
|
Polymer Li-Battery: 3.7V, 4250mAh
|
|
Battery life
|
Measuring time ~14h ; Standby ~22h;
|
|
Operating temperature
|
-10℃ ~ + 50℃
|
|
Storage temperature
|
-40 ℃ ~ + 70℃
|
|
Relative humidity
|
0 ~ 95%, non-condensing
|
|
Size
|
173mm × 82mm × 37mm
|
|
Weight
|
300g
|
