Overview

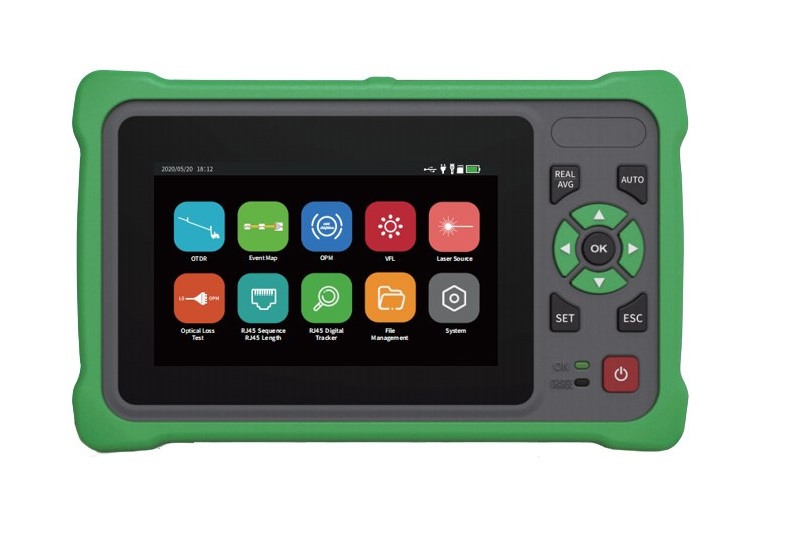

VT- 42MP AS mini handheld OTDR meter is is a multi-functional optical measuring instrument, which integrates OTDR, event map, optical power meter, visual fault location,light source, optical loss test, cable line length / sequence test, cable tracking and other functions. It has touch screen and heys. It is the right assistantfor optical cable construction, installation and maintenance, project acceptance and on-site repair.
Feature
- The meter optimally integrates the most necessary fiber optic cable testing and maintenance functions including OTDR/OPM/LS/OFR/VFL/OLT/Event Map and RJ45 network cable testing at the lowest cost.
- Event Map function: allows to build a map of optical path characteristics intelligently and automatically, requiring only one button operation. The map displays complete information about the components on the test cable route (welds, connectors, start points, end points...).
- Expert measurements for setting parameters such as: first compensation coil length, end compensation coil length, cable length, pulse width, average measurement time.
- The meter has a built-in compensation coil to detect the first event of the cable line, helping the tester not have to carry a compensation coil.
- The device has the ability to detect whether there is a signal on the optical path (helping technicians identify the optical path with a signal).
- The meter can be connected via USB to a PC to conveniently transfer result files to a computer, with support for the included measurement result file compilation software.
- The meter supports connection to smartphones and tablets via bluetooth to help users easily control, operate remotely, and export data when measuring in the field.
- The meter design is compact, sturdy, convenient and has an impact-resistant, dust-proof (IP5X), and waterproof (IPX2) case. Easy to carry and maintain.
- 4.3” color LCD touch screen with 800*480pixel resolution, allowing full screen display of measurement results. Comes with a nice, compact, shockproof carrying bag for the meter.
- Short startup time, less than 05 seconds. Fast measurement time with just one press, automatically giving measurement results after 5 seconds. Optional support for measurement results after 5s; 15s … 180s.
- The meter supports multi-function probes compatible with SC/APC or SC/UPC standards, supporting conversion.
- Built-in high-capacity Lithium battery up to 5400 mAh, can use for 12 hours of continuous measurement and standby mode for more than 20 hours, with optional battery saving mechanism: screen turns off automatically after 10 minutes; 30'; 2min; 5min; 10min; not turned off. There is an automatic shutdown mode after: 5'; 15'; 30'; 60'; 120'; not turned off.
- Charge the battery using the USB Type-C port (similar to a common smart phone), extremely convenient for users.
Specifications
|
OTDR
|
|
Model
|
|
|
Function
|
4.3 "Touch LCD.1310/1550NM, OTDR+VFL+LS+OPM+OLT+Ofr+Event Map (Event map) |
|
Wavelength
|
1310nm/1550nm±20nm
|
|
Dynamic Range
|
30/28 dB
|
|
Event Blind Zone
|
1.5 m
|
|
ATT Blind Zone
|
8 m
|
|
Pulse Width
|
3ns ~ 20µs
|
|
Distance range
|
0.1/0.3/0.5/1.25/2.5/5/10/20/40/80/125/260km
|
|
Ranging Accuracy
|
± (0.75m + 3 x measuring distance x 10-5 + cursor resolution), (not including IOR error) |
|
Distance unit
|
Km, m, mi, kft (m displayed for short distances) |
|
Linearity
|
± 0.03dB / dB
|
|
Sample Points
|
≥160K
|
|
Sampling resolution
|
≤5cm
|
|
Display range
|
1.25dB ~ 40dB
|
|
Display resolution
|
≤ 1cm
|
|
Refractive index
|
1.0 ~ 2.0, in step 0.0001 (Ior Setting) |
|
Cursor resolution in approx
|
± 0,01dB
|
|
Display resolution is approx
|
± 0,01dB
|
|
Sampling resolution in approx
|
± 0,01dB
|
|
Threshold
|
-11 to -99 dB by step 1 dB |
|
Data storage
|
8GB （≥20 000 Measuring graph） File format: .sor
|
|
Laser Safety Level
|
Class II
|
|
Connector
|
SC/APC or SC/UPC
|
|
Check connector
|
Yes
|
|
Distance measurement method
|
Automatically or through the cursor
|
|
OPM
|
|
Wavelength
|
800nm ~ 1700nm
|
|
Measurement range
|
-50dBm ~ + 26dBm or-70dBm ~ + 10dBm
|
|
Uncertainty
|
± 5 %
|
|
Frequency Identification
|
CW/270/330/1kHz/2kHz
|
|
Calibration Wavelength
|
850nm /980nm /1300nm /1310nm /1490nm /1550nm /1625nm /1650nm
|
|
Connector
|
FC/SC/ST universal connector |
|
LS
|
|
Laser type
|
FP-LD
|
|
Wavelength
|
1310nm/1550nm±20nm
|
|
Output capacity
|
≥ -5dBm
|
|
Mode
|
CW/270/330/1kHz/2kHz
|
|
Stability
|
CW, ±0.5dB/15min |
|
Optical port
|
SC/APC or SC/UPC
|
|
VFL
|
|
Wavelength
|
650nm ±20nm
|
|
Output Power
|
≥ 10mW
|
|
Mode
|
CW / 1Hz / 2Hz
|
|
Laser Safety Level
|
Class IIIR
|
|
Distance
|
≥10km
|
|
Connector
|
FC / SC / ST
|
|
RJ45
|
|
Distance
|
300 m
|
|
Distance unit
|
m/km/ft
|
|
Test cable sequence
|
Yes
|
|
Test cable tracking
|
Yes
|
| OTHERS |
|
Display
|
4.3" LCD color touch screen (800*480pixel) |
|
Data Interface
|
USB Type-C
|
|
Wireless Connectivity
|
Bluetooth
|
|
File format
|
.SOR, Bellcore standard file format
|
|
Software updates
|
Via PC or USB |
|
Power supply
|
AC voltage converter 100-240VAC, 50/60 Hz to 5VDC - 2A.
|
| Lithium rechargeable battery: 3.7V, 5400mAh |
|
Battery use time
|
Continuous measurement state ~ 12 hours; Waiting status ~ 20 hours |
|
Operating Temperature
|
-100C ~ + 500C
|
|
Storage Temperature
|
-400C ~ + 700C
|
|
Relative Humidity
|
0～95％Non Condensing
|
|
Weight
|
≤ 500g
|
|
Size
|
173×109×45mm
|
Product Documentation
Please contact us for more detailed information.
