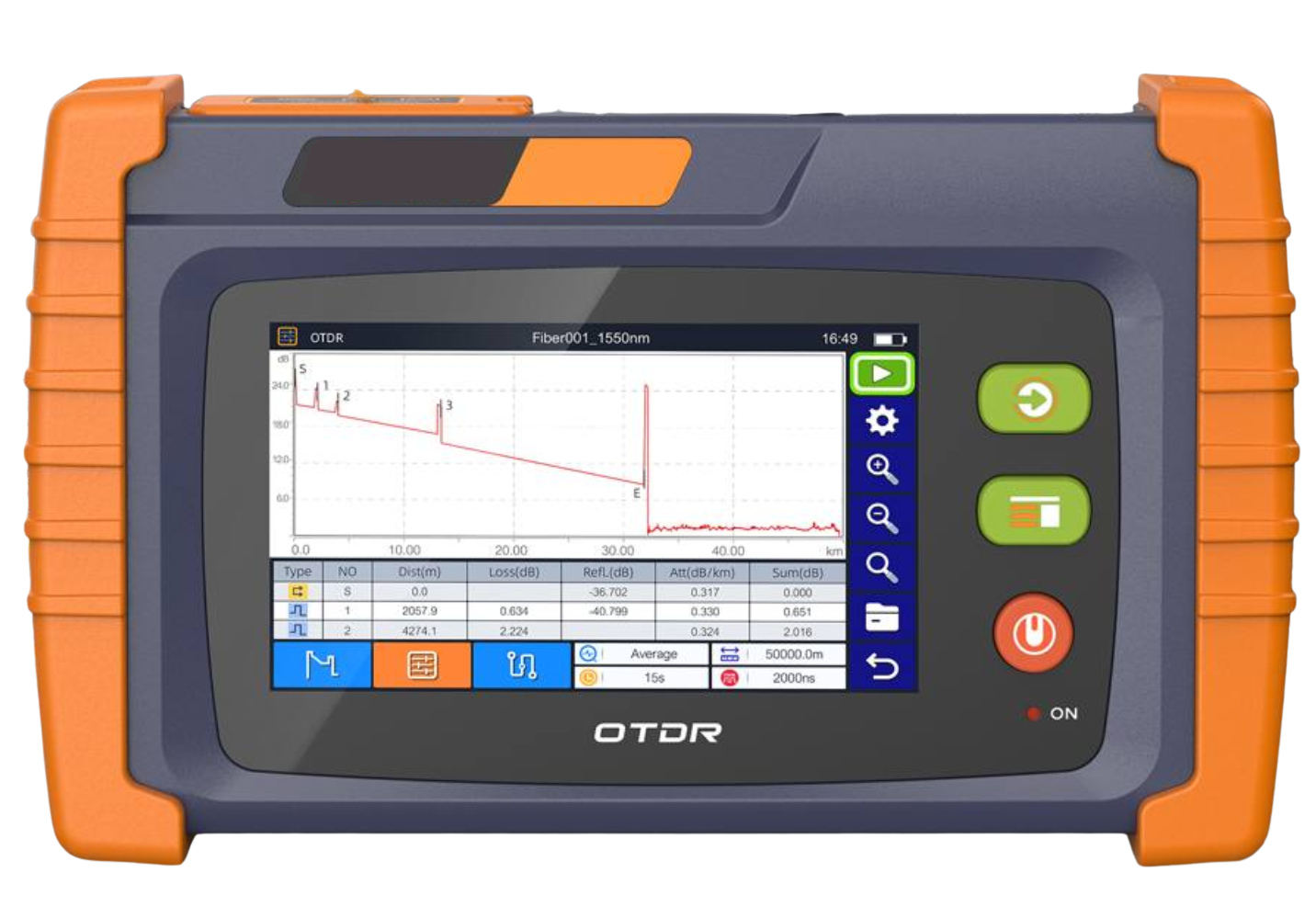

OTDR
|
|
Model
|

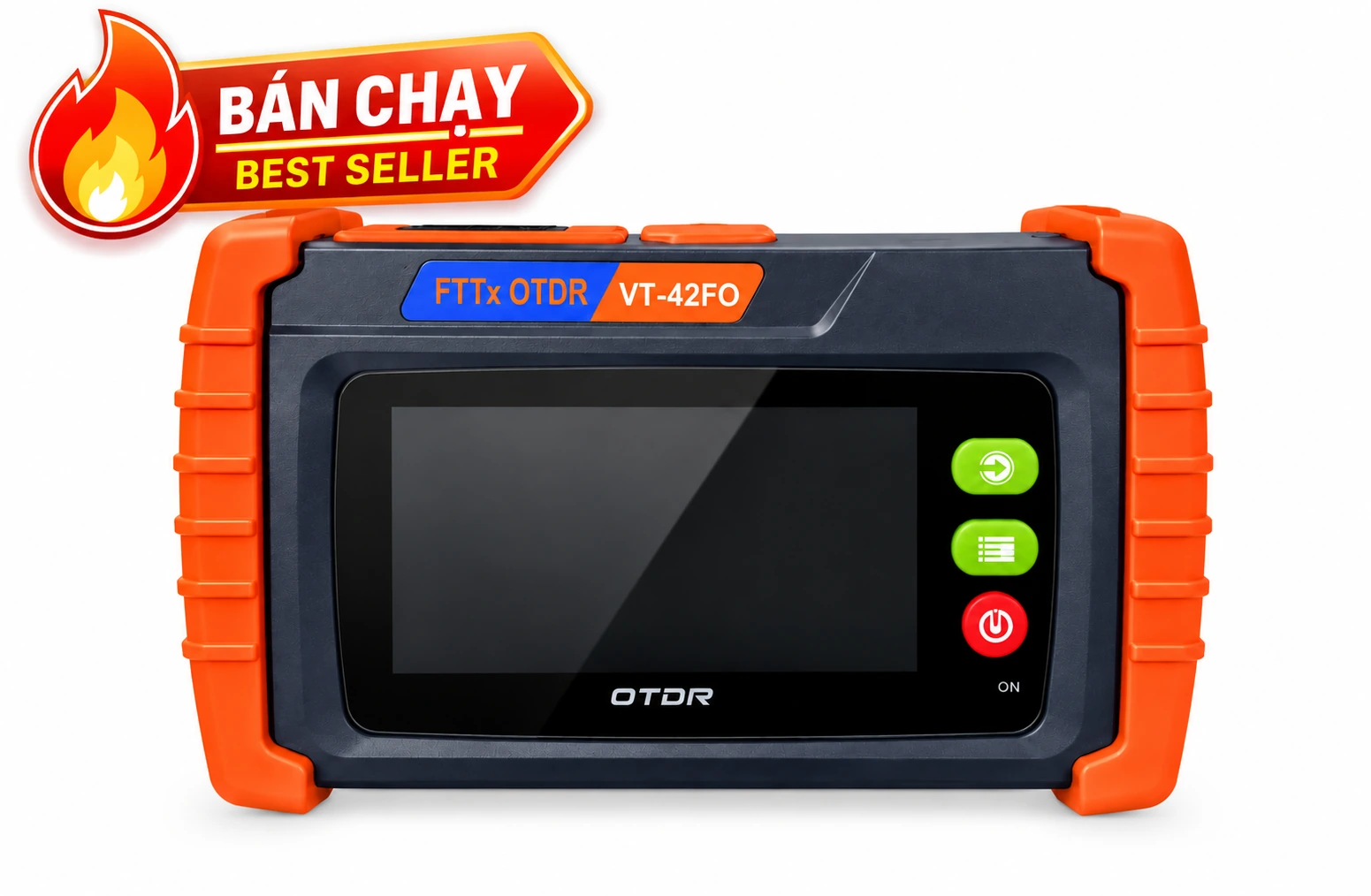

VT-42FO
|
|
Wavelength (nm)
|
1310/1550±20
|
|
Dynamic range (dB)
|
31/29
|
|
Event blind spot(m)
|
≤1.5
|
|
Attenuation blind zone(m)
|
≤5
|
|
Number of fiber interfaces
|
1 SC/APC
|
|
Applicable optical fiber
|
SM
|
|
Maximum measuring distance
|
150km
|
|
Range(Km)
|
0.5, 1, 2, 5, 10, 20, 35, 50, 75, 100, 150
|
|
Distance accuracy(m)
|
± (1m + measurement distance × 2 × 10 − 5 + collection point resolution)
|
|
Pulse width(ns)
|
5,10, 20, 50,100, 200, 500,1000, 2000,10000, 20000
|
|
Number of sampling points
|
≥15000
|
|
Sampling resolution(m)
|
0.04m
|
|
Loss accuracy
|
±0.03 dB/dB
|
|
Reflection accuracy
|
±2dB
|
|
|
OPM
|
|
Measurement wavelength range
|
800~1700nm
|
|
Correction wavelength(nm)
|
850,1270,1300,1310,1490,1550,1577,1625,1650
Support XGPON/XGSPON (1270,1577)
|
|
Measurement power range
|
-70~6dBm
|
|
Measurement accuracy
|
<(±0.2dB or ±5%)
|
|
Display resolution
|
0.01dB
|
|
Power meter interface
|
FC/UPC + 2.5 mm Universal Connector
|
|
|
LS
|
|
Wavelength (nm)
|
1310/1550
|
|
Output power
|
≥-10dBm
|
|
Modulation frequency
|
CW, 270Hz, 1kHz, 2kHz
|
|
Laser safety rating
|
Class 1M or Class 1
|
|
Built-in optical fiber interface
|
OTDR optical port
|
|
|
VFL
|
|
Wavelength (nm)
|
650
|
|
Output Power
|
10mW
|
|
Modulation mode
|
CW, CHOP (2 Hz)
|
|
Laser safety rating
|
Class 3R
|
|
Optical fiber interface
|
2.5 mm universal connector for FC, SC, ST
|
|
|
RJ45
|
|
Applicable network cable
|
CAT5，CAT6
|
|
Alignment length
|
300m
|
|
Maximum audio transmission distance
|
300m
|
|
|
General parameters
|
|
Link diagram
|
√
|
|
Pass/Fail display
|
x
|
|
Distance unit
|
km
|
|
PC side analysis software
|
√
|
|
Language
|
English, Spanish, French, Portuguese, Russian
|
|
Optical fiber interface
|
SC/APC
|
|
Display screen
|
4.3-inch color LCD Touch screen (resolution: 800x480)
|
|
Interface
|
Type-c charging interface x1, USB 2.0 x1, RJ45 x1
|
|
Operating temperature
|
-10-50 ℃ (0-40 ℃ connected to power supply, 0 to 35 ℃ battery charge)
|
|
Storage temperature
|
-20 to 60°C
|
|
Elevation
|
4000 m
|
|
Humidity
|
0 to 90% RH (at: 20%-90% 739874 AC adapter, no frost)100-240V AC, 50/60 Hz (AC adapter)
|
|
Power supply mode
|
100-240V AC, 50/60 Hz (AC adapter)
|
|
Battery
|
3.7V, 6000mAh, >22Wh
|
|
Illumination lamp
|
Light intensity ≥ 15000 mcd
|
|
Working hours
|
5 hours
|
|
Data Storage
|
Memory: ≥ 1000 test curve; External storage: USB
|
|
Dimensions
|
179 mm (W)x112 mm (H)x 48 mm (D)
|
|
Weight
|
0.6 kg (mainframe only with battery)
|
