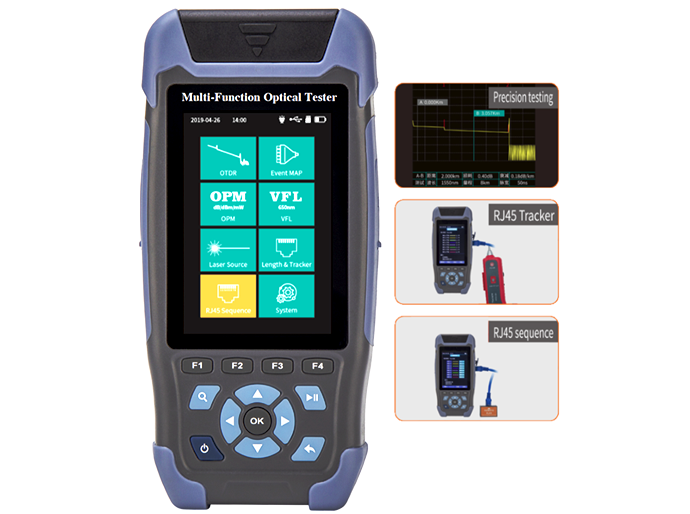

VT-42MP mini Pro OTDR

The VT-42MP multi-function handheld meter is a photoelectric meter (9-IN-1), which supports multi-function on optical fiber and RJ45 network cables in just one compact hand-held device including: optical measurement OTDR, optical power measurement (OPM), optical signal source (LS), fiber optic breakpoint (OFR), fiber optic detection (VFL), visual mapping of events on fiber optic cables ( iLOM), test network cable standards, detect network cables and measure network cable length (RJ45 connector).

Optimal equipment used in the construction, maintenance and testing of fiber optic networks. Because it integrates most of the functions required for onsite, it is very suitable for telecommunications technicians to be used as an all-in-one tool for installation, repair, operation and maintenance. fiber optic network and internal cable network at customer's house.

• The meter integrates optimally with the most essential fiber optic maintenance and test functions including OTDR/OPM/LS/OFR/VFL/iLOM and RJ45 network cable testing at the lowest cost.
• The OTDR function is capable of measuring up to more than 64km and the dark (unmeasured) area is short.
• The OPM function measures up to 8 wavelengths, optionally with a universal optical connector, which can measure optical power from -50dBm ~ +26dBm or -70dBm ~ +10dBm.
• iLOM function: allows intelligent and automatic construction of optical characteristic maps with just one button operation. The map displays complete information about the components on the test cable route (welds, connectors, ...).
• The meter has the ability to store over 1000 graphs of measurement results and has the ability to expand storage by inserting an external memory card via the micro-SD card slot and the firmware update feature is also done via micro_SD card. The meter can be connected by USB to a PC to facilitate the transfer of the result file to the computer, which supports the accompanying measurement file compilation software.
• VFL function detects fiber quickly with laser power greater than 10mW.
• The meter design is extremely compact, sturdy, handy and has an impact-resistant, dust-proof, water-resistant case. Easy to carry and maintain. Large 3.5" color LCD with bright backlight displays results clearly. Comes with a beautiful, compact, shockproof carrying bag for the meter.

• Short start-up time, less than 05s. Fast test time with just one press, automatically giving measurement results after 15 seconds. Optional support for measuring results after 5s; 15s…180s.
• The meter supports a universal probe compatible with FC/UPC, SC/UPC or SC/APC standards, which can be converted to standards by jumper.
• Built-in high capacity Lithium battery up to 4000 mAh, can be used for 12 hours of continuous measurement and more than 20 hours of standby, with optional battery saving mechanism: the screen turns off automatically after 10'; 30'; 1h; do not turn off.
• Charge the battery with a Micro USB port (similar to a common smart phone), extremely convenient for users.

USB disk (contains software to compile measurement results file + user manual)

Documentation: User Manual,...

(*): Standard OTDR connector can select SC/UPC, SC/APC at the time of meter ordering
