Overview

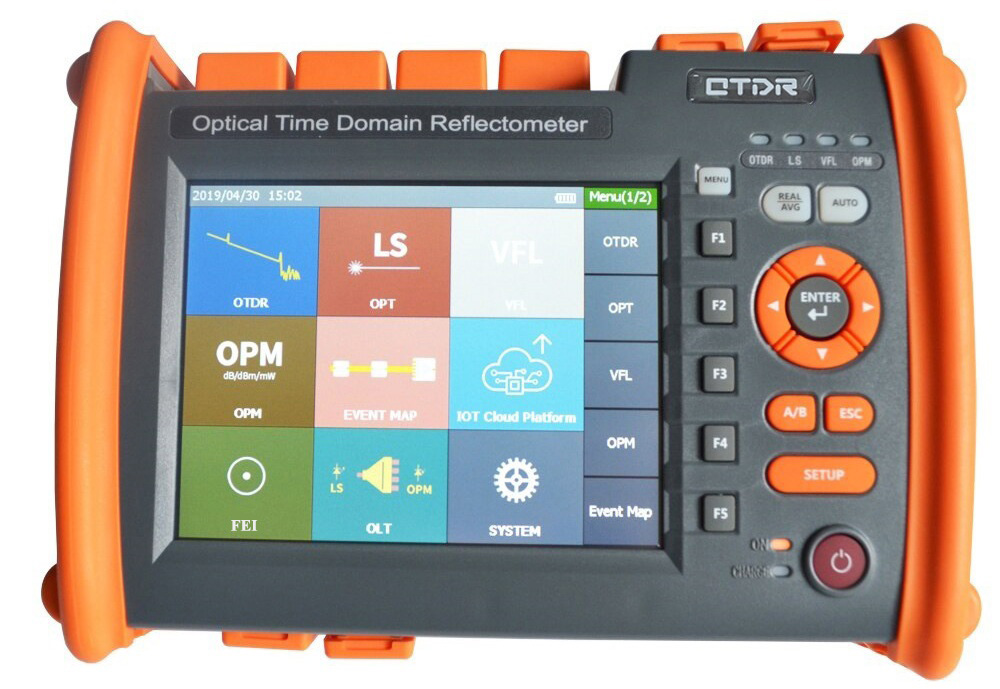

The VT-42MP-CS is a multifunctional OTDR meter with a 5.6 inch color touch screen and keypad. The machine integrates many features such as OTDR measurement displaying visual fault location results (EVENT MAP) or event map, optical power meter (OPM), optical power output (LS), red light ( VFL), fiber optic loss measurement against reference value (OLT), optical connector endoscope (FEI) (optional)…. help customers effectively solve the troubleshooting and maintenance of fiber optic networks. The machine integrates intelligent power management and use technology, 20 hours of super long standby, effectively ensuring the processing and maintenance of fiber optic networks in the field. It is used to measure the length, attenuation, connection quality and other parameters of optical fibers. It can be widely used in engineering construction, line maintenance inspection and emergency repair of fiber optic communication systems, fiber optic cable manufacturing research and measurement.
Feature
- 1m event blind spot, easy to test 5m . jump rope
- Automated testing with the push of a button
- Automatic warning if laser detected during online test
- Standard SOR file output format
- Function of automatic analysis of test results
- Simultaneous testing with multiple wavelengths
- Process large amounts of data and print the resulting patterns
- Interface in English
- Dual operation mode on touch screen + key
- Extremely wide operating temperature
Specifications
| |
OTDR MEASUREMENT FUNCTION |
| Fiber Type |
G.652 |
| Wavelength |
1310nm ±20nm / 1550nm ± 20nm |
| Dynamic range |
32dB / 30dB |
| Event blind spot |
1m |
| Blind spot loss |
6m |
| Measuring distance |
5m ~ 256km |
| Measuring range |
500m / 1km / 2km / 4km / 8km / 16km / 32km / 64km / 128km / 256km |
| Pulse Width |
5ns / 10ns / 30ns / 50ns / 80ns / 160 ns / 320ns / 500ns / 800ns / 1000ns / 3000ns / 5000ns / 8000ns / 10000ns / 20000ns |
| Distance measurement error |
±( 0.75m + sampling time + 0.005 % x Measuring distance ) |
| Attenuation measurement error |
± 0.05dB / dB |
| Number of sampling points |
16k - 256k |
| Sampling resolution |
0.05m ~ 16m |
| Reflectance measurement error |
± 3dB |
| File format |
.SOR, standard file format |
| Attenuation analysis |
4-point measurement method / 5-point measurement method |
| Laser safety level |
Class II |
| Data saving |
Internal memory : ≤ 3000 flowcharts ; External memory card: 4G bit |
| Optical connection port |
FC / UPC (can replace SC, ST) |
| Refresh rate |
3Hz ( Typ . ) |
| Data transmission port |
USB , Mini - USB , 10M / 100M . network port |
| |
OPTICAL POWER MEASUREMENT (OPM) FUNCTION |
| Wavelength |
800nm ~ 1700nm |
| Optical connection port |
Universal connector FC / SC / ST |
| Measuring range |
-50dBm ~ + 26dBm |
| Uncertainty |
± 5 % |
| Correction wavelength |
850nm / 980nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm / 1650nm |
| |
LASER SOURCE FUNCTION (LS) |
| Wavelength |
1310nm ±20nm / 1550nm ± 20nm |
| Output power |
≥ -5dBm |
| Stability |
CW, £0.5dB / 15min (Tested after 15 minutes of warm-up - preheat) |
| Optical connection port |
FC / UPC (can replace SC , ST ) |
| |
OPTICAL FUNCTION (VFL) |
| Wavelength |
650nm ±20nm |
| Output power |
≥ 10mW |
| Frequency |
CW / 1Hz / 2Hz |
| Optical connection port |
FC / SC / ST |
| |
OTHERS |
| Display |
5.6 inch Color LCD + Touch Screen |
| Power Supply |
AC / DC Adapter : Input : 100V ~ 240V , 50 / 60Hz , 0.6A Output : 12V ~ 19V , 1.5A , Li - Battery : 7.4V , 5320mAh |
| Battery working hours |
>=10h |
| Operating Temperature |
-10 ° C ~ + 50 ° C |
| Storage Temperature |
-40 ° C ~ + 70 ° C |
| Relative Humidity |
0 ~ 95 % Non Condensing |
| Weight |
<= 1.2kg |
| Size |
208mm X 110mm X 56mm |
