Overview

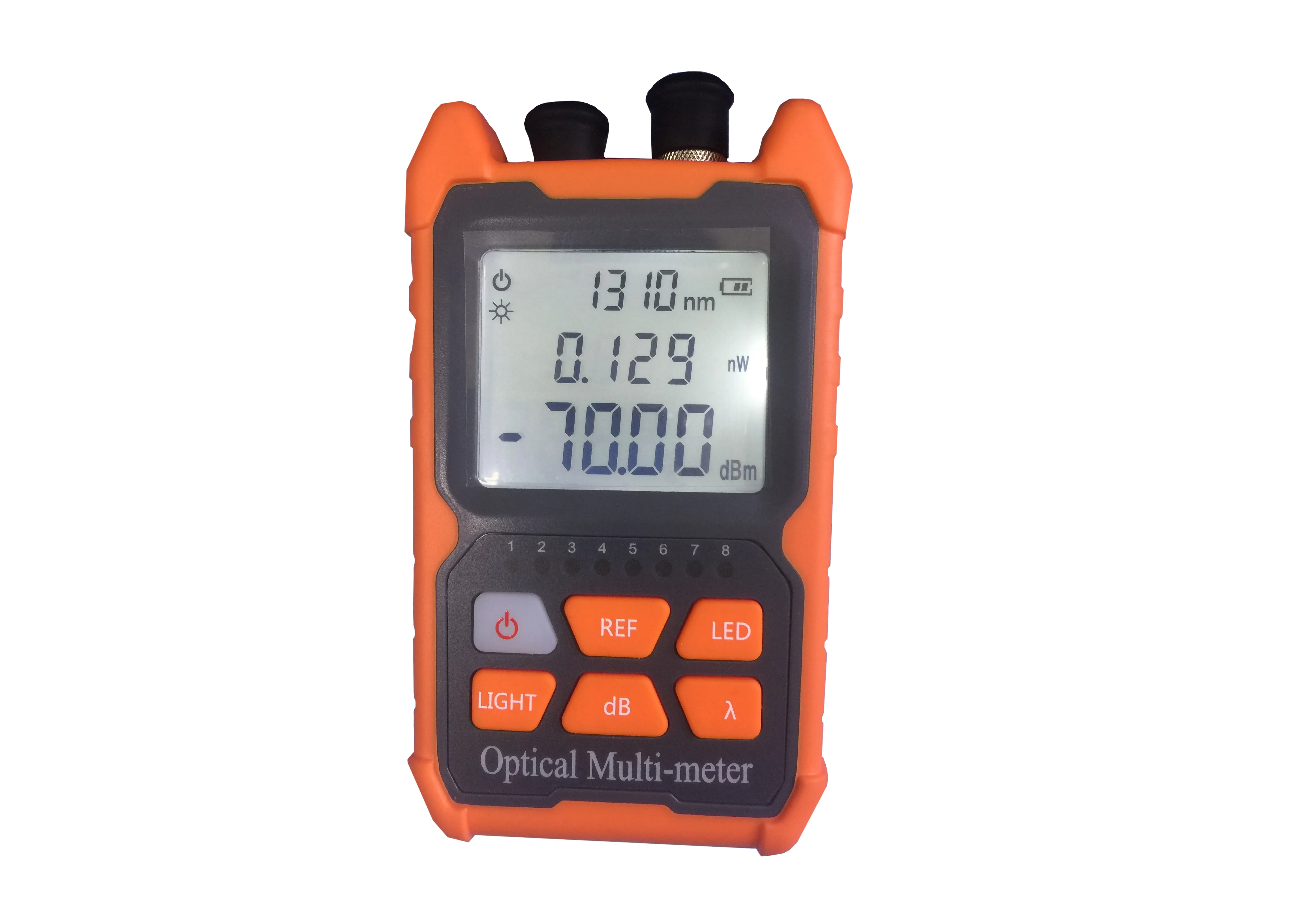

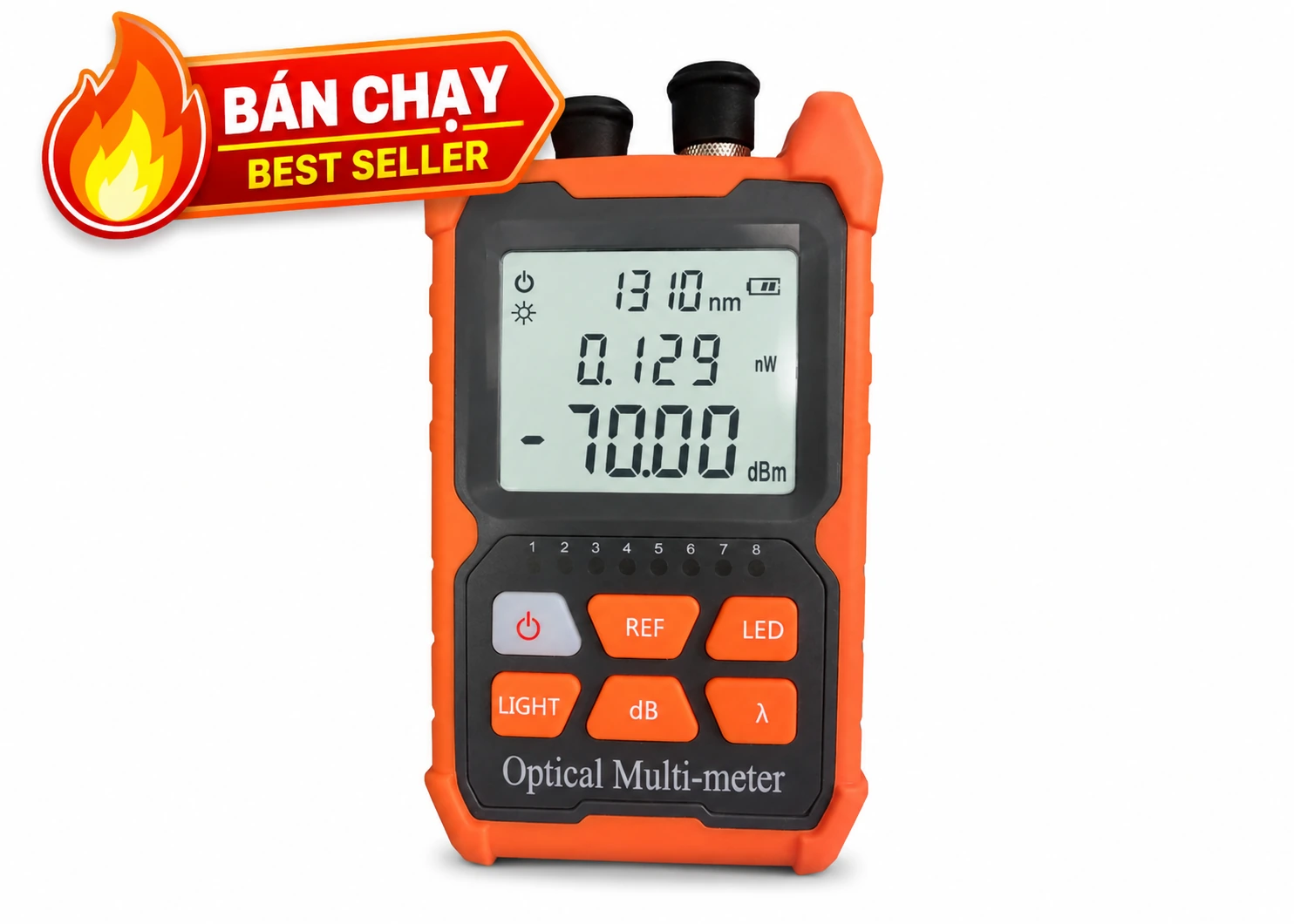

Mini handheld meter VT-42OPC series is a product that integrates optical power measurement (OPM) and red light signal to determine optical fiber (VFL). The machine is used to measure optical signal power, test optical line signal loss and test optical cable breakage. A single microprocessor is integrated to control all measurement and test functions.
Mini handheld meter VT-42OPC series has 2 types:
- VT-42OPC: Uses 2 primary AAA batteries.
In addition, the meter can be powered via a Micro USB port (similar to a common smart phone), which is extremely convenient for users.
- VT-42OPC-C: Use Lithium rechargeable battery 3.7V - 850mAh. Convenient Micro USB charging port.
Feature
- Wavelength Memory Function
- Automatic shutdown
- RJ45 Sequence (option)
- RJ45 Tracker (option)
- Support user calibration
- Recover factory settings
- Supporting SC/FC/ST Interface
- Intelligent Power Saving
- Supporting simultaneous linear (mW) and non-linear (dBm) display
Specifications
| Model |
VT-42OPC-C |
| * OPTICAL POWER MEASUREMENT FUNCTION (OPM) |
| Wavelength |
800mm ~ 1700mm |
| Interface Type |
Universal connector FC/SC/ST |
| Probe type |
InGaAs |
| Measuring range |
-70dBm ~ + 7.2dBm |
| Uncertainty |
± 5% |
| Correction wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
| Display resolution |
Linear display: 0.1%
Show Logarithms: 0.01dBm
|
| * OPTICAL FUNCTION (VFL) |
| Wavelength |
650nm±30nm |
| Output power |
11.3mW |
| Recognition frequency |
CW/1Hz/2Hz |
| Optical connection port |
Universal connector FC/SC/ST |
| * OTHER |
| Supply |
Pin sạc Lithium 3.7V - 850mAh |
| Automatic shutdown time |
10 phút |
| Operating temperature |
-10°C ~ + 50°C |
| Storage temperature |
-40°C ~ + 70°C |
| Relative humidity |
0 ~ 95%, non-condensing |
| Size |
112mm x 66mm x 30mm |
| Weight |
150g |
