Overview

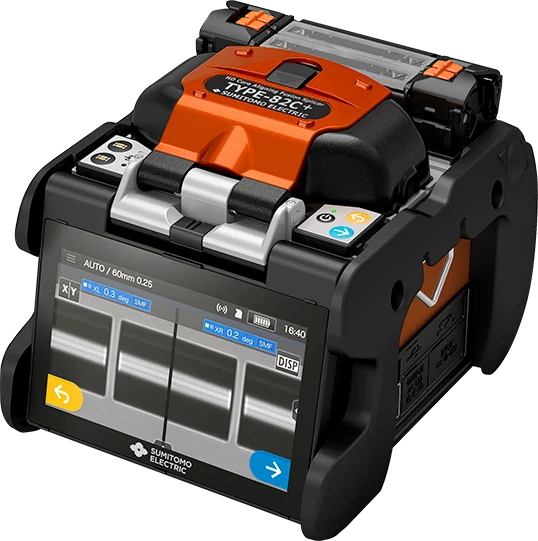

The Sumitomo TYPE-82C+ is a High Definition Core Aligning fusion splicer designed for fiber-optic network installation, deployment and maintenance. It incorporates NanoTune™ AI technology to optimize core alignment and splicing performance under various operating conditions.
The TYPE-82C+ features dual independent automatic heaters, a 5.0-inch WVGA touchscreen, wireless connectivity through SumiCloud™, and extensive splice image and data storage capabilities.
Feature
- High Definition Core Alignment with NanoTune™ technology.
- Typical splice loss:
- SMF: 0.01 dB
- MMF: 0.01 dB
- DSF/NZDSF: 0.03 dB
- Typical splice time of approximately 5 seconds in SM G.652 Quick Mode.
- Typical heating time of approximately 8 seconds with the specified sleeve configuration.
- Dual independent automatic heaters.
- 5.0-inch WVGA color LCD touchscreen.
- Li-ion 10.8V, 6400mAh battery with approximately 320 splice & heat cycles per full charge.
- SumiCloud™ wireless LAN connectivity.
- Automatic fiber identification.
- Automatic splice/oven start.
- Internal storage for 200 images and 10,000 splice data records.
- With SD/SDHC card: up to 50,200 images and 20,000 splice data records.
- Electrode life of approximately 6,000 splices using genuine ER-10 electrodes.
- Operating altitude up to 6,000 m and operating temperature from -10°C to +50°C.
- IP52-equivalent dust and water resistance and 76 cm drop resistance on five faces.
Specifications
| Specification |
TYPE-82C+ |
| Alignment Method |
High Definition Core Alignment |
| Technology |
NanoTune™ |
| Applicable Fibers |
SMF, MMF, DSF, NZDSF, BIF, CSF, EDF |
| Cladding Diameter |
80–150 μm |
| Coating Diameter |
100–1,000 μm |
| Cleave Length |
5–16 mm |
| Typical SMF Splice Loss |
0.01 dB |
| Typical MMF Splice Loss |
0.01 dB |
| Typical DSF/NZDSF Splice Loss |
0.03 dB |
| Return Loss |
≥60 dB |
| Splice Time |
5 sec – SM G.652 Quick Mode |
| Standard Mode Splice Time |
7 sec |
| Heating Time |
Approx. 8 sec* |
| Splice & Heat Cycles |
Approx. 320 cycles |
| Cameras |
2 CMOS cameras |
| Magnification |
380×; 760× zoom for single-axis X/Y view; 270× for dual-axis X/Y view |
| Proof Test |
1.96–2.09 N |
| Applicable Sleeves |
60 mm, 40 mm and Sumitomo Nano Sleeves |
| Splice Programs |
Up to 300 |
| Heating Programs |
Up to 100 |
| Internal Image Storage |
200 images |
| Internal Splice Data Storage |
10,000 records |
| With SD/SDHC Card |
50,200 images / 20,000 data records |
| Display |
5.0" WVGA LCD touchscreen |
| Battery |
Li-ion 10.8V, 6400mAh |
| Electrode Life |
Approx. 6,000 splices |
| Wireless Connectivity |
Wireless LAN / SumiCloud™ |
| Operating Altitude |
0–6,000 m |
| Operating Temperature |
-10°C to +50°C |
| Humidity |
0–95% RH, non-condensing |
| Dust/Water Resistance |
IP52 equivalent |
