Overview

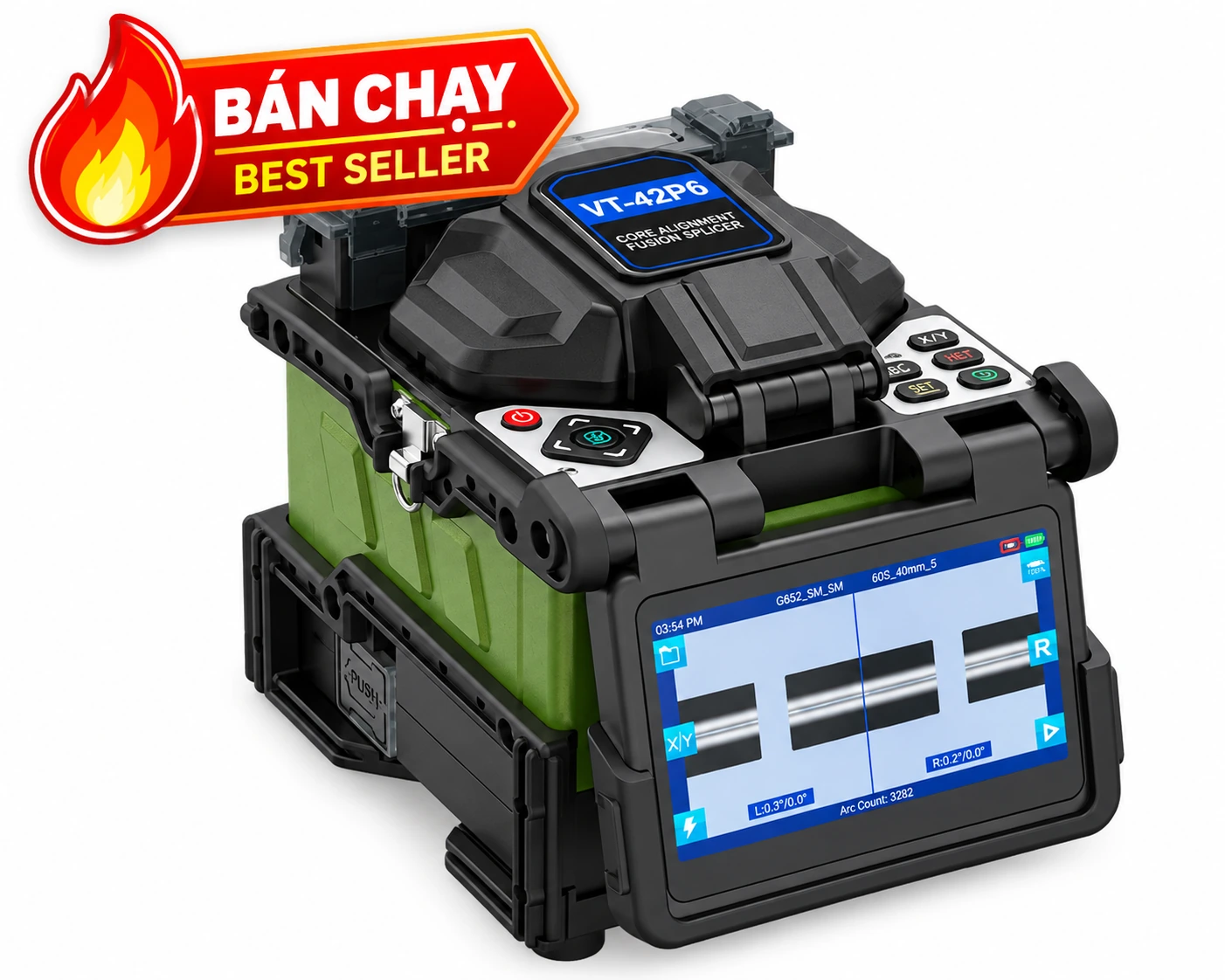

The VT-42P6 Fusion Splicer uses six-motor core alignment technology for precise fiber positioning in both X and Y axes. It is ideal for FTTx installation, telecom maintenance, broadcasting, and industrial applications, ensuring fast and stable splicing in all environments.
Featuring a 4.3-inch capacitive touch screen, the splicer offers 6-second splicing and 16-second heating, powered by a 7800 mAh Li-battery for up to 450 cycles per charge. Its tool-less electrode replacement and durable silicone housing provide easy maintenance and reliable performance in the field.
Feature
- Six-motor core alignment, with 6 s splicing and 16 s heating time.
- 3-inch capacitive color touch display, showing fibers on X, Y, or XY views.
- Tool-less electrode replacement, electrode lifetime up to 5000 arcs.
- High-capacity 7800 mAh Li-ion battery, supports ~450 splice + heat cycles per charge.
- Ultra-low splice loss (0.01–0.04 dB) for consistent joint quality.
- 3-in-1 universal fiber holder, compatible with bare, flat, or pigtail fibers.
- Shockproof, dustproof (IP5X), and splash-resistant (IPX2) construction.
- Auto ARC calibration compensates for temperature and air pressure.
- Internal memory stores up to 10 000 splice records and 2 000 images.
- Supports dual-layer cooling tray and cleaver platform for efficient field operation.
- Complies with ITU-T and IEC standards for global fiber-optic networks.
Specifications
|
Model
|
VT-42P6
|
|
Splice Method
|
Core Alignment
|
|
Applicable Fibers
|
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
|
|
Compatible Fiber/Cable
|
0.25~3.0 mm / Rubber-insulated fiber cable
|
|
Fiber Holder
|
Replaceable universal fiber holder
|
|
Fiber Diameter
|
Cladding: 80-150µm, Coating: 100-1000µm
|
|
Fiber Cleave Length
|
8~16 mm
|
|
Splice Mode
|
Max 128 modes
|
|
Typical Splice Loss
|
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB
|
|
Return Loss
|
>>60dB
|
|
Typical Splice Loss
|
SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB /
G.657: 0.02dB(ITU-T Standard)
|
|
Return Loss
|
≥60dB
|
|
Splicing Time
|
6 sec (SM G652 Quick mode )
|
|
Estimated Splice Loss
|
Available
|
|
Protection Sleeve Length
|
20~60 mm
|
|
Heating Time
|
16 sec (SM G652 250μm 40mm Sleeve,based on quick mode) adjustable
|
|
Protection Sleeve Length
|
20mm, 30mm, 40mm, 50mm, 60mm
|
|
Heat Programs
|
Max 32 modes
|
|
Battery Capacity
|
7800mAh Battery Capacity, Typical 450 Cycles (Splice&Heat) per Charge
|
|
Electrode Life
|
5000 arcs, can be extended by using an electrode grinder
|
|
Auto-start
|
Splice / Heating
|
|
Automatic ARC Identification
|
Automatic arc calibration by air pressure and temperature
|
|
Results Storage
|
The last 10,000 splice records and 2,000 result images
|
|
Tension Test
|
1.96~2.25N
|
|
Operating Condition
|
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
|
|
Display
|
4.3-inch color LCD Touch screen
|
|
Fiber Magnification
|
X, Y, XY, X/Y : 320X Magnification
|
|
Power Supply
|
AC Input 100-240V, DC Input 9-14V
|
|
Terminal
|
USB2.0
|
|
Weight
|
1.72kg without battery / 2.25kg with battery
|
|
Size
|
158H x 132W x 157D mm (including rubber bumper)
|
Product Documentation
Please contact us for more detailed information.
