Overview

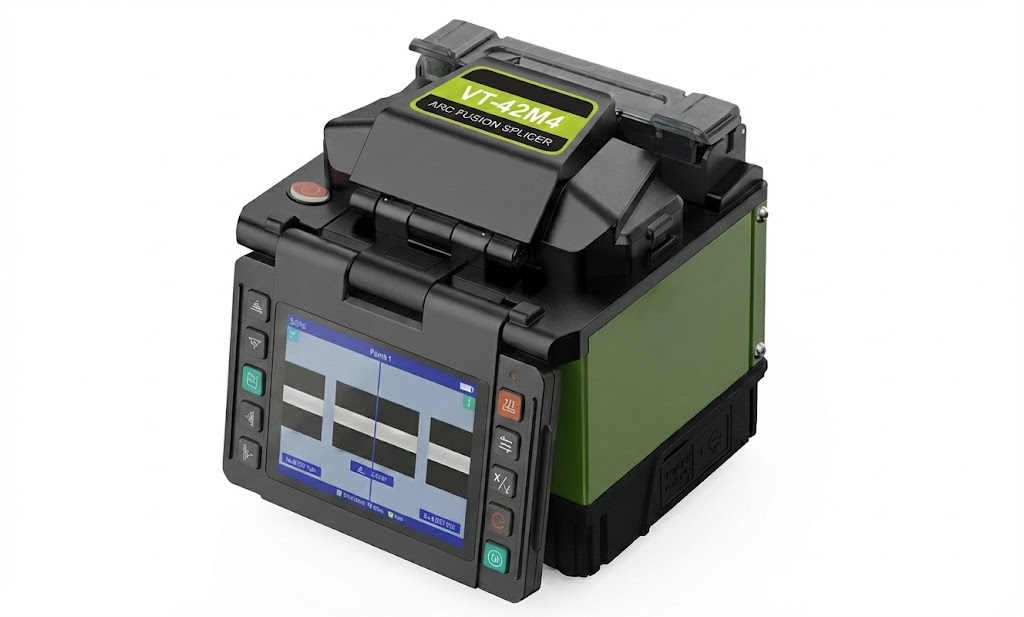

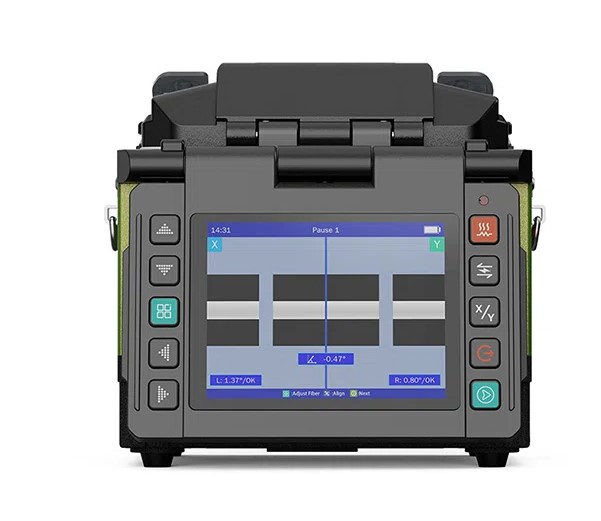

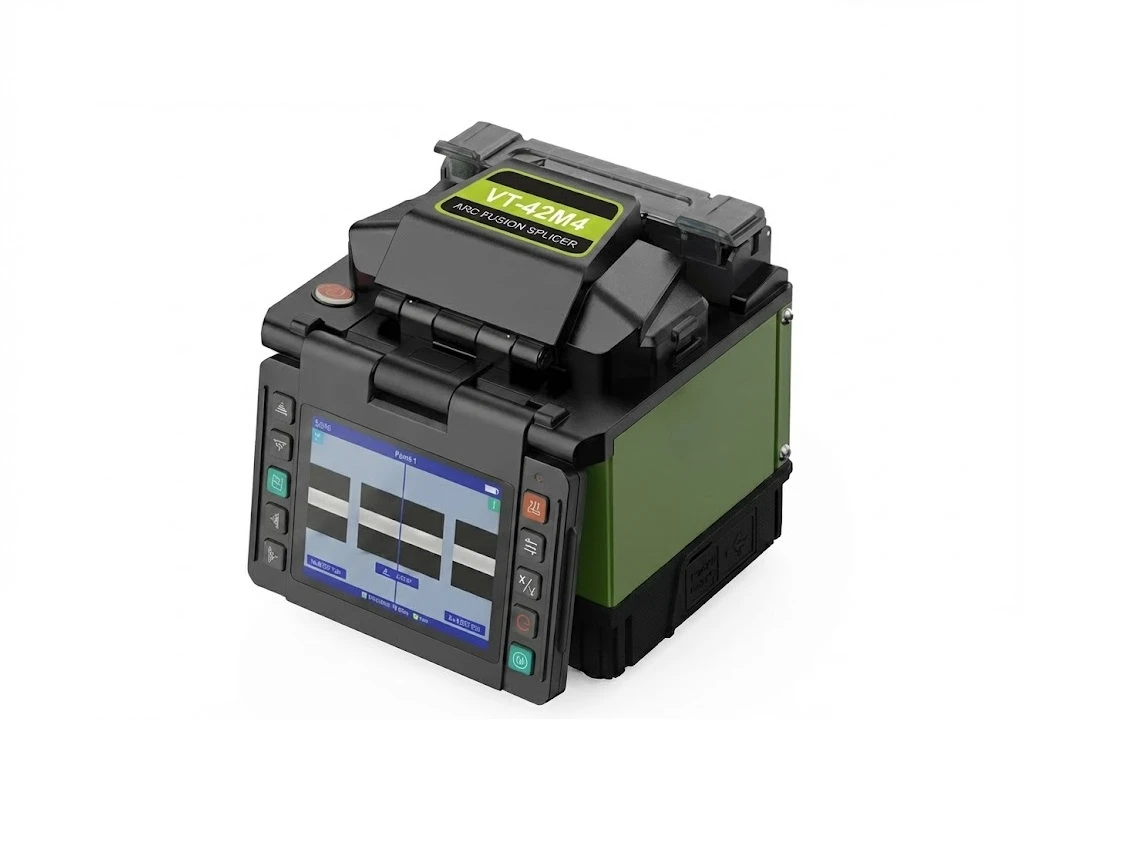

The VT-42M4 mini fusion splicer is designed to be Light weight & Compact and is Suitable for working at height , with a working platform design specifically for aerial work. The machine is also suitable for conventional ground work in any environment. It features Automatic splicing & automatic heating and an innovative design that requires no tools to replace electrodes , which can be replaced by screwing it gently
Feature
- Light weight & Compact.
- Fast-splicing 8s (SM Quick mode: 8 sec).
- Fast-heating 18s (Quick mode 18 sec).
- Electrode life around 5000 times (replaceable).
- Innovatively no need tools to replace electrodes.
- Supports 120 times of splicing + heating when fully charged (4000mAh Battery Capacity).
- Special 3-in-1 fiber holder.
- Durable ceramic fiber pressure heads.
- Mirror design makes uniform light path.
- Automatic welding heating.
Specifications
|
Items
|
Specifications
|
|
Model
|
VT-42M4
|
|
Splice Method
|
Active Clad-Alignment
|
|
Applicable Fibers
|
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
|
|
Compatible Fiber/Cable
|
0.25~3.0 mm / Rubber-insulated fiber cable
|
|
Fiber Holder
|
Replaceable
|
|
Fiber Diameter
|
Cladding:80-150µm, Coating: 100-1000µm
|
|
Fiber Cleave Length
|
8~16 mm
|
|
Splice Mode
|
Max 128 modes
|
|
Typical Splice Loss
|
SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB
|
|
Return Loss
|
>>60dB
|
|
Splicing Time
|
SM Quick mode : 8 sec / SM Average: 10 Sec
|
|
Estimated Splice Loss
|
Available
|
|
Protection Sleeve Length
|
20mm, 30mm, 40mm, 50mm, 60mm
|
|
Heating Time
|
Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable
|
|
Heat Programs
|
Max 32 modes
|
|
Battery Capacity
|
4000mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge
|
|
Electrode Life
|
5000 arcs, can be extended by using an electrode grinder
|
|
Auto-start
|
Splice / Heating
|
|
Automatic ARC Identification
|
Automatic arc calibration by air pressure and temperature
|
|
Results Storage
|
The last 10,000 splice records and 2,000 result images
|
|
Tension Test
|
1.96~2.25N
|
|
Operating Condition
|
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
|
|
Display
|
3.5” color high resolution (800 x 480) display
|
|
Fiber Magnification
|
X, Y, XY, X/Y : 320X Magnification
|
|
Power Supply
|
AC Input 100-240V, DC Input 9-14V
|
|
Terminal
|
USB2.0
|
|
Weight
|
1.06kg without battery / 1.35kg with battery
|
|
Size
|
130H x 113W x 126D mm
|
