Overview

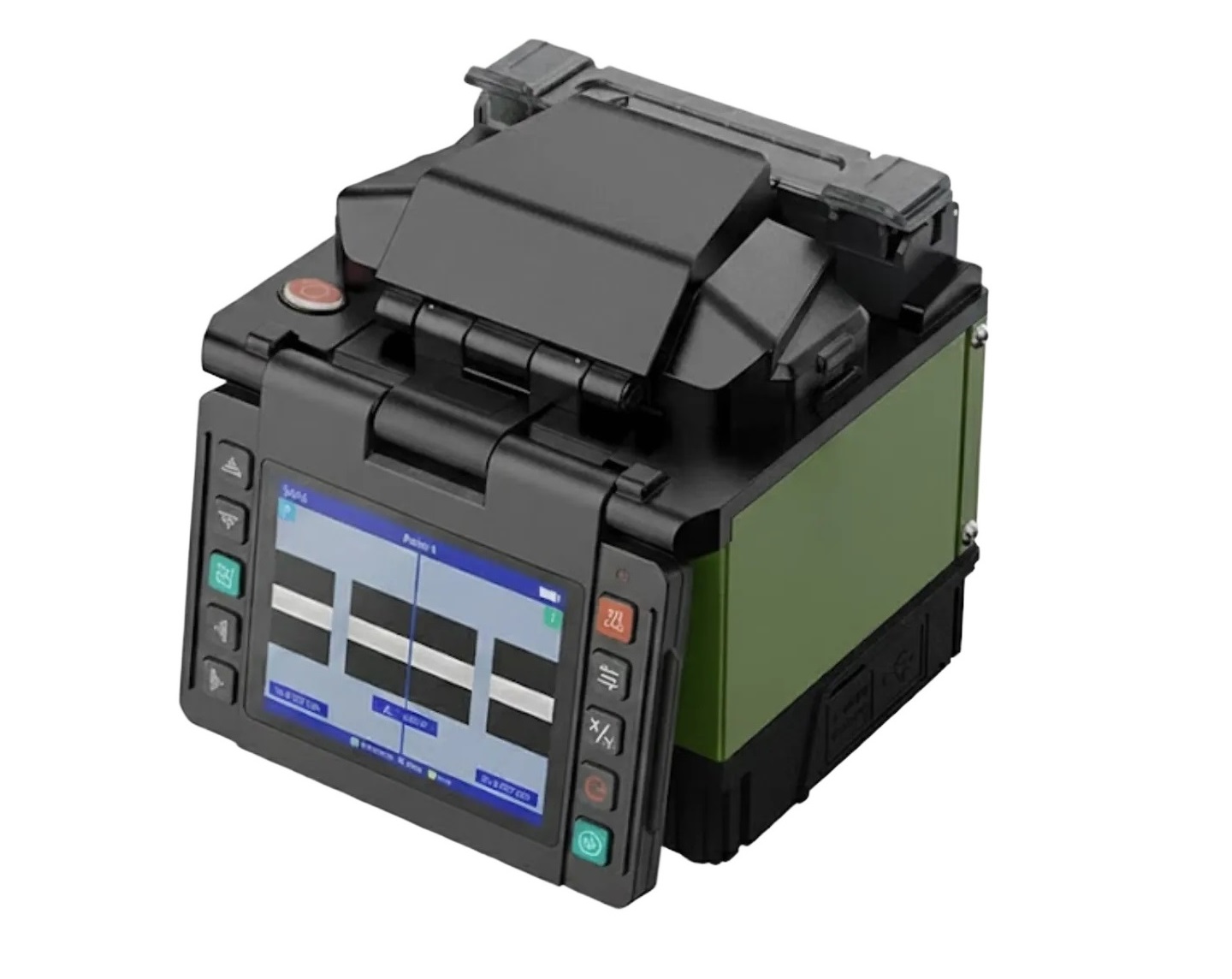

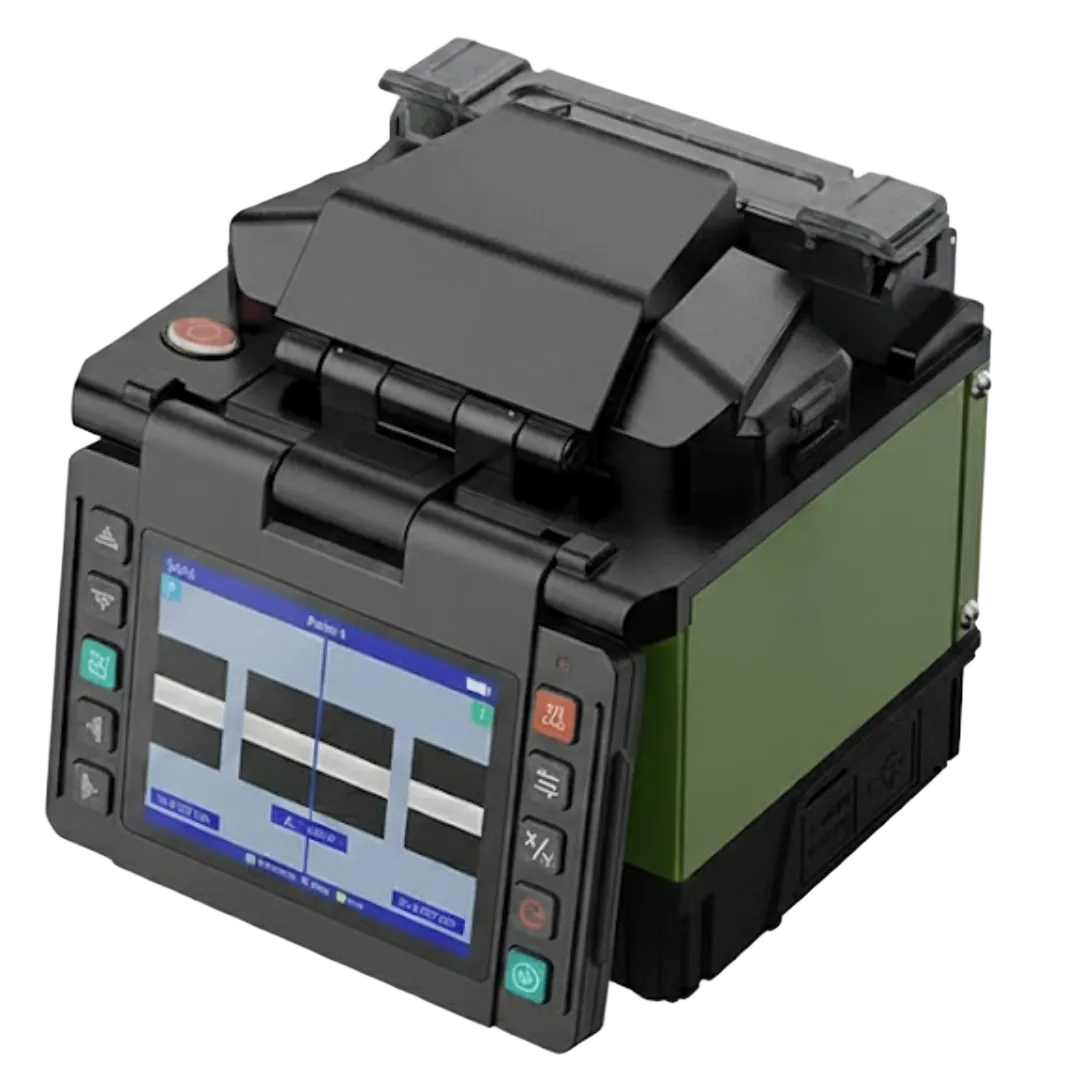

VT-42CM is a compact but powerful mini automatic fiber optic fusion splicer, suitable for many types of optical fibers such as SM, MM, DS, NZ-DS (G.655), EDF and other special fibers.
- PAS alignment technology: Image analysis system from two cameras, ensuring low loss and stable quality of the weld.
- Working in harsh environments: Shockproof, dustproof and waterproof, ensuring weld quality at altitudes up to 5,500m.
- High performance: Large capacity battery allows for more than 180 times of continuous welding and heating, ideal for field work.
Feature
Superior Speed
Welding Time: 7 sec
Heat-up Time: 13 sec
Multi-function Cable Clamp: 2 modes (regular cable & subscriber cable)
Camera System
2 X/Y cameras with 380x magnification
Multi-mode X, Y, XY display
Precise double V-Groove
Powerful Power
4000mAh Li-ion battery for ~180 welds
Quick charge via DC port
Multi-voltage adapter (85-260V)
High Automation
4 auto-alignment motors
Fully automatic operation mode
Analysis pause function
Industrial Durability
Electrode life span 5,500 times
Shock, dust, water resistant
Operates at -25°C to 50°C
Smart Storage
22,000 weld results
22,000 samples thermal
2,000 weld images
USB connection for data export
Specifications
|
MODEL
|
VT-42CM
|
|
Dimensions
|
120mm (Length) * 122mm (Width) * 120mm (Height)
|
|
Weight
|
~1.32kg (including battery)
|
|
Language
|
English/ Vietnamese/ …..
|
|
Fiber Count
|
Single Fiber
|
|
Applicable Fiber Types
|
SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
|
|
Compatible Fiber/Cable Types
|
SM, MM, DS, NZDS, G655, G657 and others
|
|
Cleave Length
|
Coating Diameter: 100μm ~ 3 mm / Length: 5~16 mm
|
|
Cladding Diameter
|
80~150 μm
|
|
Splicing Modes
|
80 splicing modes
|
|
Heating Modes
|
20 heating modes
|
|
Typical Splice Loss
|
SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard)
|
|
Return Loss
|
≥60dB
|
|
Splicing Time
|
~7 seconds
|
|
Estimated Splice Loss
|
Supported
|
|
Protection Sleeve Length
|
20~60 mm
|
|
Heating Time
|
13 seconds standard
|
|
Result Storage
|
22,000 splice results, 22,000 heat shrink results, 2,000 splice images
|
|
Fiber Pull Test
|
2N
|
|
Operating Conditions
|
Operating Altitude: 0~5500m above sea level, Humidity 0~95%, Temperature -25~50°C, Max Wind Speed 15m/s
|
|
Storage Conditions
|
Humidity 0~95%, Temperature -40~80°C
|
|
Display
|
4.3” High-Resolution Color Display + Touch Screen
|
|
Fiber Magnification
|
X, Y, XY, X/Y : 380 times
|
|
Power Supply
|
Internal Li-Battery 4000mAh, DC adaptor 15V (AC Input Voltage 85~260V)
|
|
Number of Splices/Heats with Battery
|
180 times (splice + heat)
|
|
Operation Method
|
Touch + Button
|
|
Calibration
|
ARC Calibration
|
|
Electrode Life
|
5500 arcs
|
|
Connectivity
|
USB
|
Product Documentation
Please contact us for more detailed information.
